Details

Overview

• 1945 Star Shipyard built (rebuilt in 1991)
• Location: North Coast, BC
• 52' x 14'6" x 7'
• Survey: 2012

Power

• Engine: 285 hp 671 Detroit Diesel Grey Marine
• Engine hours: 1200, rebuilt engine in 2014
• Reduction gear: Twin disc 509
• Ratio: 2.5 to 1
• Shaft: Stainless steel, 2.75" diameter
• Propeller: Bronze, 3 blade
• Fuel tanks: 2, integral, 800 gallons total
• Engine gauges
• Cooling: 3 rows of cooling pipes
• Auxiliary engine: 12Kw Northern Lights generator
• Hydraulic pump: Constant volume pump attached to camshaft with sensor lines for anchor, boom and mast winches, side hauler, aluminum drum and A-frame
• Bilge pumps: 12 volt pumps in engine room shaft log and Lazarette pacer pump (2 inch) running off generator to pump out forward section in engine room and shaft log
• Batteries: 2 sets of 12 volt batteries for general use of vessel and 2 x 12 volt 4D batteries combined for a 24 volt starting system

Accommodations

• Sleeps: 2 bunks in each stateroom with 2 staterooms up top and 4 bunks in the forward below section main table converts into a double bed
• Stove: Dickinson Atlantic diesel stove and electric microwave plus a 2 burner electric
• Heaters: Electric heaters in each stateroom and below deck, Dickinson Newport diesel fireplace in the lower section
• Fridge: 10 cubic feet and 2 freezers in the hold
• Showers: In both heads - they are set up for showering (one topside and one in the crew section below)
• Hot water: Engine heated and 110 volt 20 gallon Seaward water heater
• Water tank: 200 gallons
• Desalinator: Make 6 to 8 gallons of fresh water per hour

Structural

• Hull: Wood
• Decks: Aluminum
• Main cabin and aft cabin: Aluminum
• Mast: Steel
• Boom: Aluminum
• A-Frame: Aluminum
• Holds: 3 holds that are fiberglass
• Anchor: Northhill
• Anchor winch: Rebuilt in 2015
• Winches: 1 vanging winch, 1 boom winch and 1 mast winch which are all Pullmaster - certified with a SWL of 1600 lbs
• Aluminum drum and A-frame: SWL of 1600 lbs hydraulically controlled with controls for A-frame located on drum - control of drum and A-frame can be done together
• Stabilizer poles and stabilizers: Aluminum

Electronics

• GPS: Furuno GPS31
• GPS for DSC radio: GPS/WAAS receiver
• VHF: Cobra DSC radio and Uniden 535 DSC

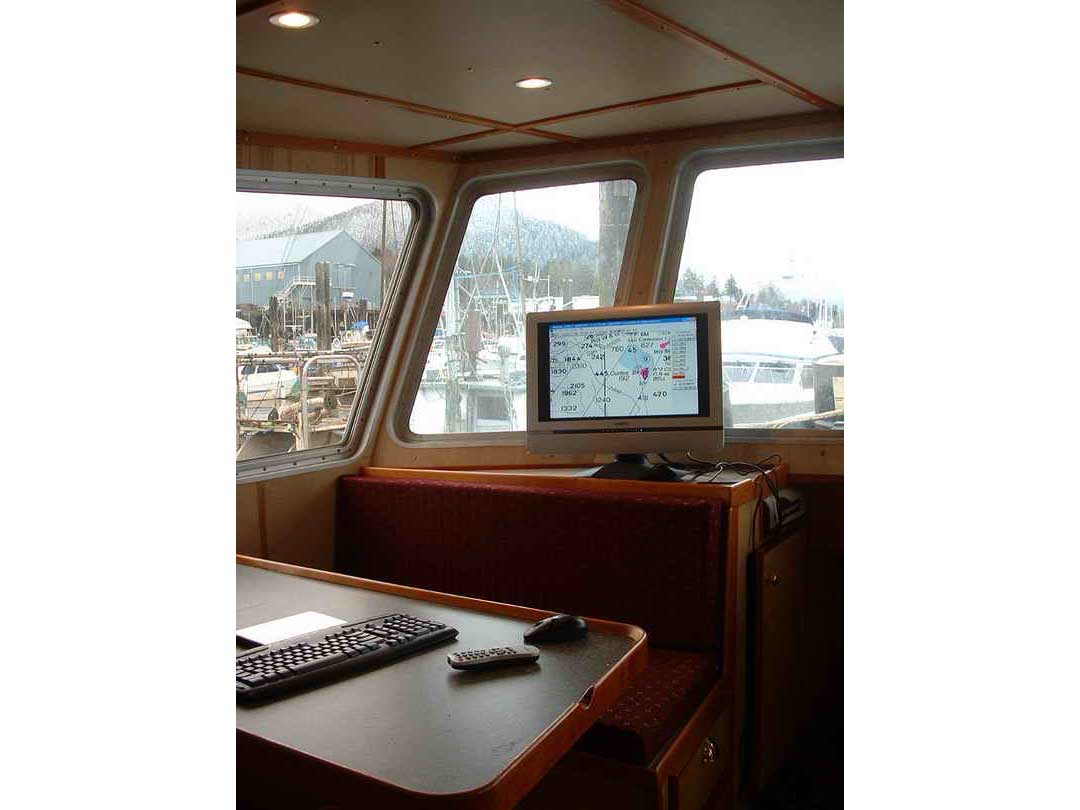

• Computer: PC with Navigation program
• Radar: JRC 2000
• Sounder: Furuno
• Autopilot: Comnav 1101
• Spotlight: Perko
• Compass: Swung in 2015
• Bowlights: LED MSeries 10 inch hybrid
• Controls: ZF Mathers MMC91100 actuator with 2 controls for 2 stations
