Viking Leader
 |
Viking LeaderStock # NA5746
Dimensions: 60' x 20'
Year: 1986
Model: Seiner

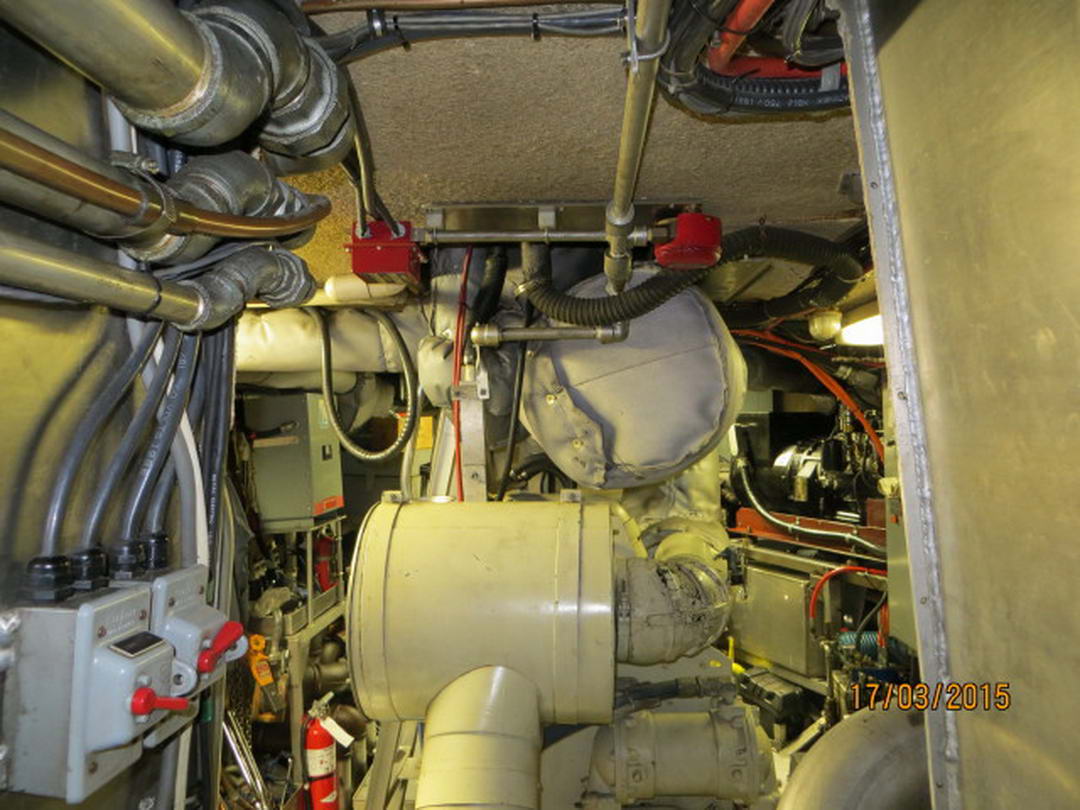

Engine: 530 hp Cummins K-19
Hull: Aluminum

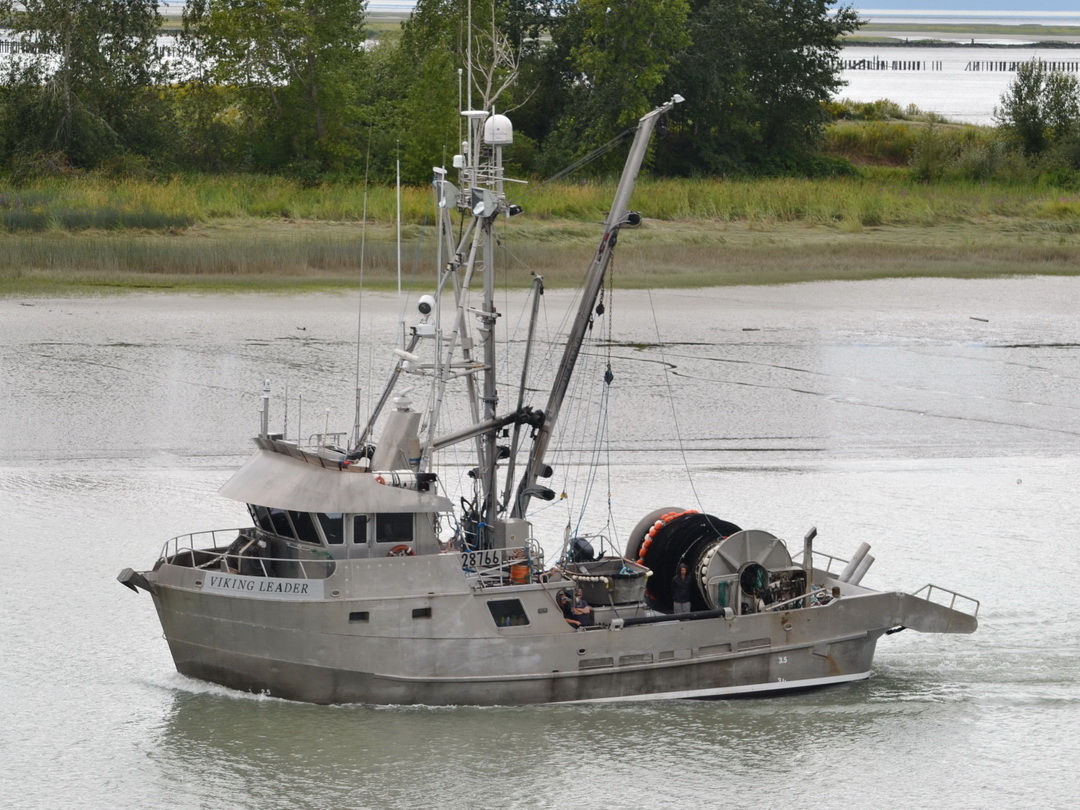

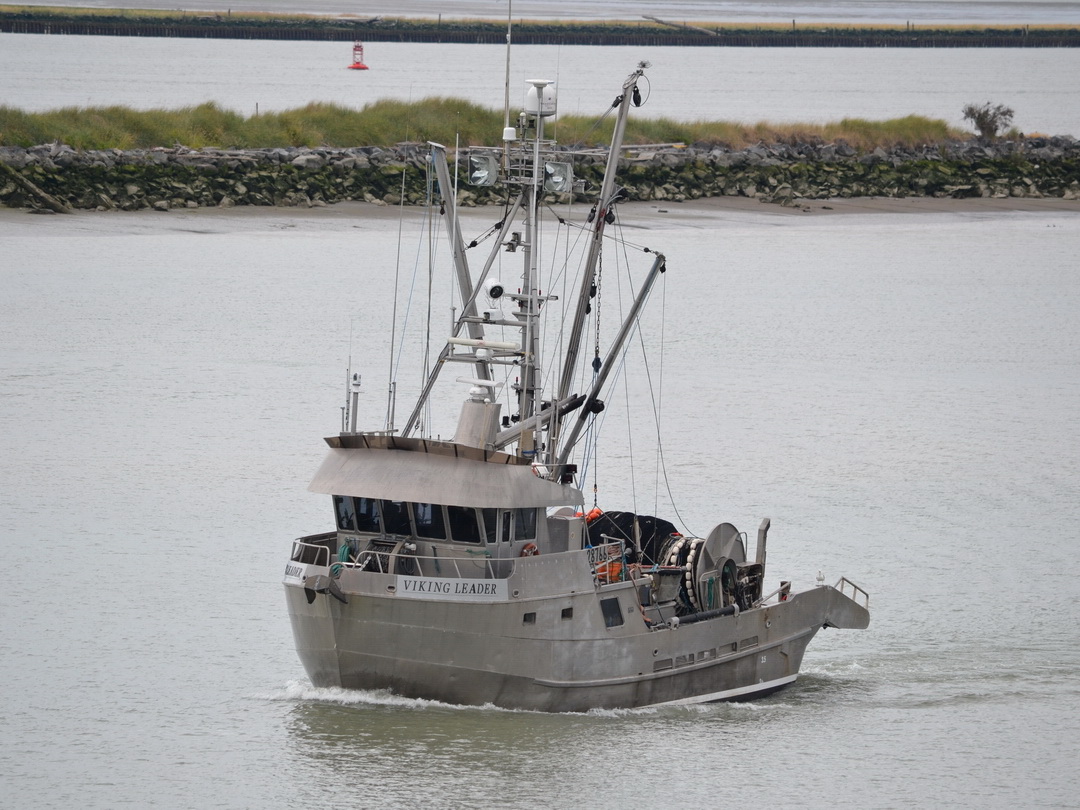

1986 Shore built aluminum seiner. 60' x 20' and can be cut to 58' with ease for Alaska limit.

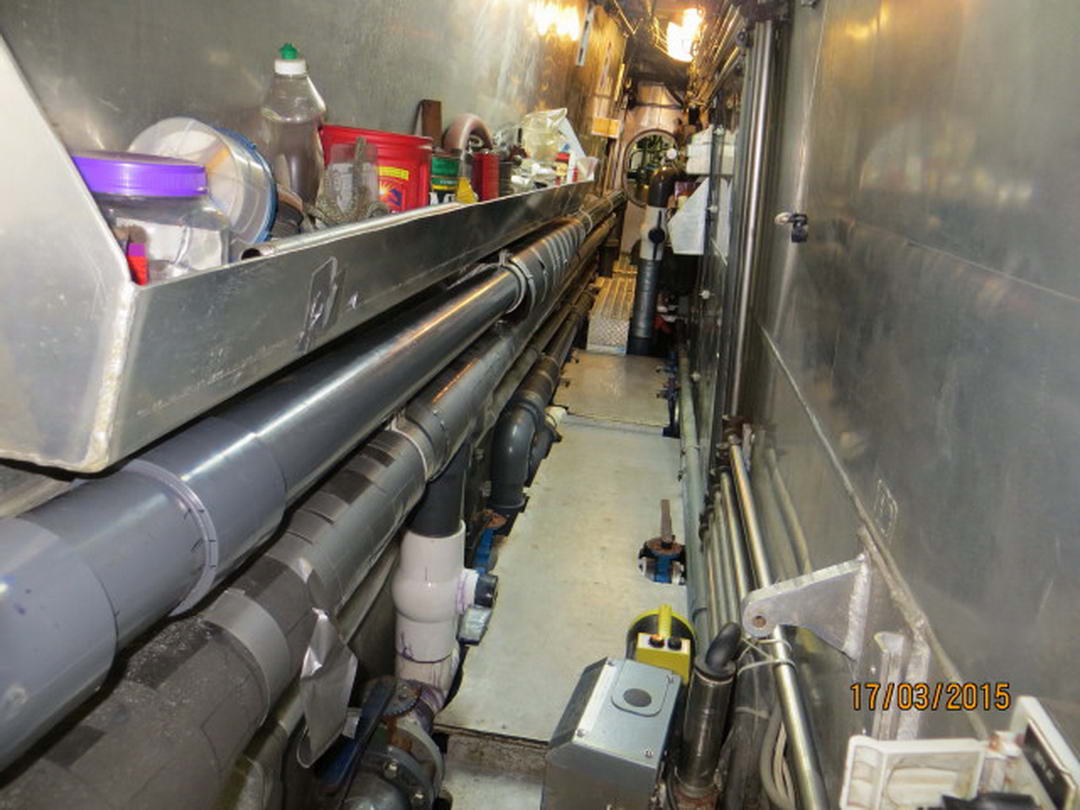

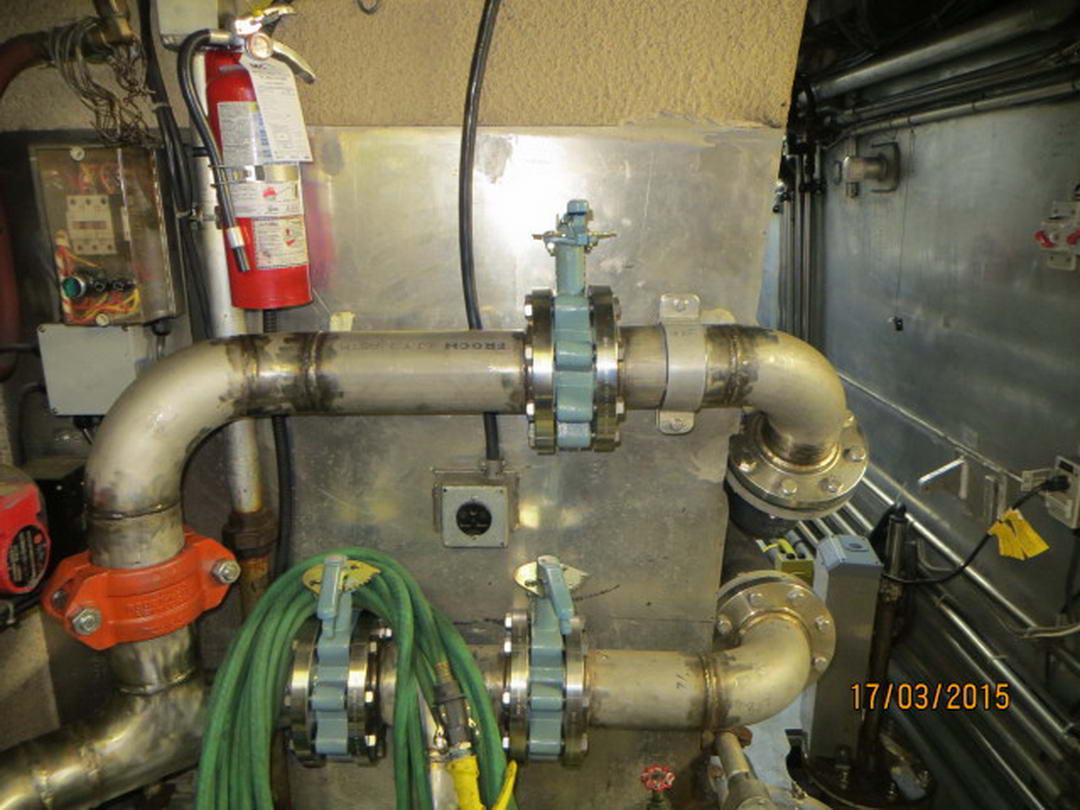

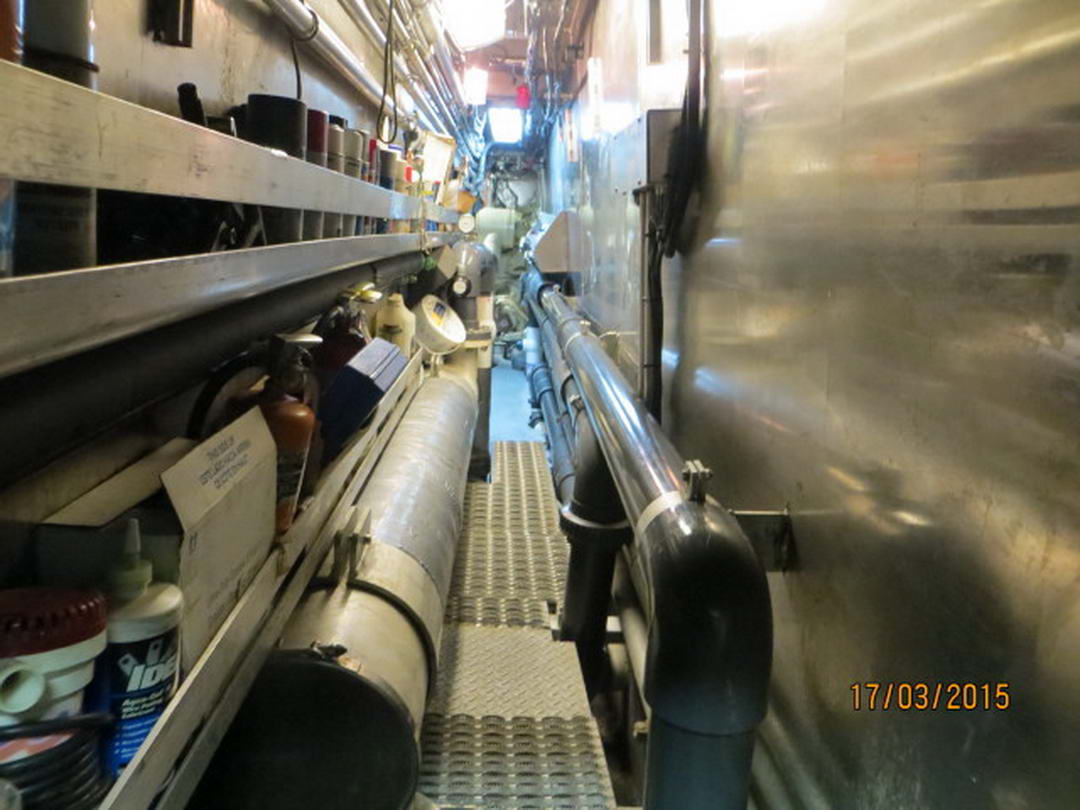

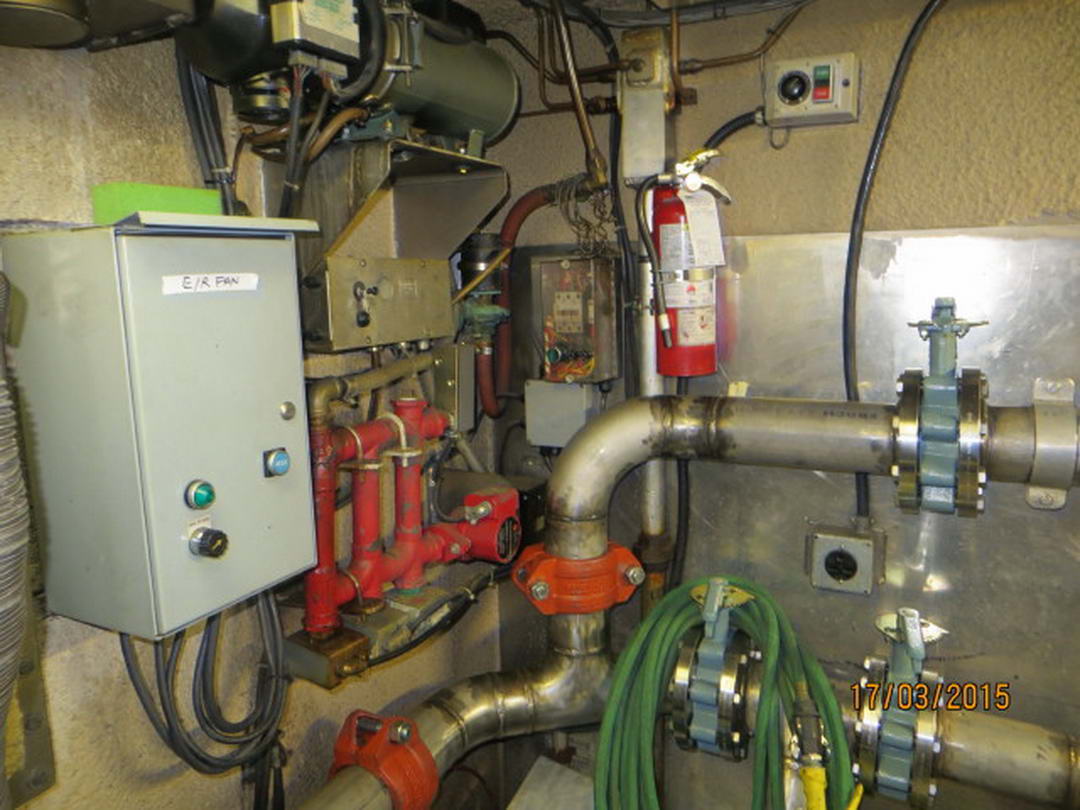

K-19 Cummins main and 3 x Isuzu auxiliaries for hydraulics, a 35kW genset and a 70kW genset. 60 ton RSW system. IMS titanium chiller and 4" stainless steel plumbing. Dead skiff and nets, sub pump and dewatering unit.
CSI new May 2022 - 2026. ABS Americas pre-approval for tonnage reduction done and ready for purchaser to complete the required and attached fish hold modification to get the certificate.
Details
Overview

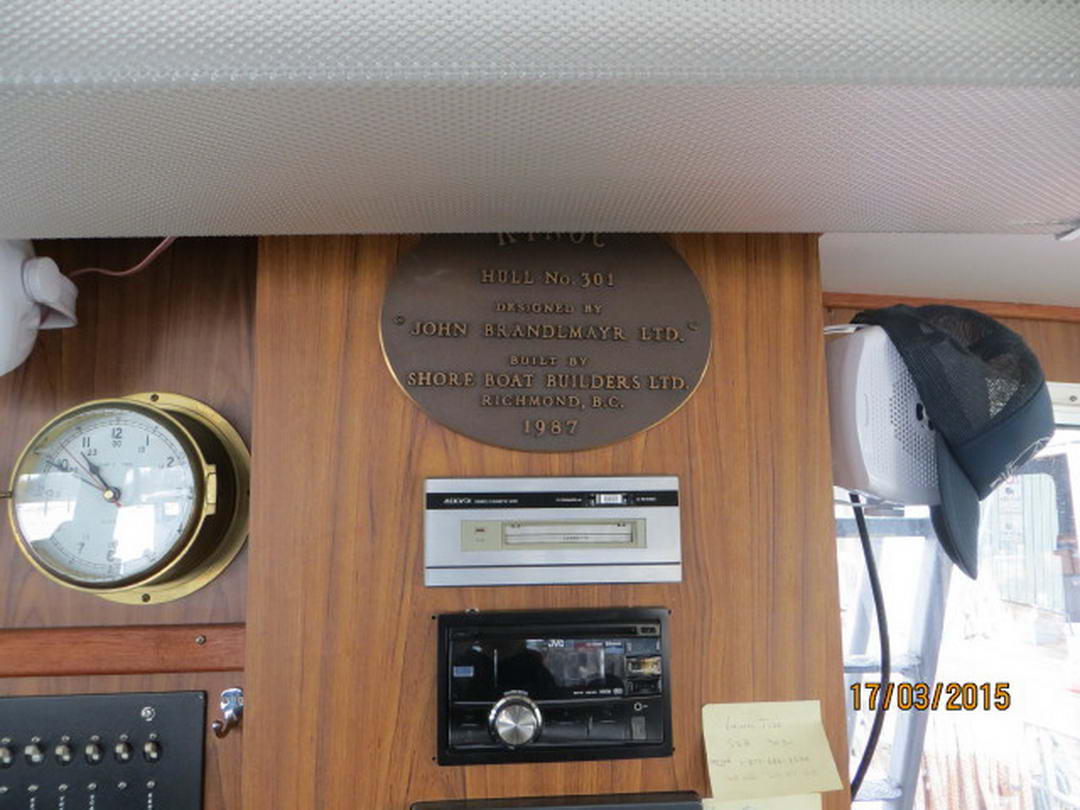

- Built by Shore Boat Builders in 1986
- Location: Lower Mainland, BC
- 60' x 20' x 8'4" with over 6' headroom
- Survey: June 2022
Power

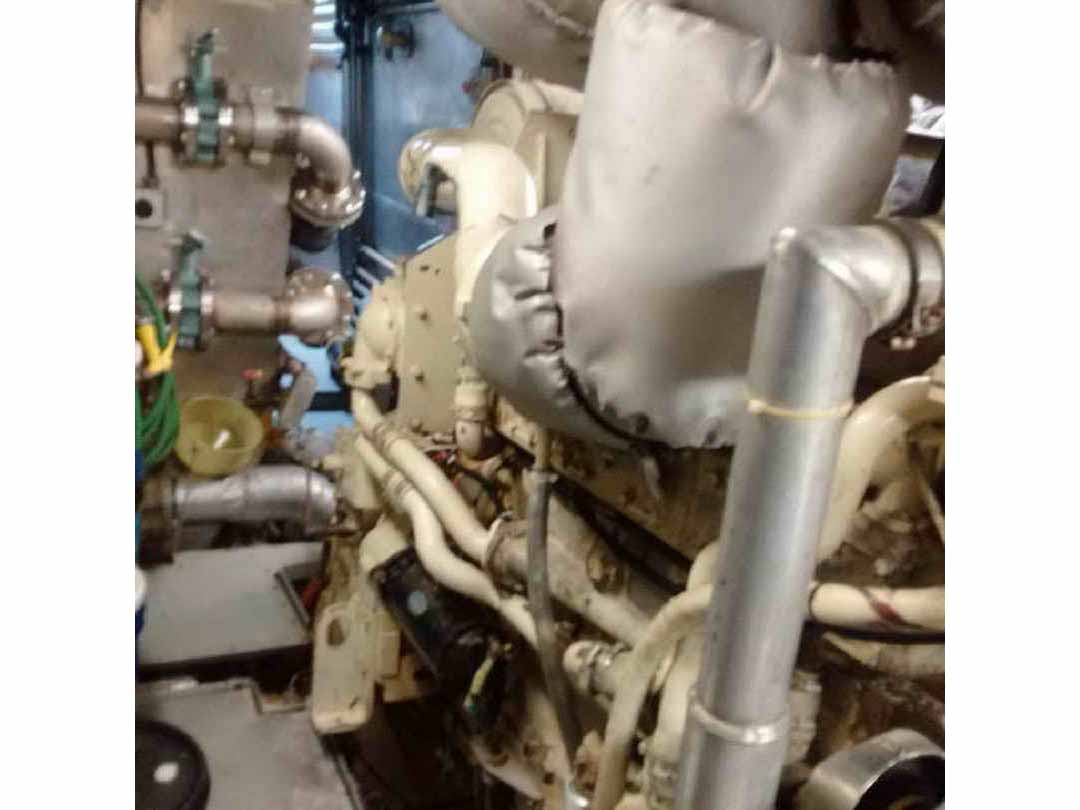

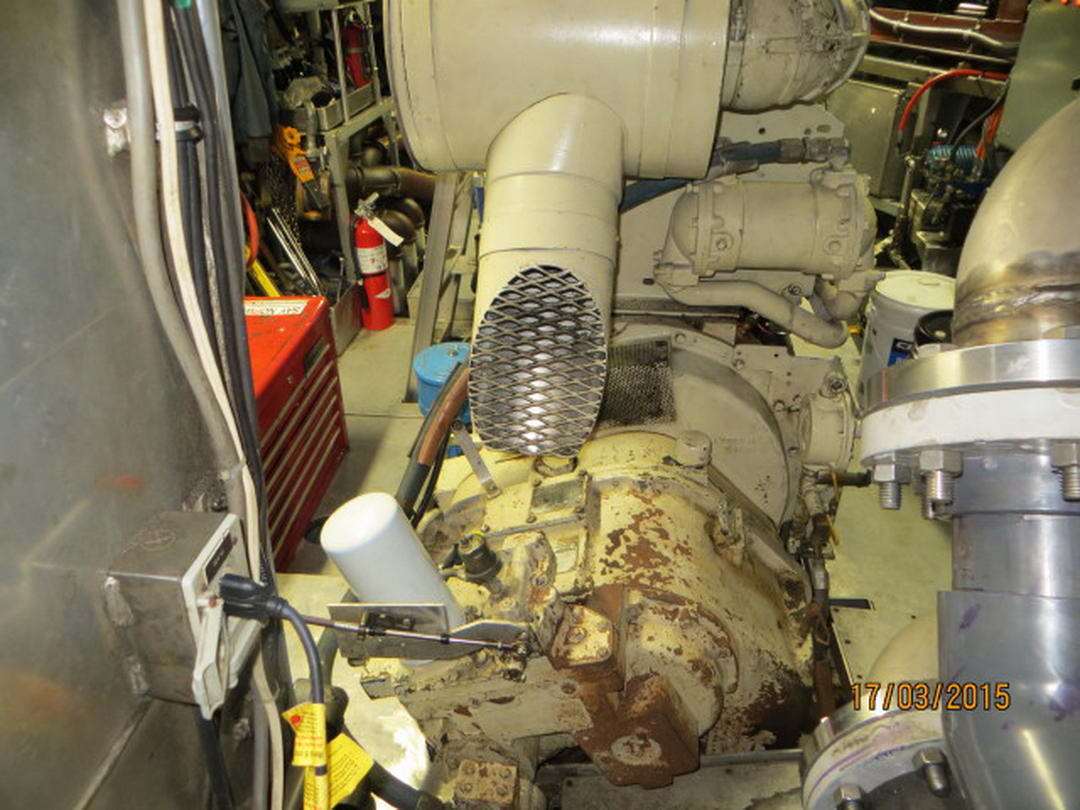

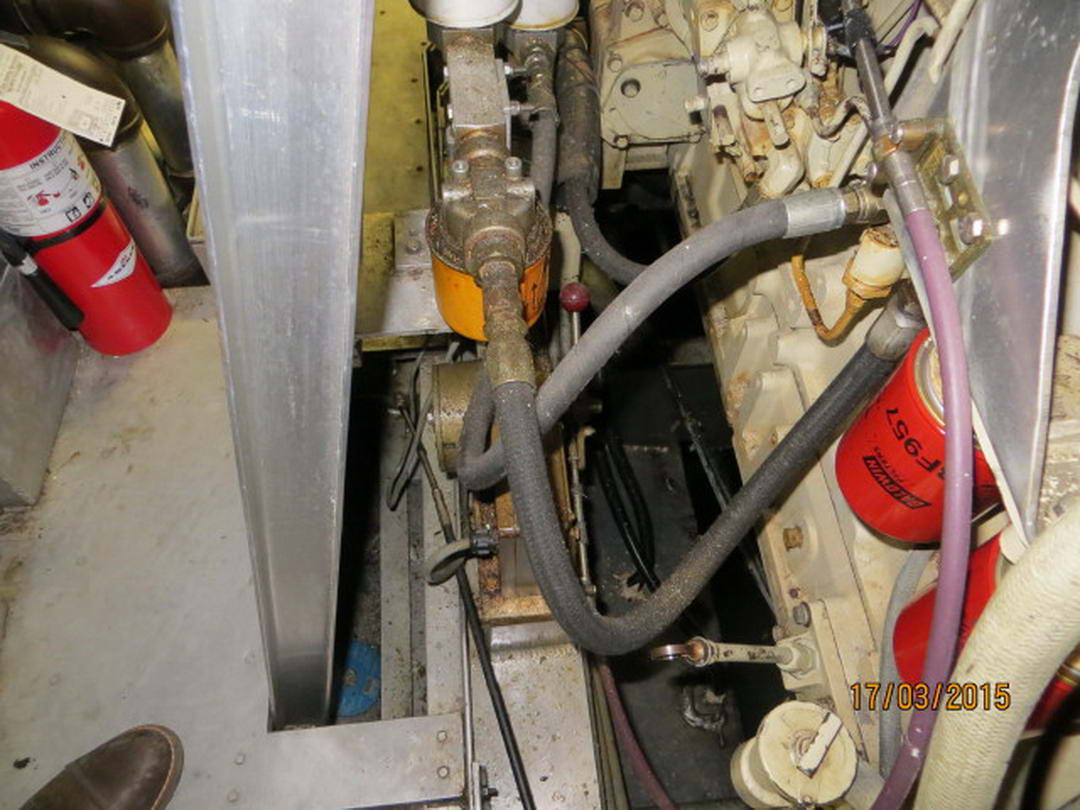

- Engine: 530 hp Cummins K-19
- Engine hours: 19,282

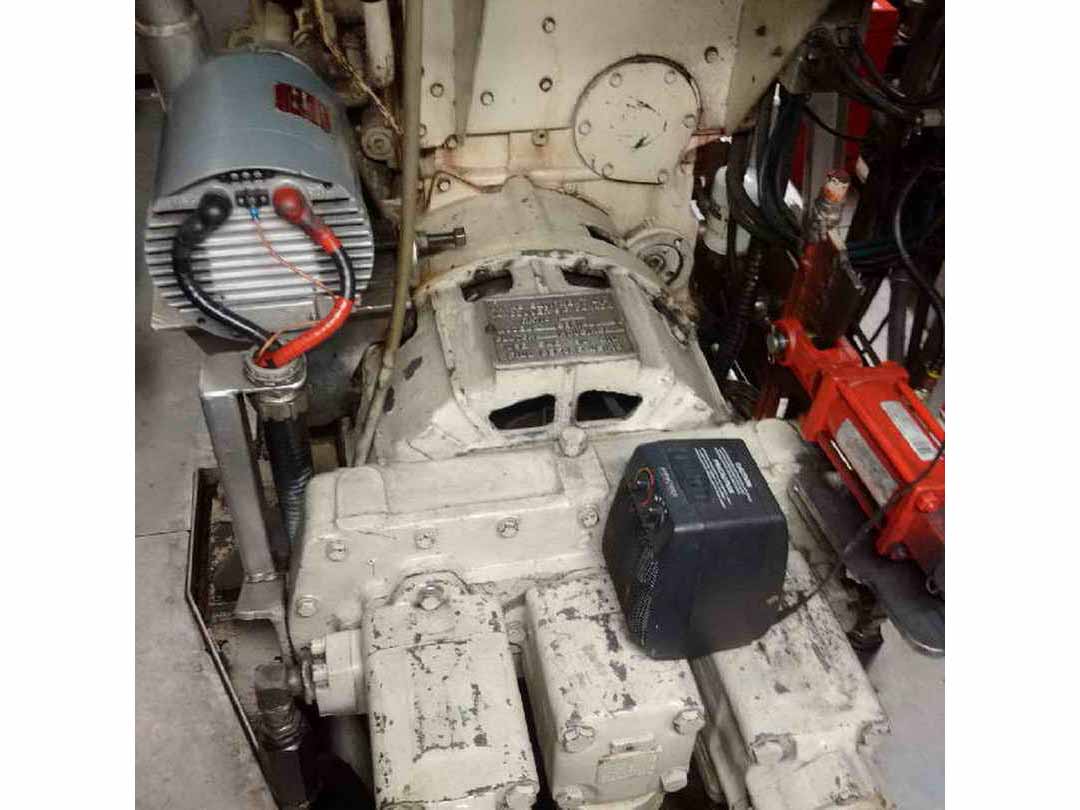

- Reduction gear: TD 518
- Shaft: 4" diameter, stainless steel
- Cruising/Full Speed: 9 knots/10 knots
- Fuel tanks: 4, aluminum

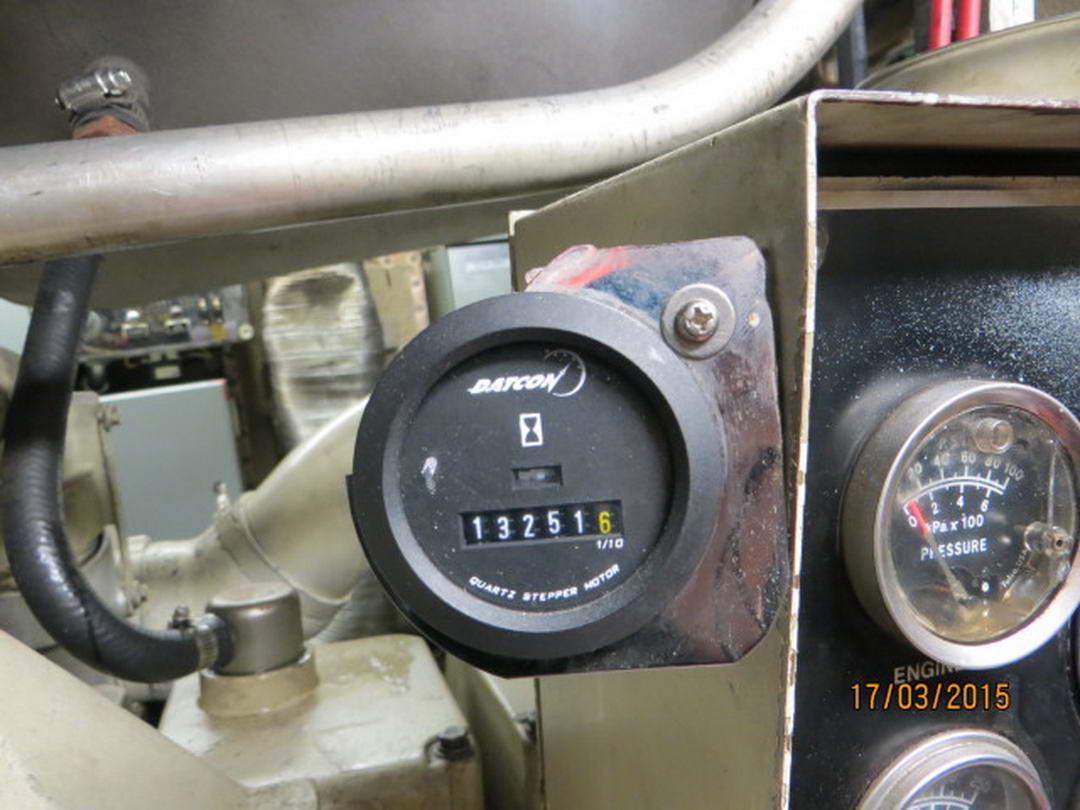

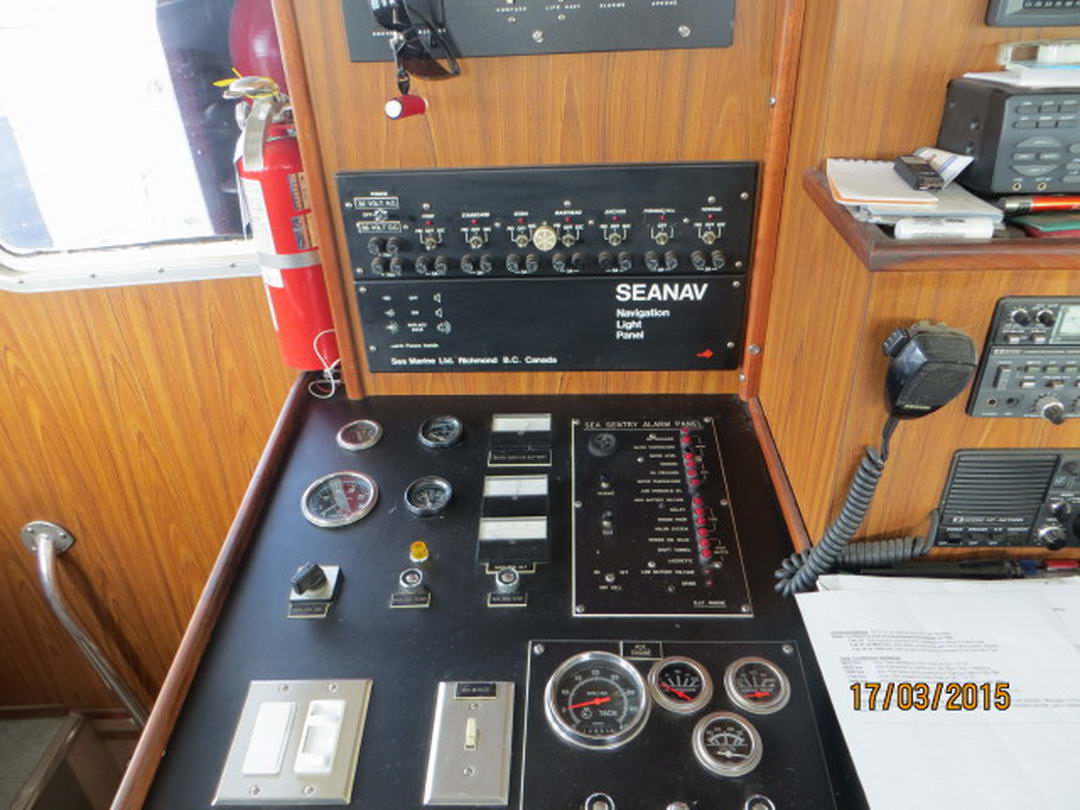

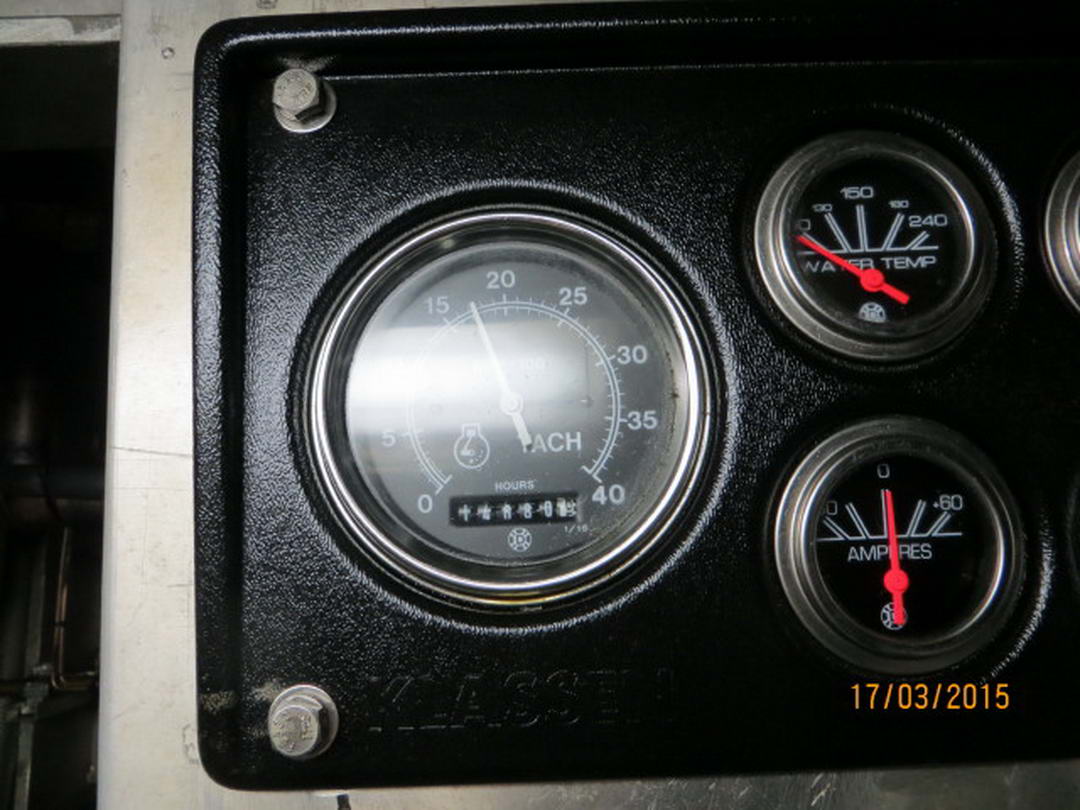

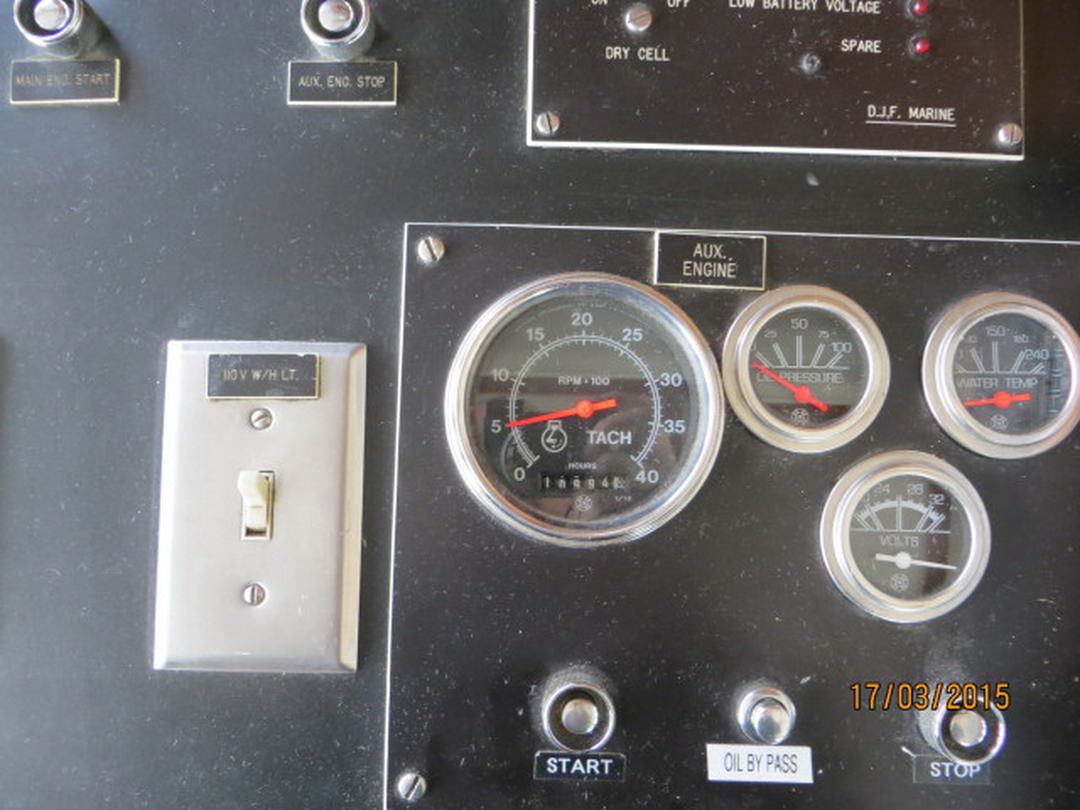

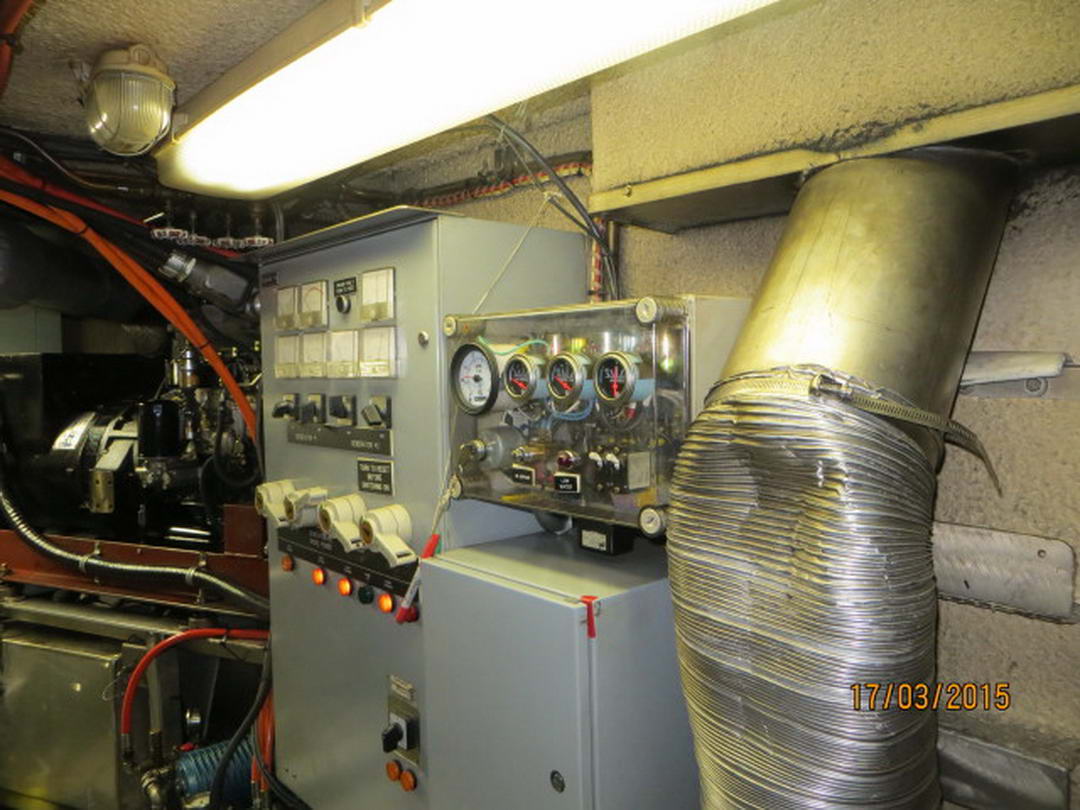

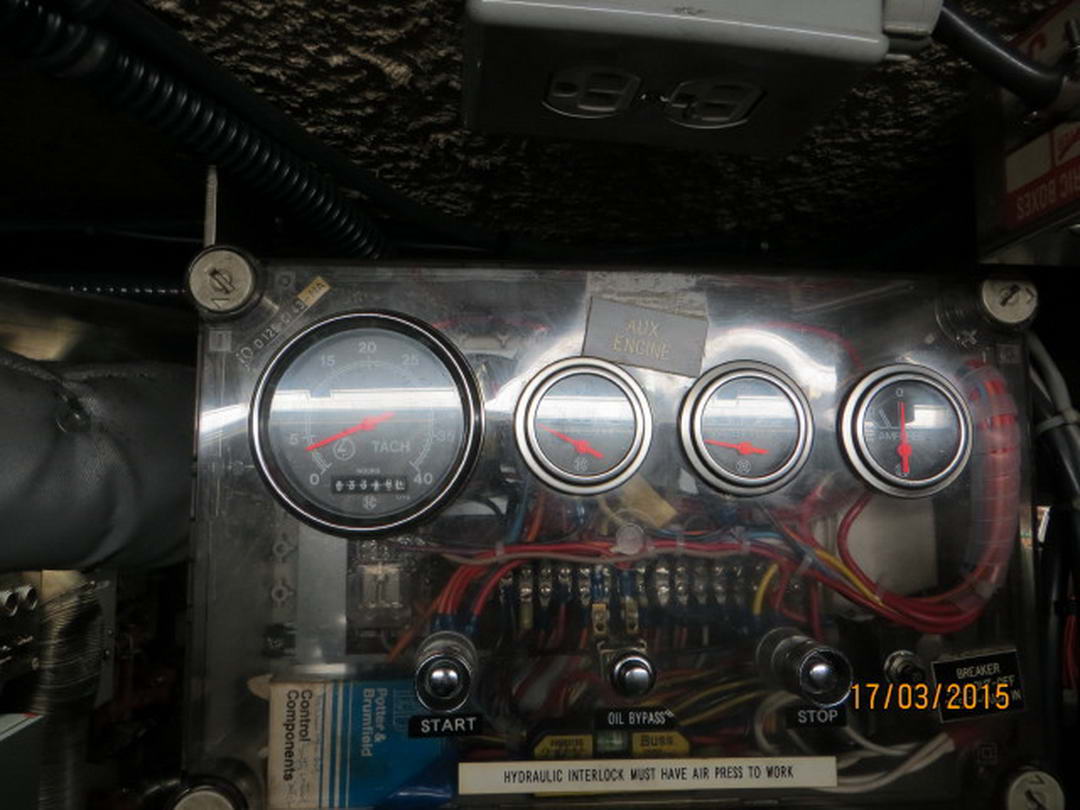

- Engine alarms and gauges
- Cooling: Integral

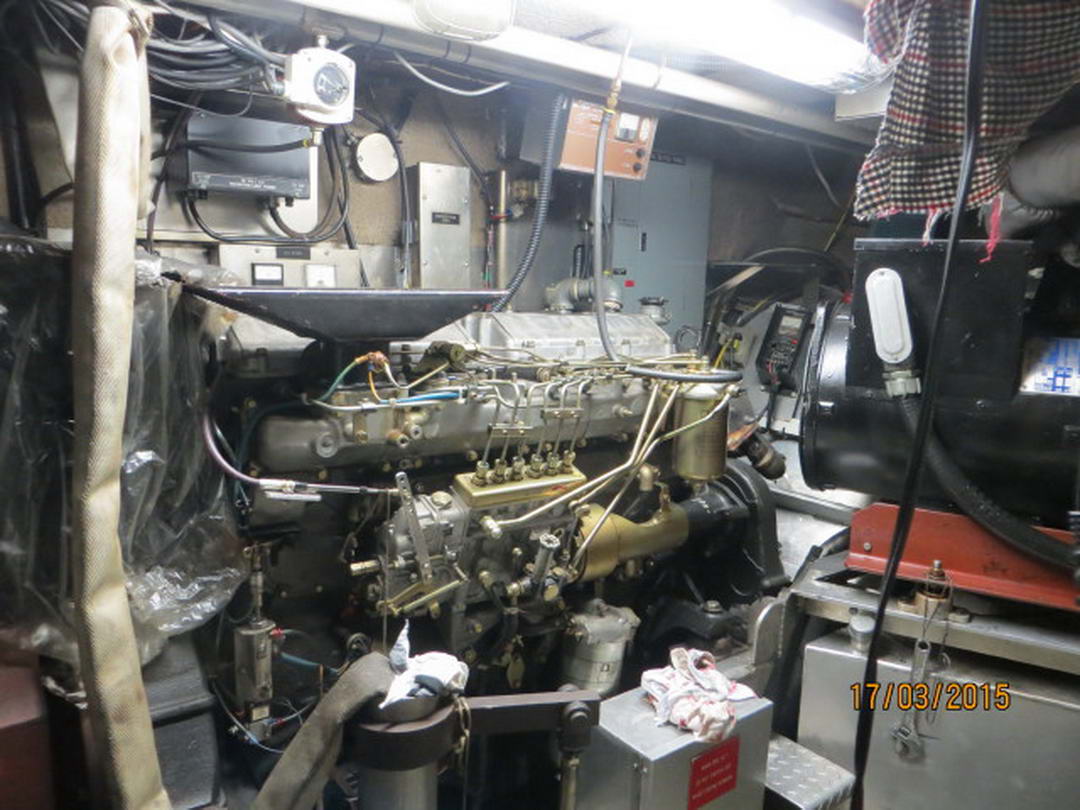

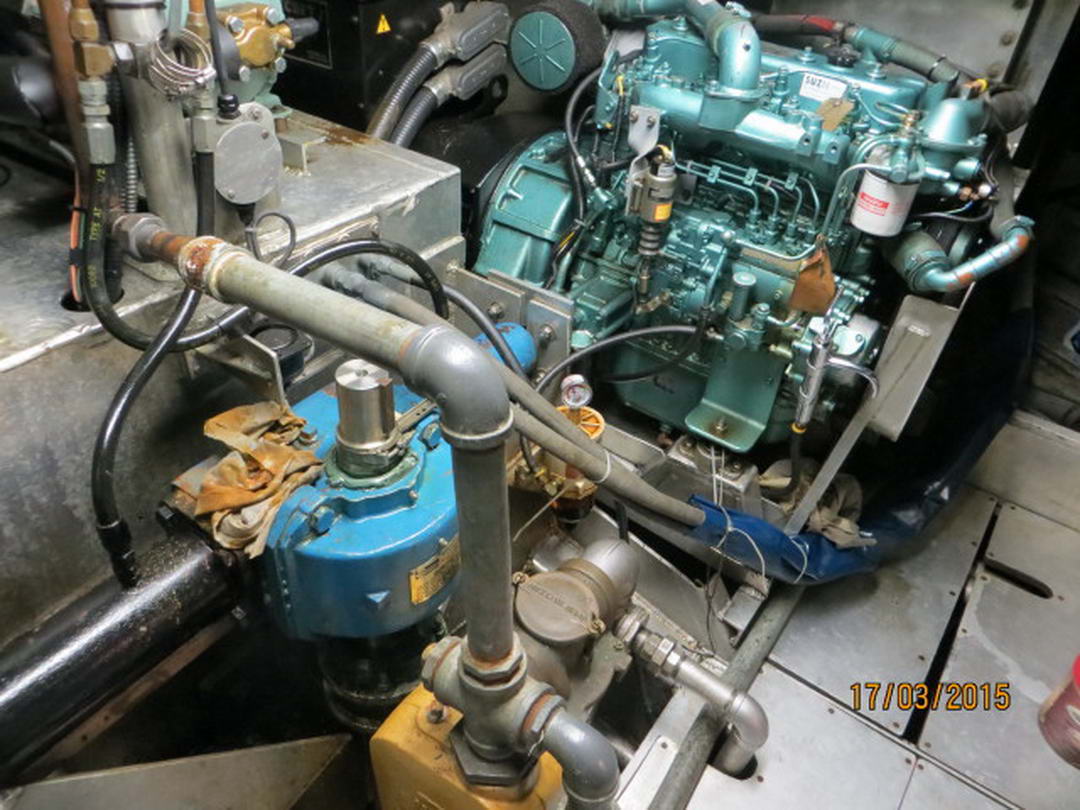

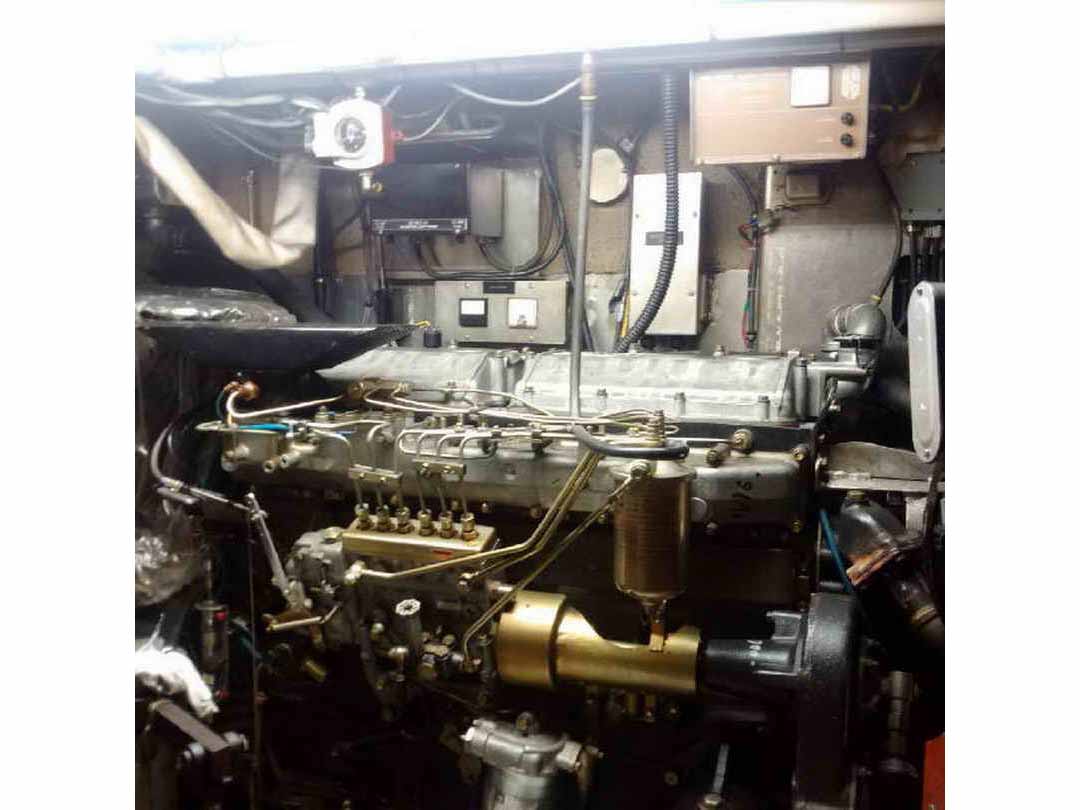

- Auxiliary engine: Isuzu 6RB1 for hydraulic with 3,389 hours

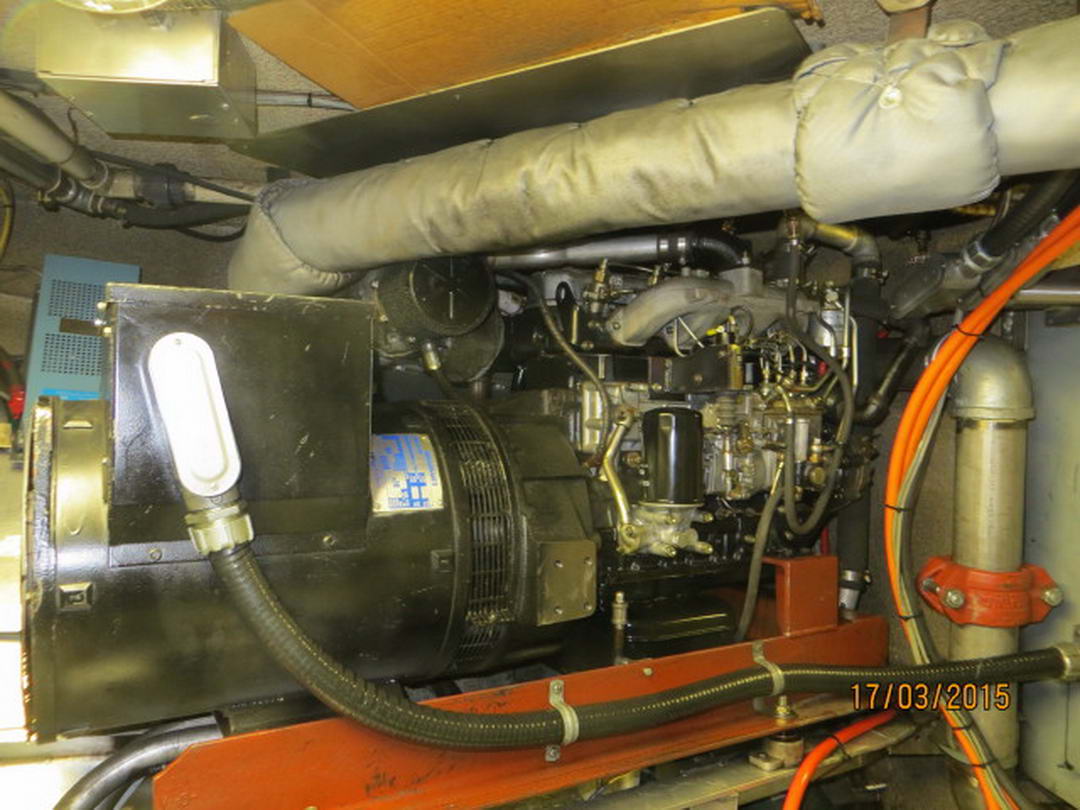

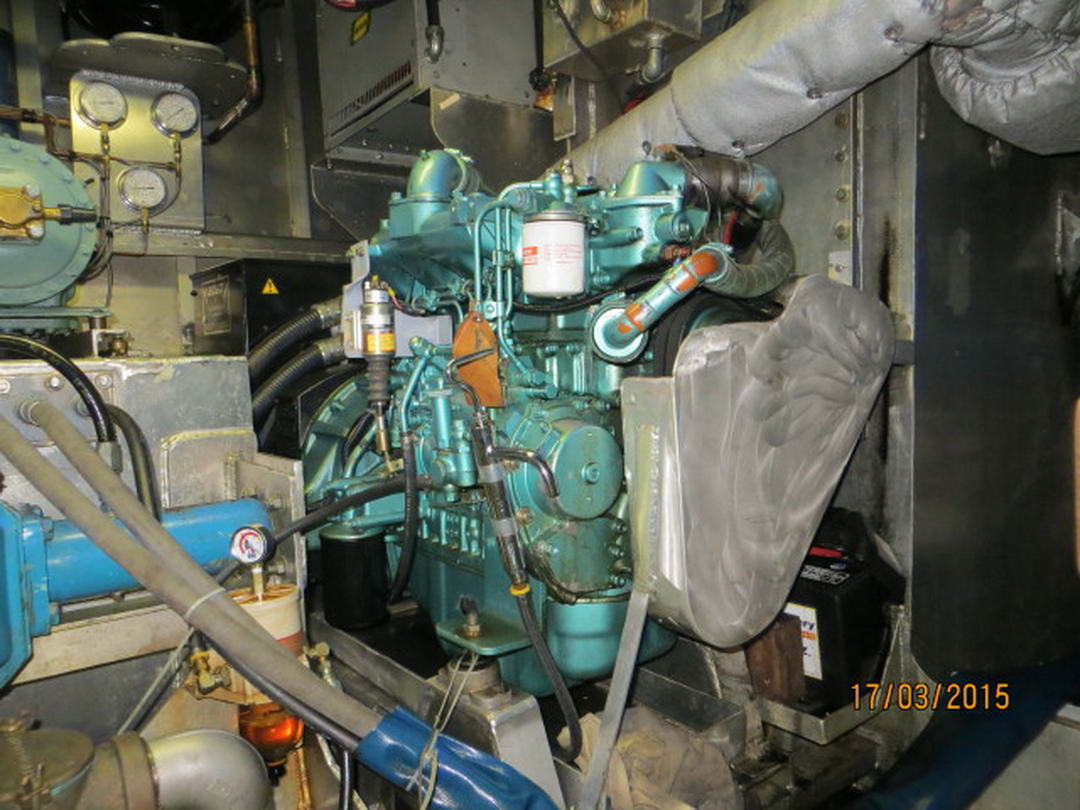

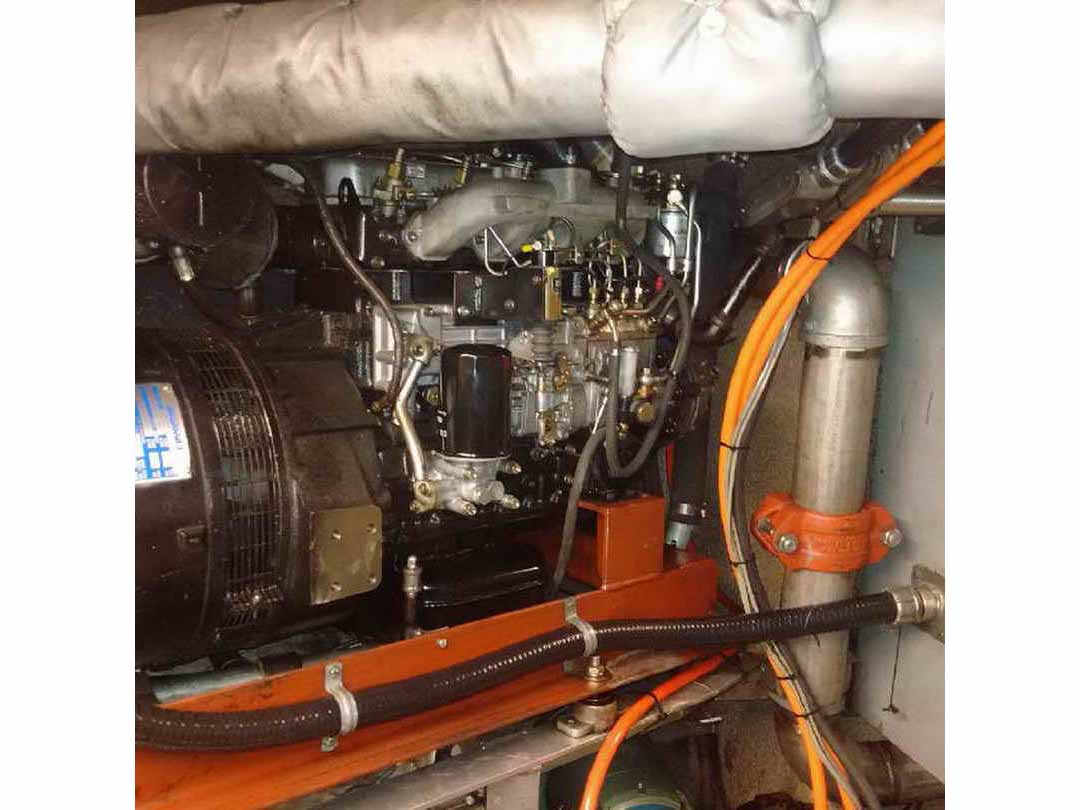

- Genset 1: Isuzu 4BD1 35kw with 6,755 hours
- Genset 2 (stern): Isuzu 4B61 70kw with 14,680 hours

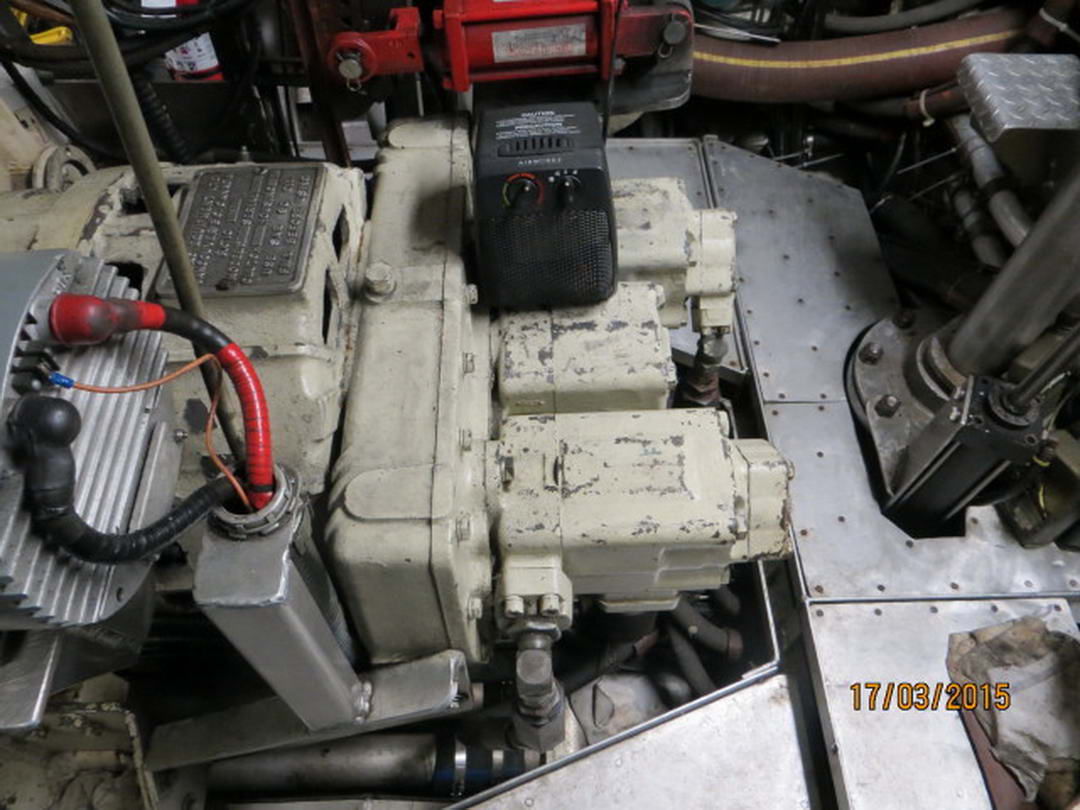

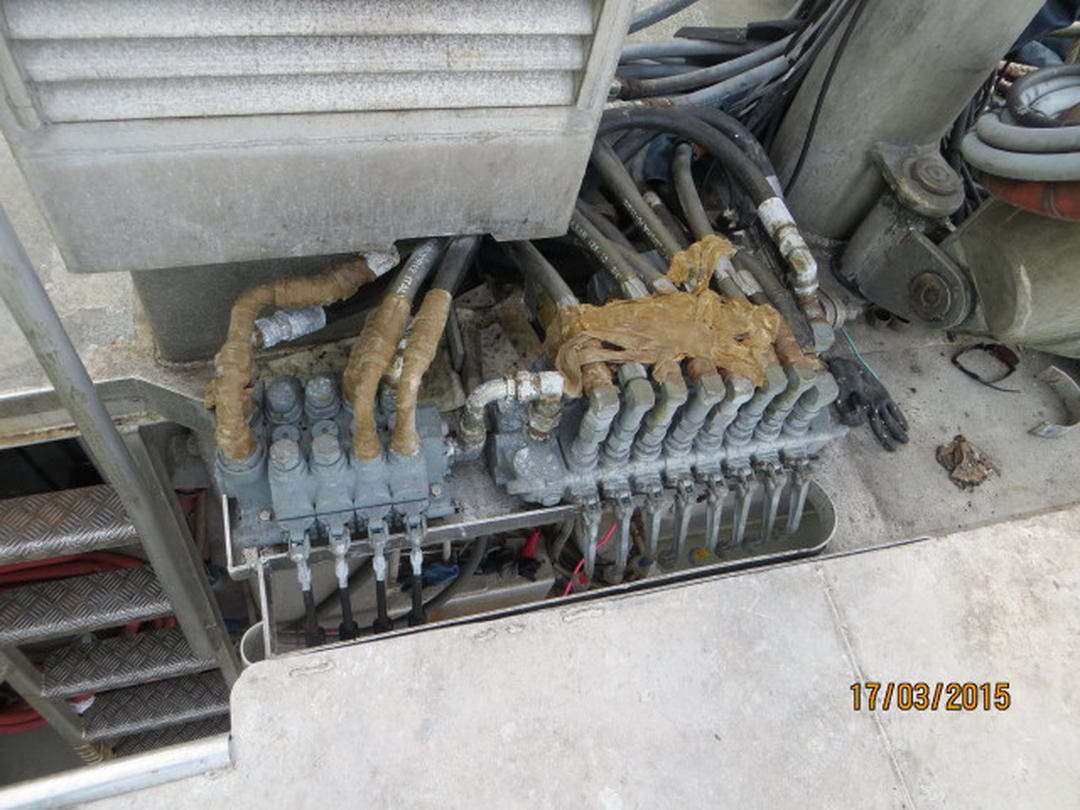

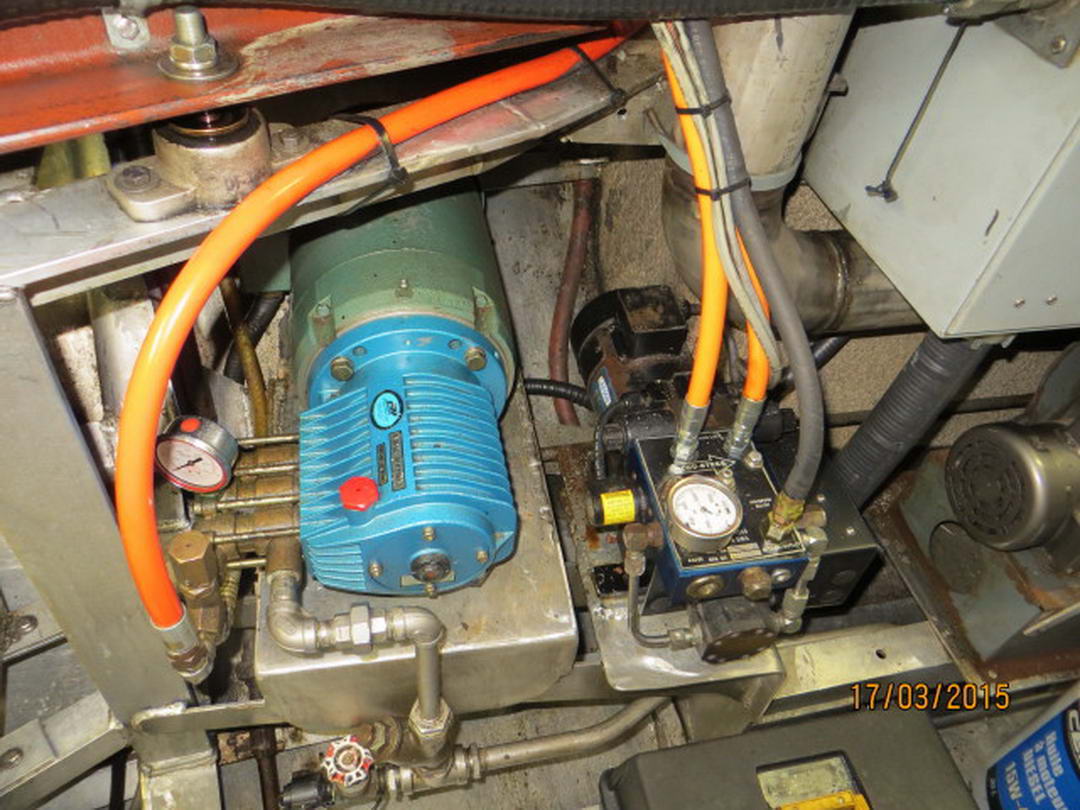

- Hydraulic pumps: Off main and auxiliary

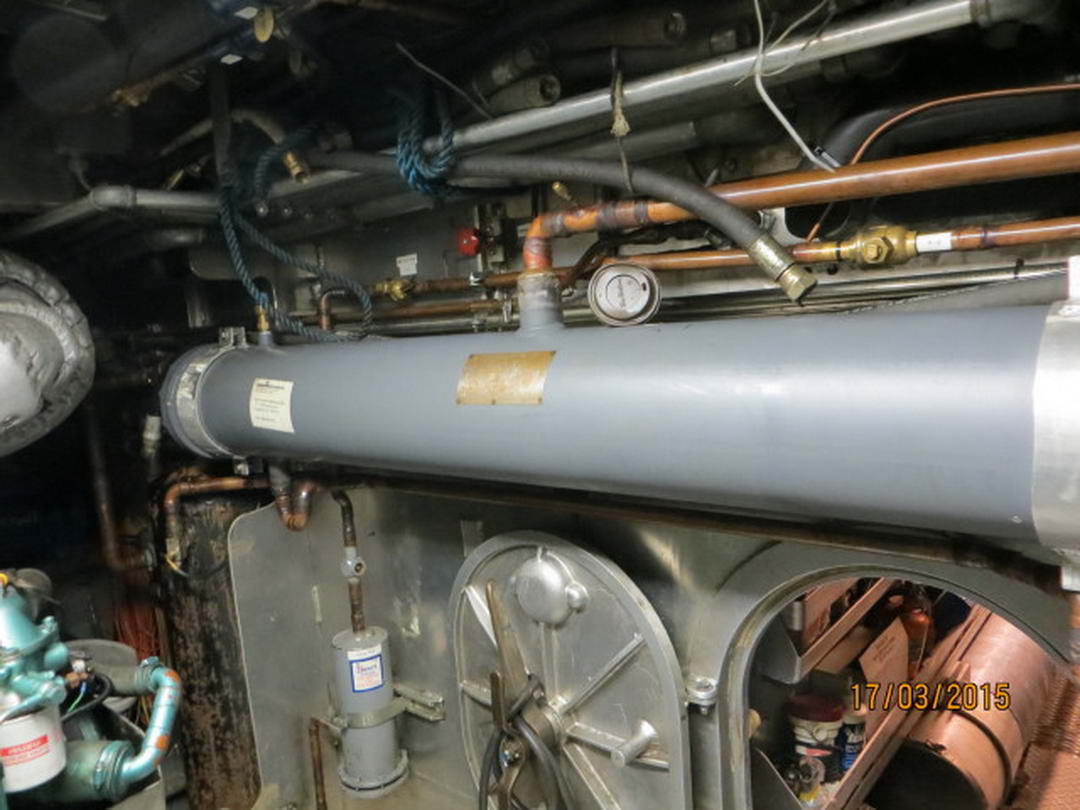

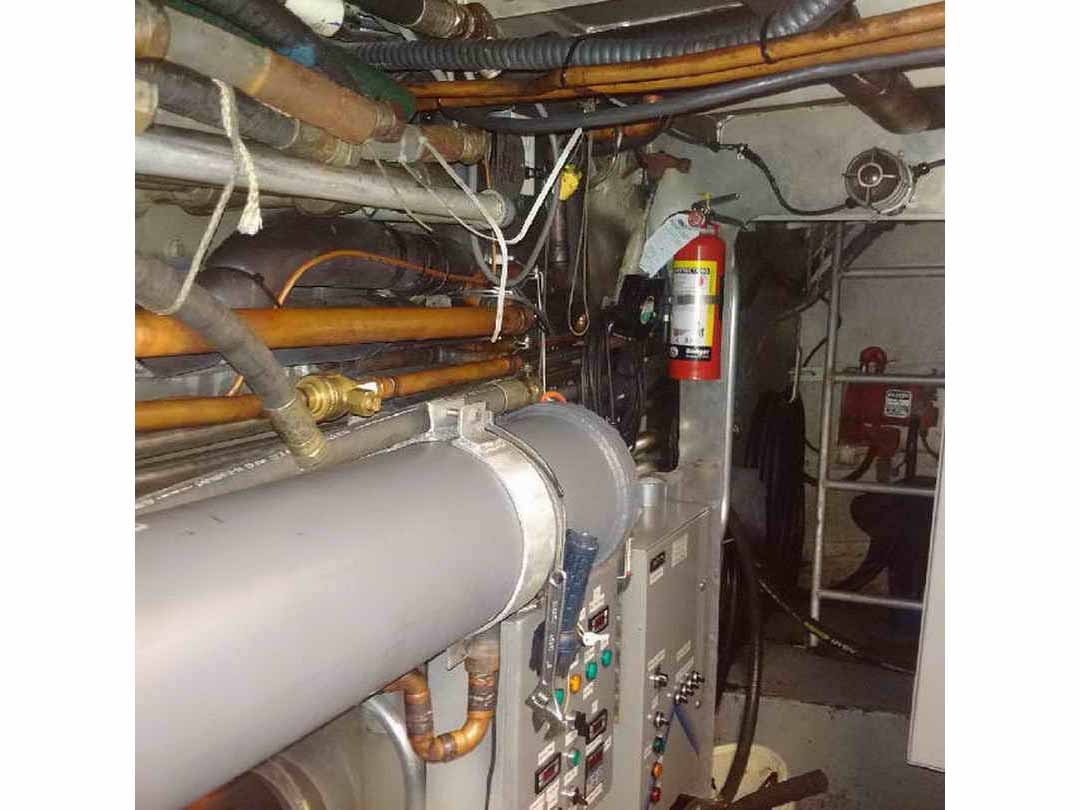

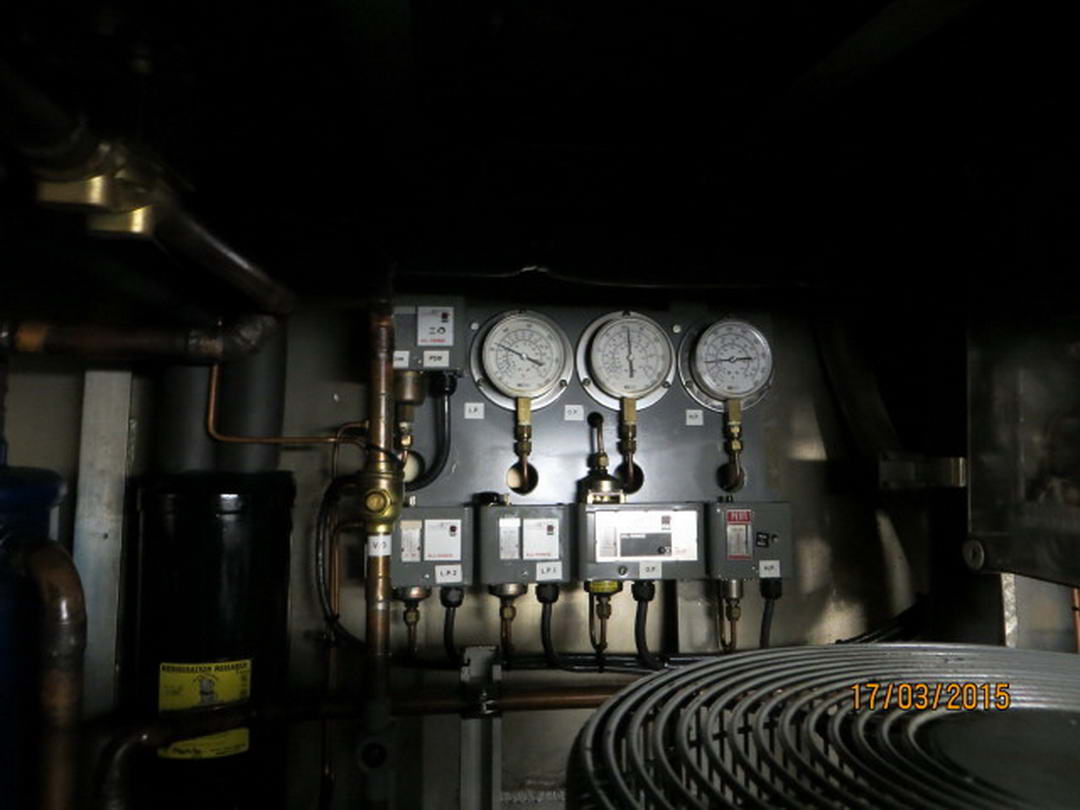

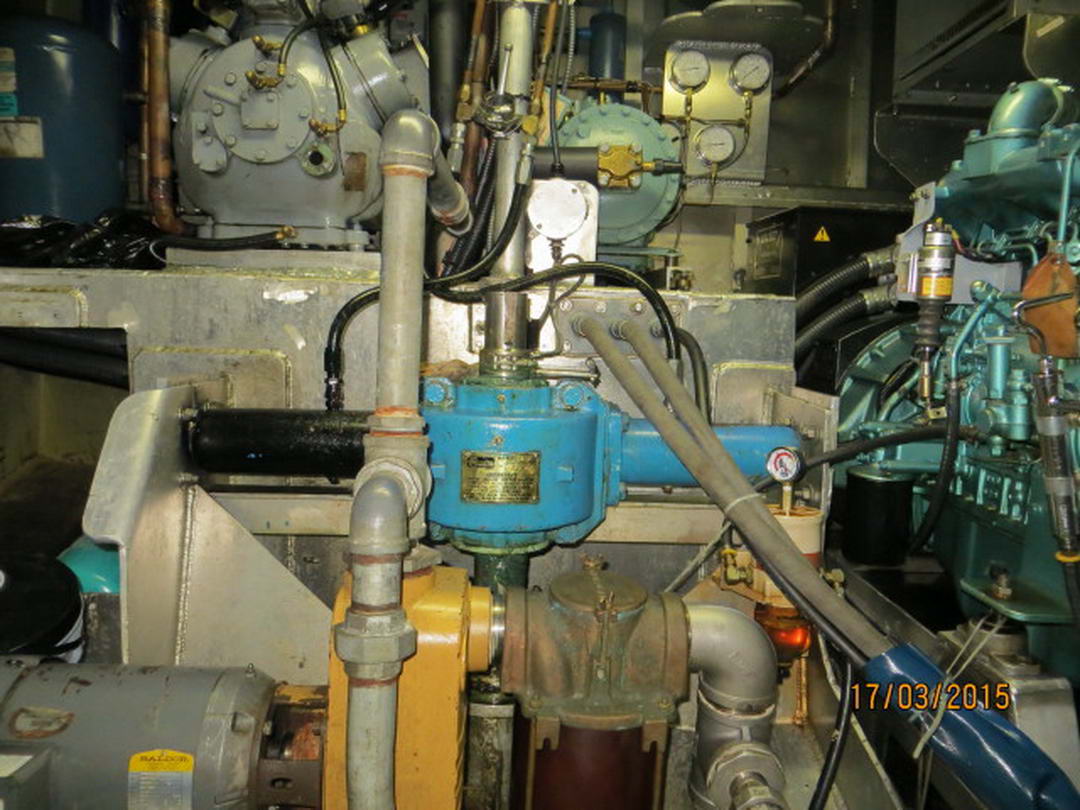

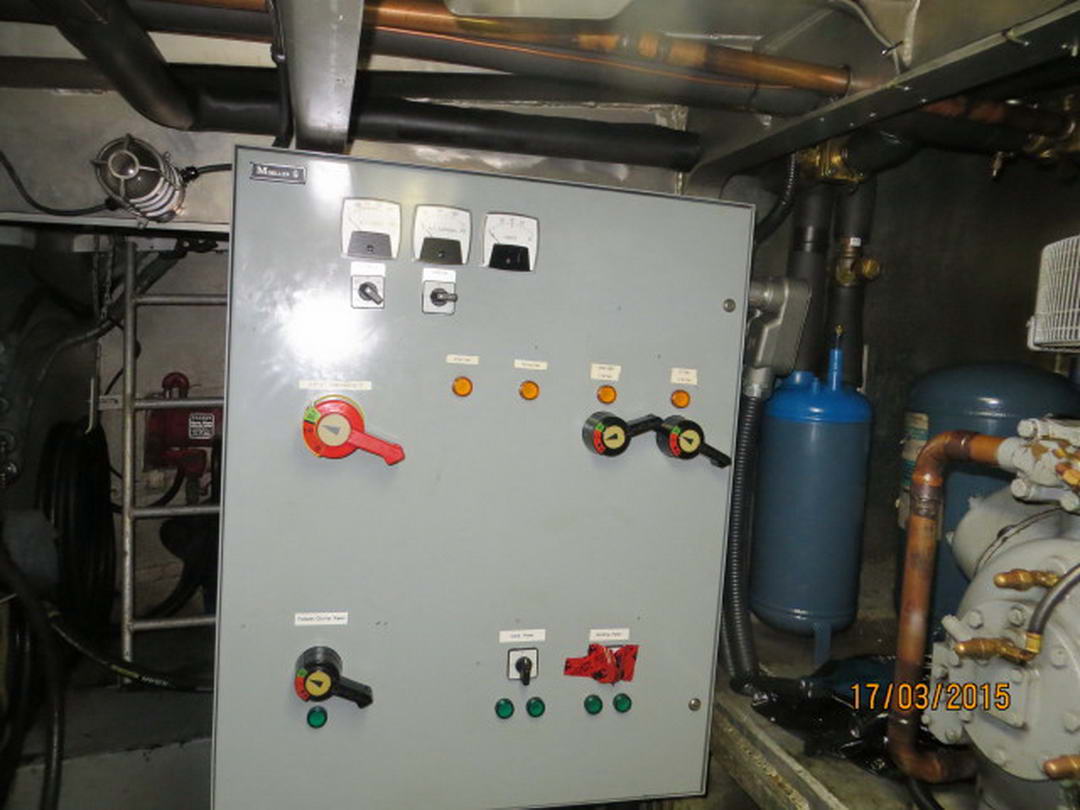

- Freezer: IMS 60 ton RSW with new chiller

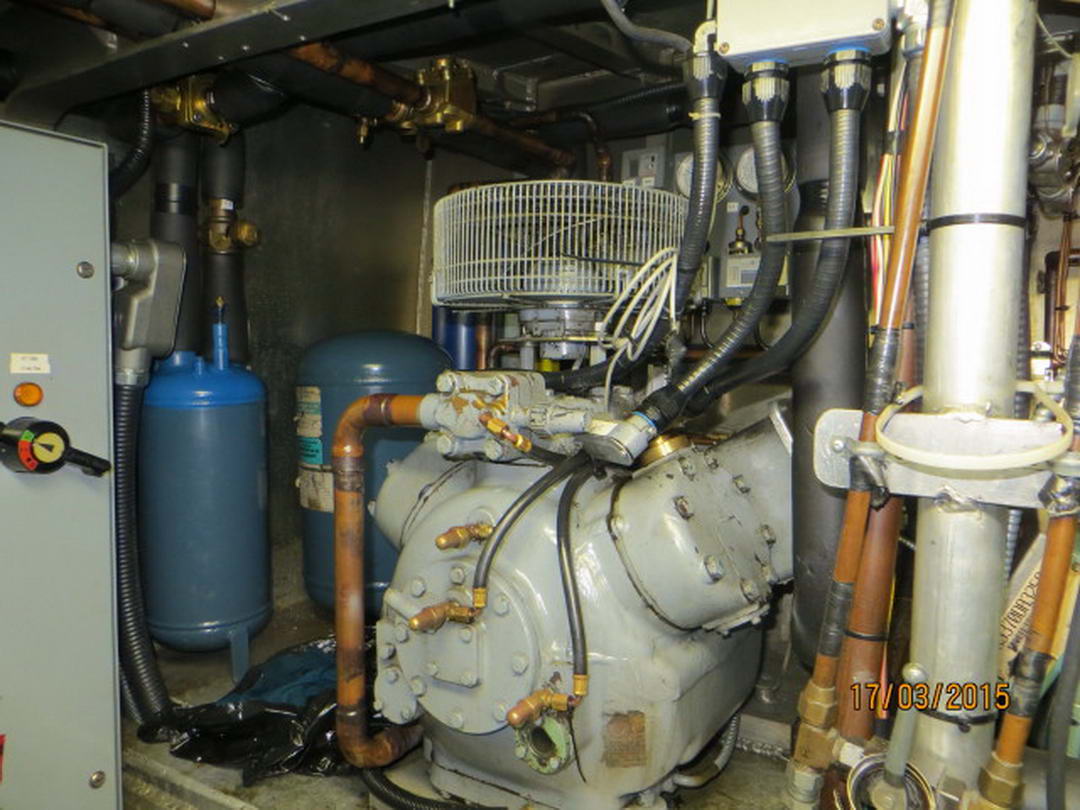

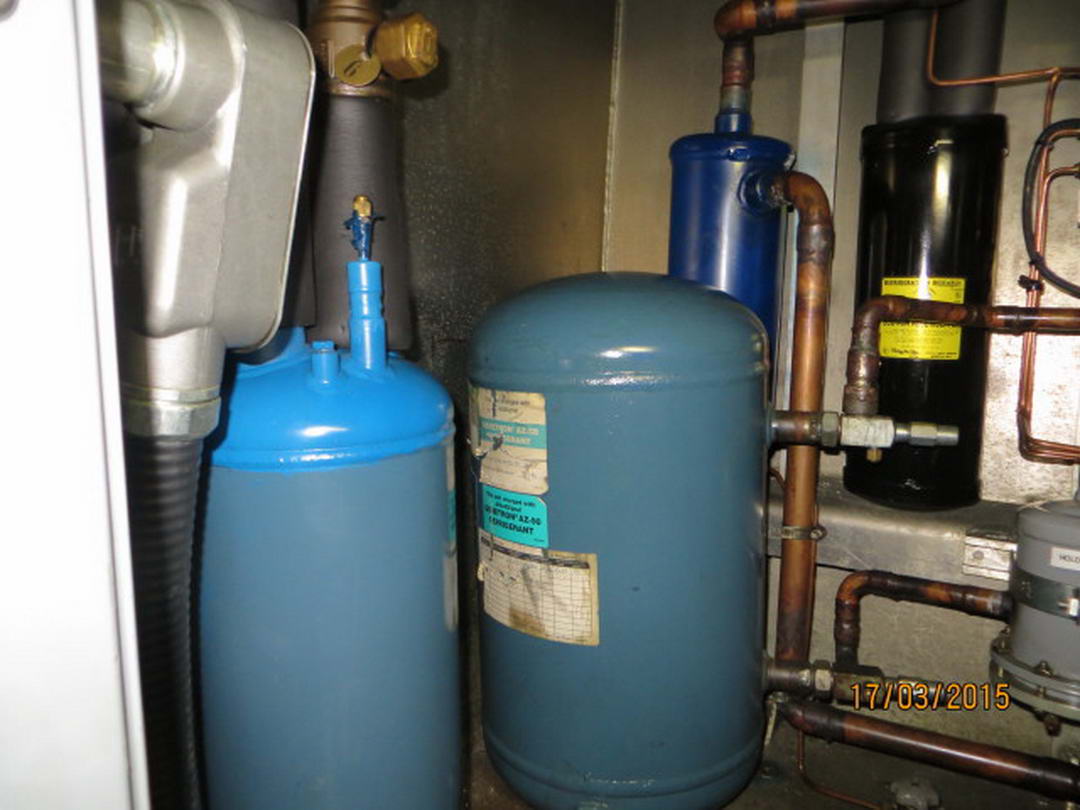

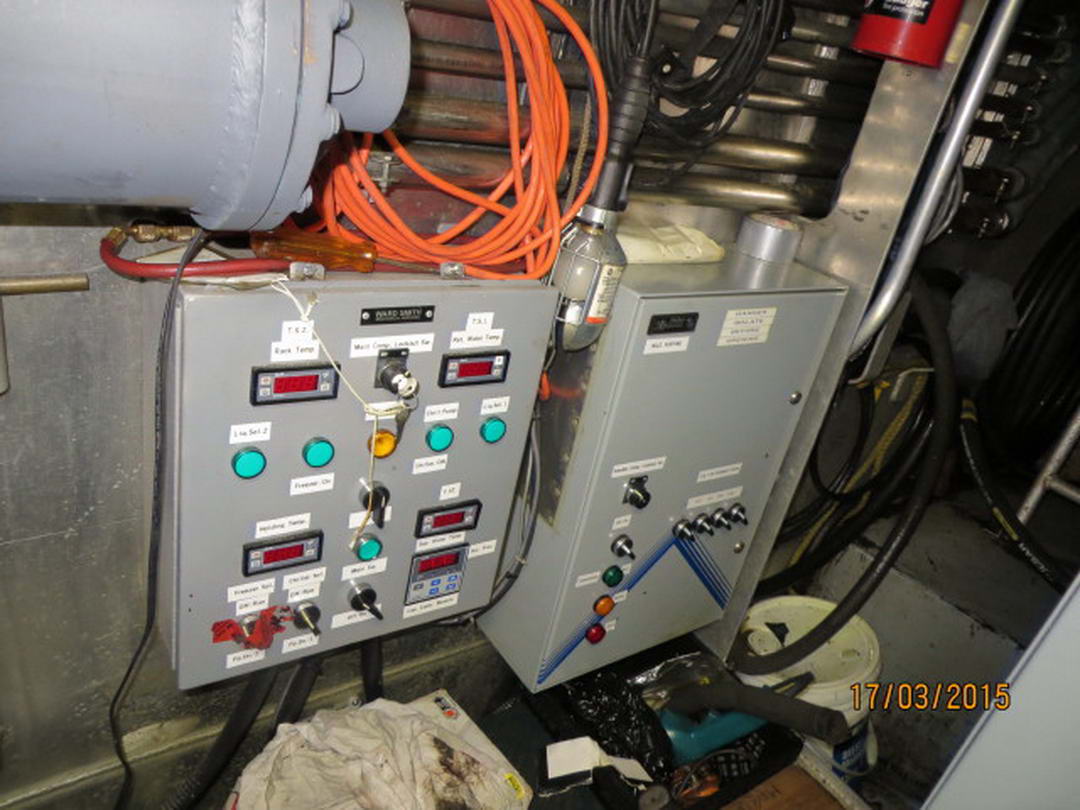

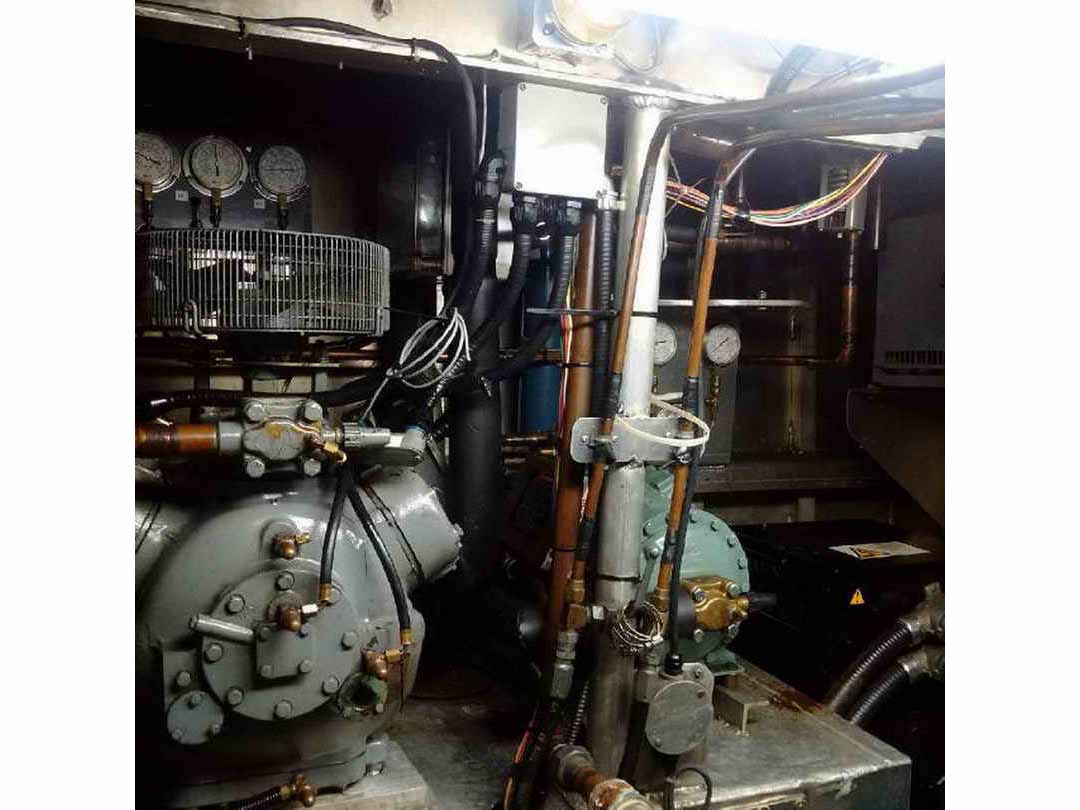

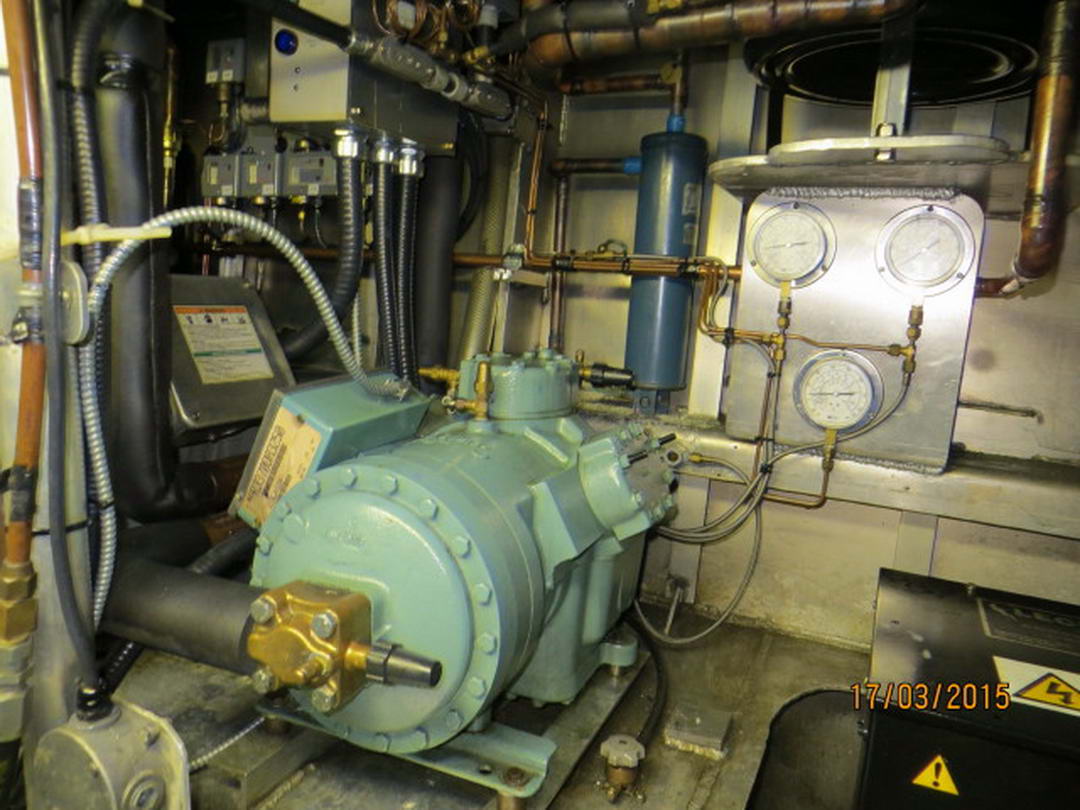

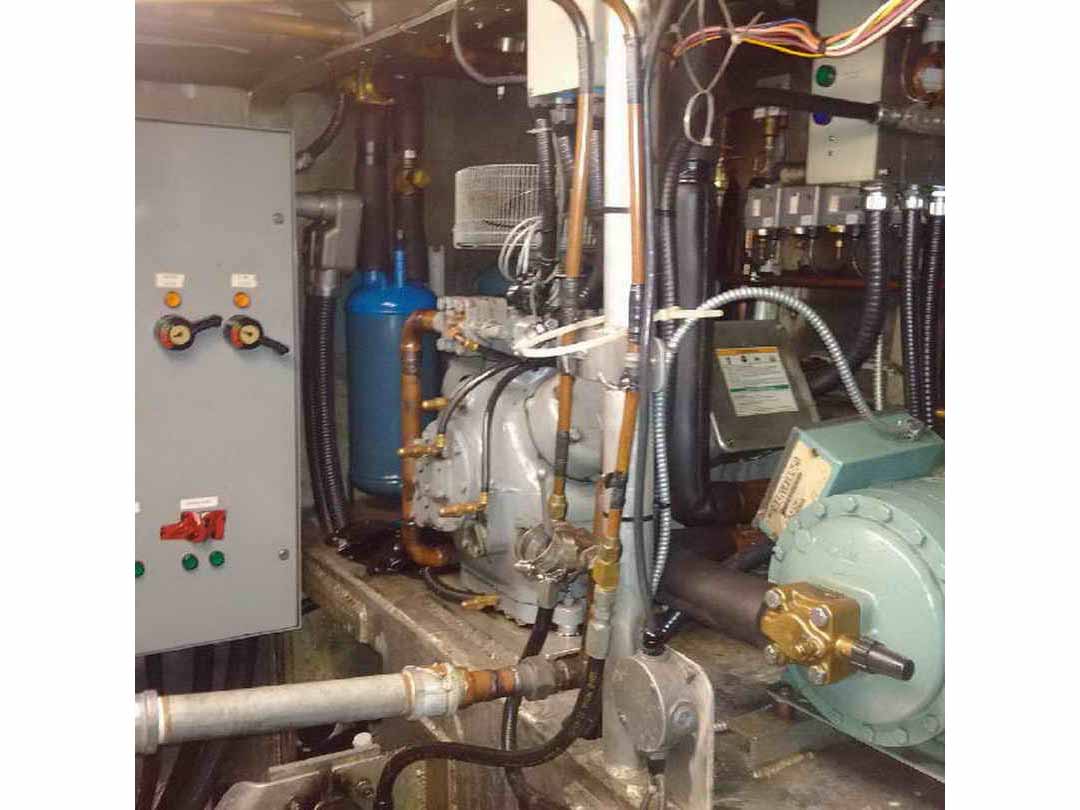

- Compressor: Ward Smith model 06E5254650
- Bilge pumps: Mechanical
Structural

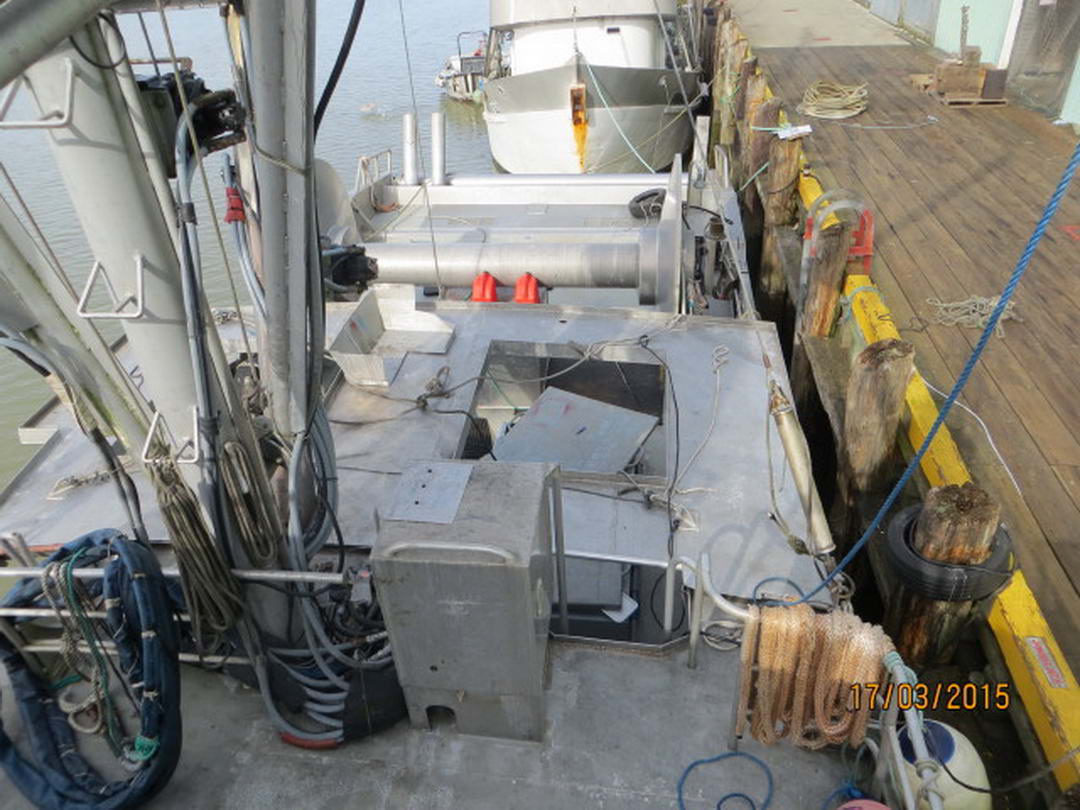

- All aluminum construction
- Zincs and anti-fouling: May 2022

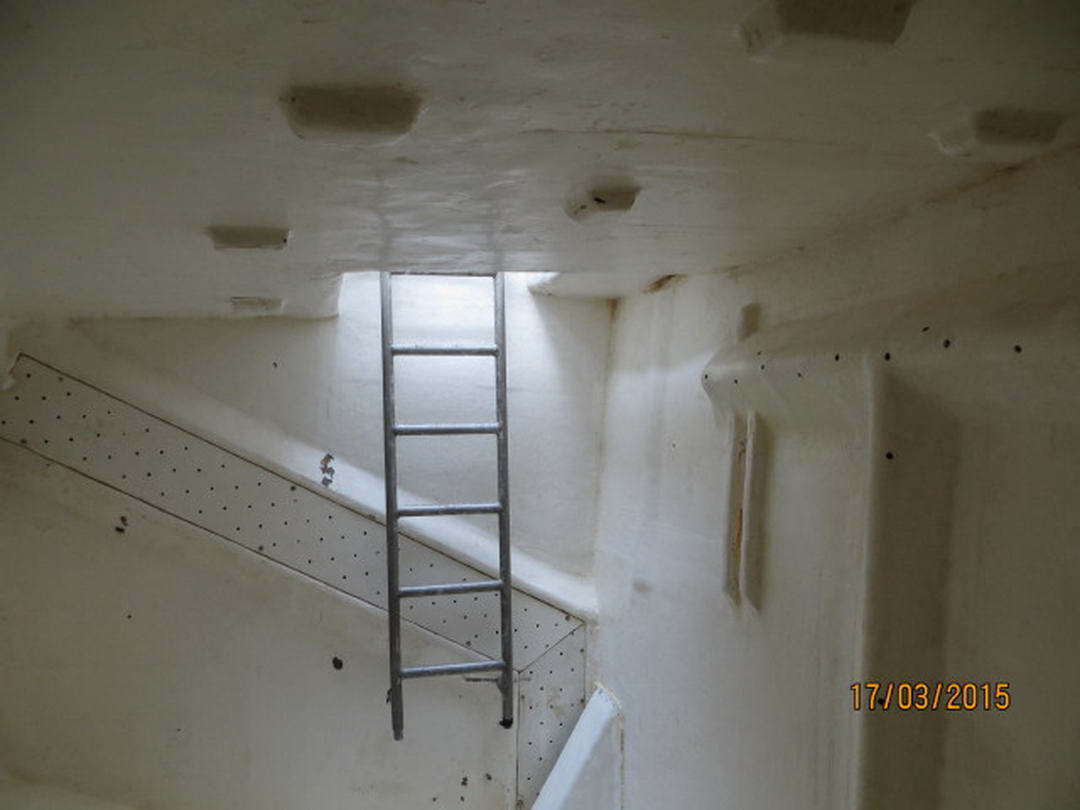

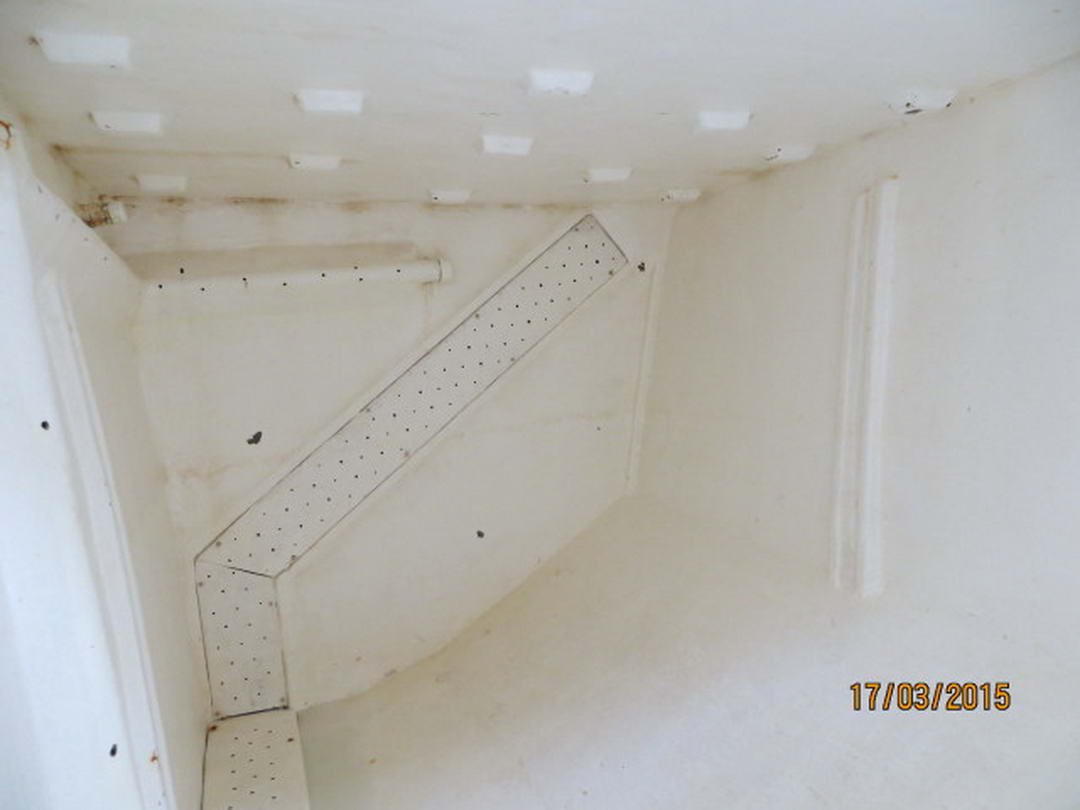

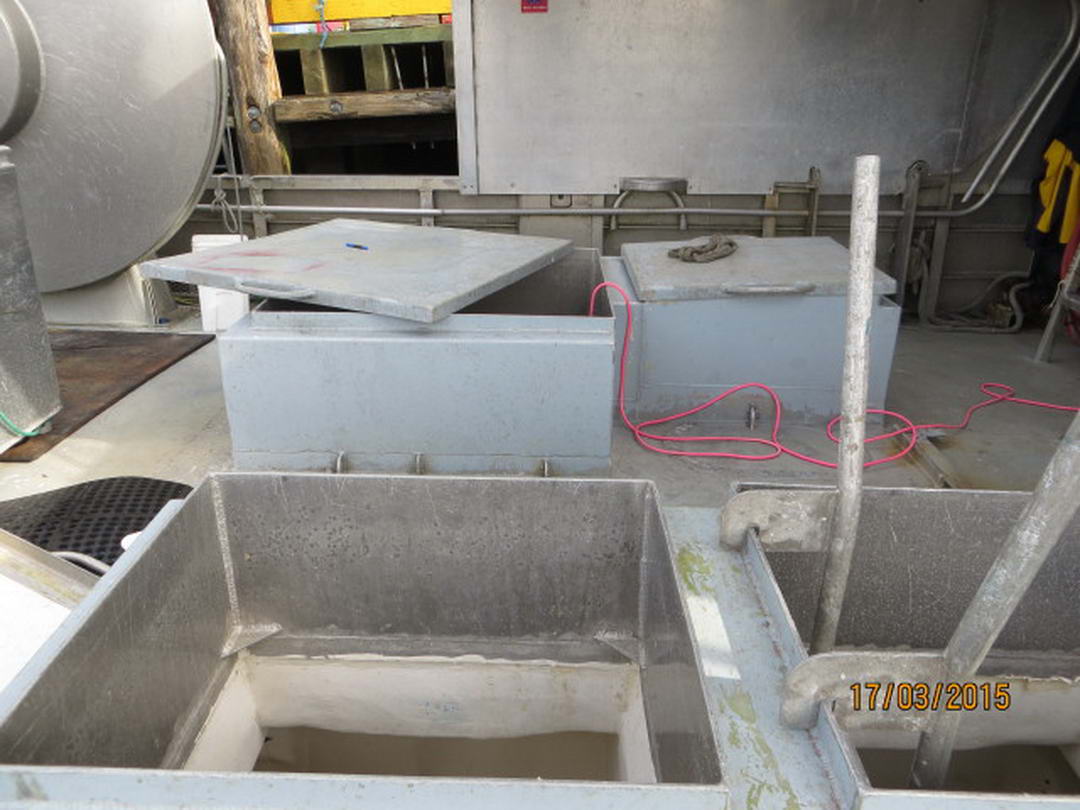

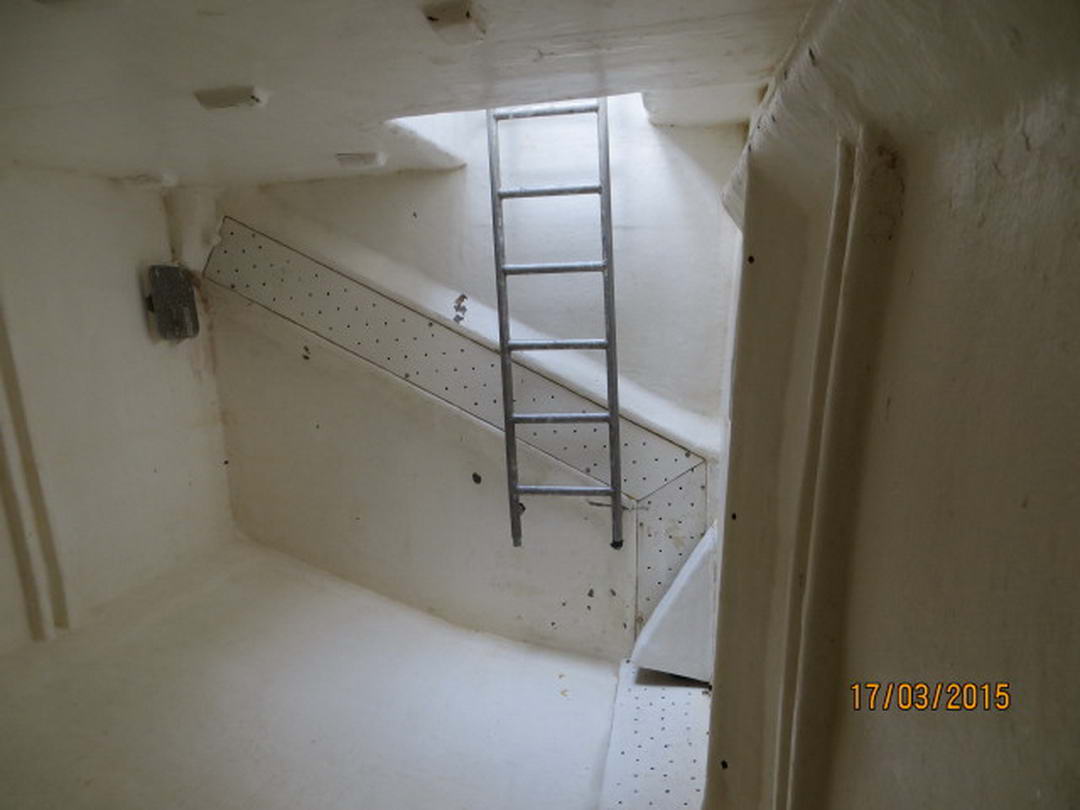

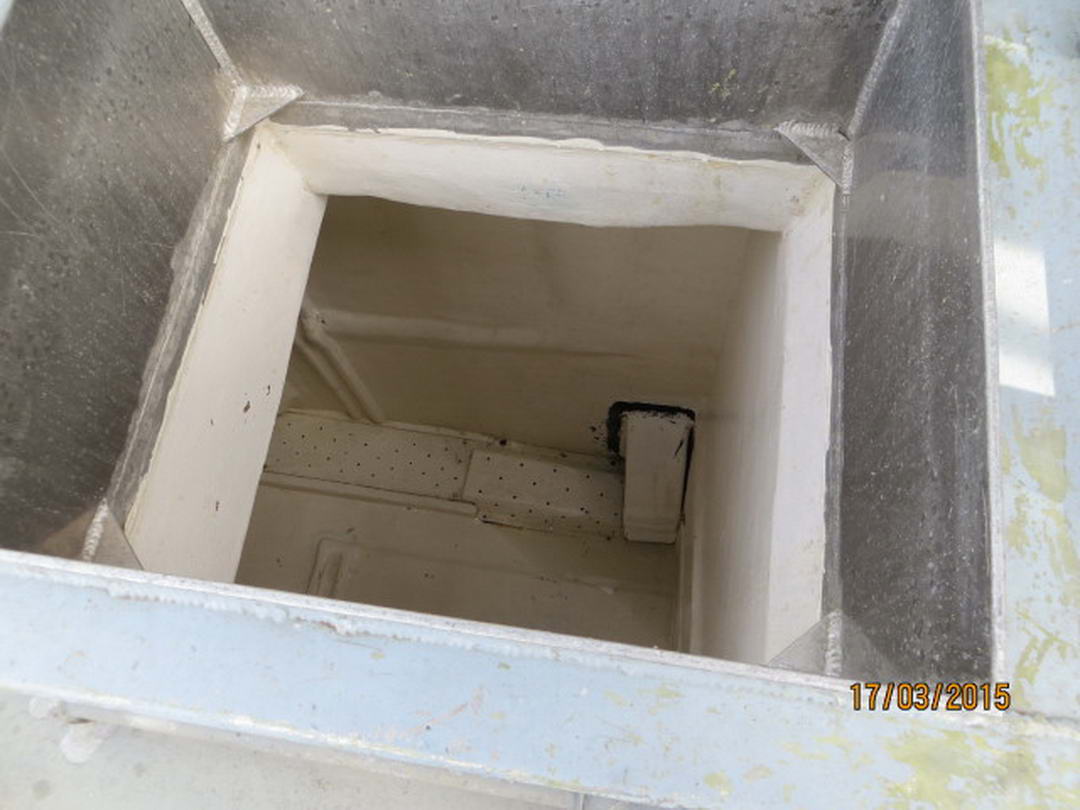

- Holds: Foamed and fiberglass, 60 ton herring, 63 ton sardine capacity
- Fish hold modification here
- Anchor: Navy copy

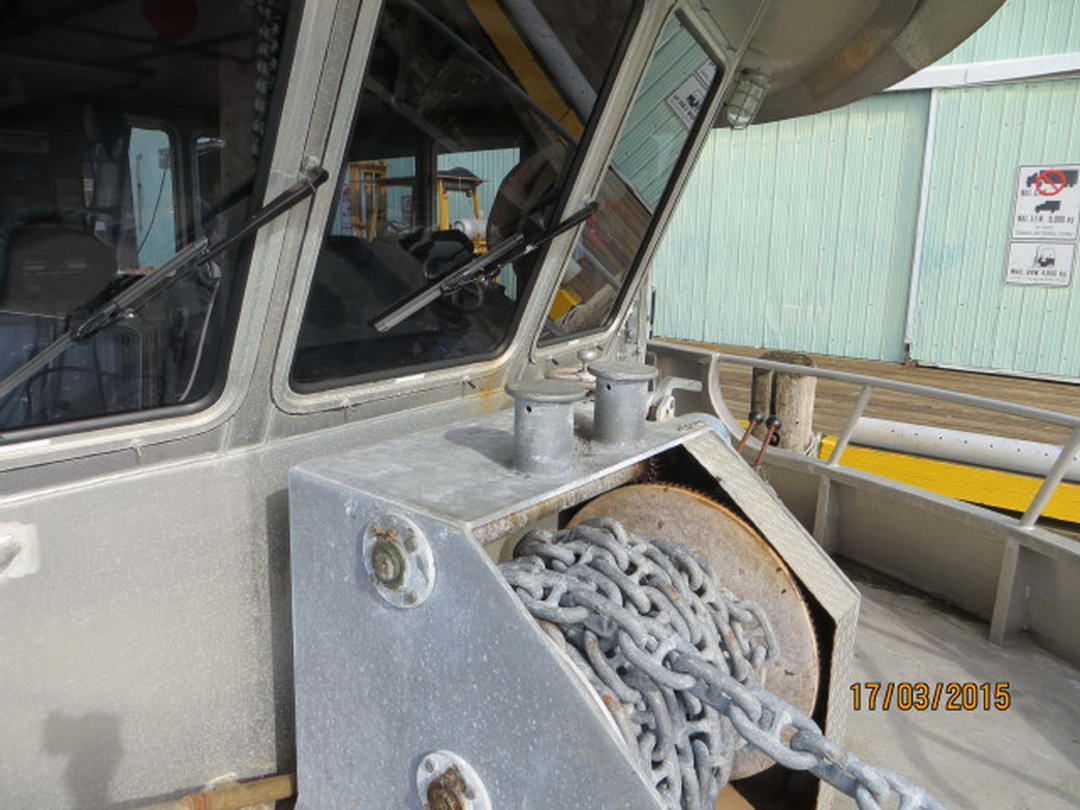

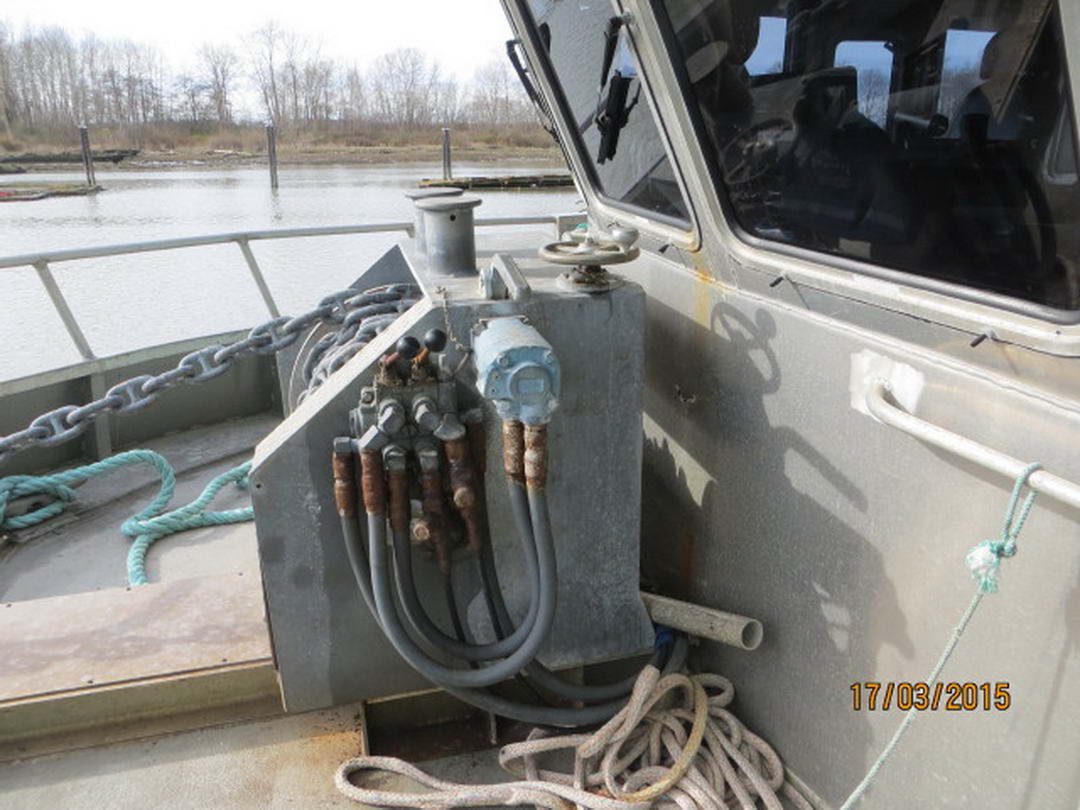

- Anchor winches: Hydraulic aluminum

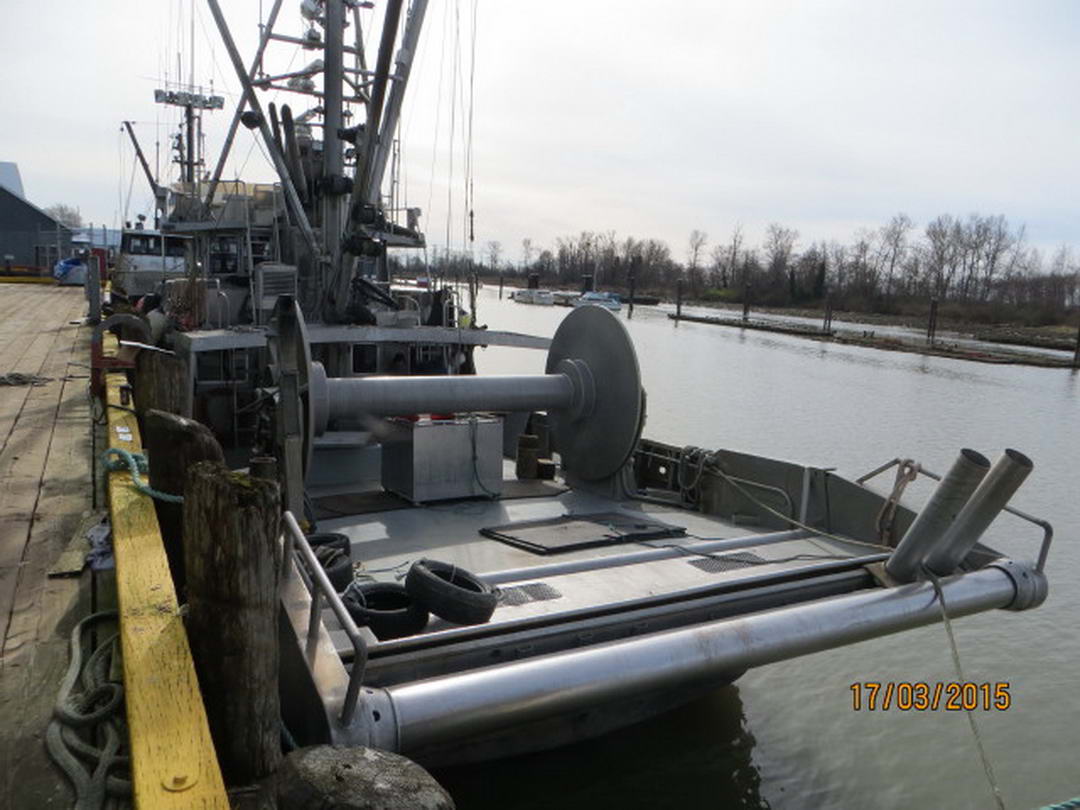

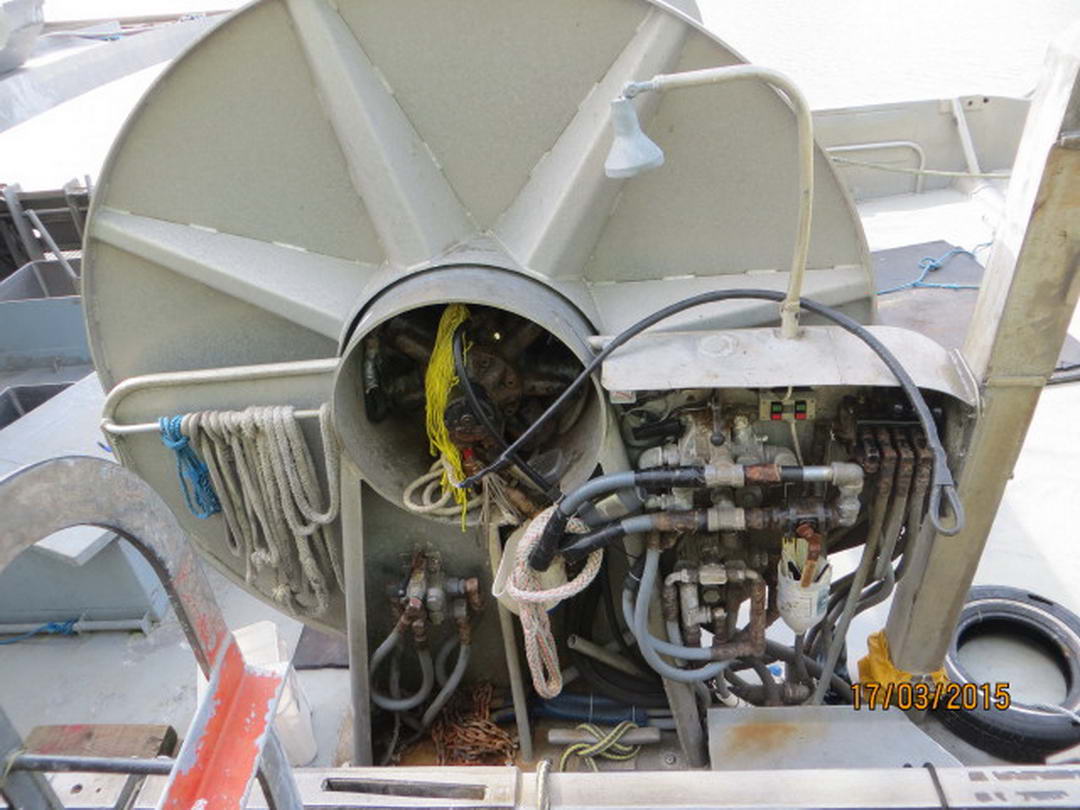

- Drums: Aluminum 7 piston
- Drum spooler

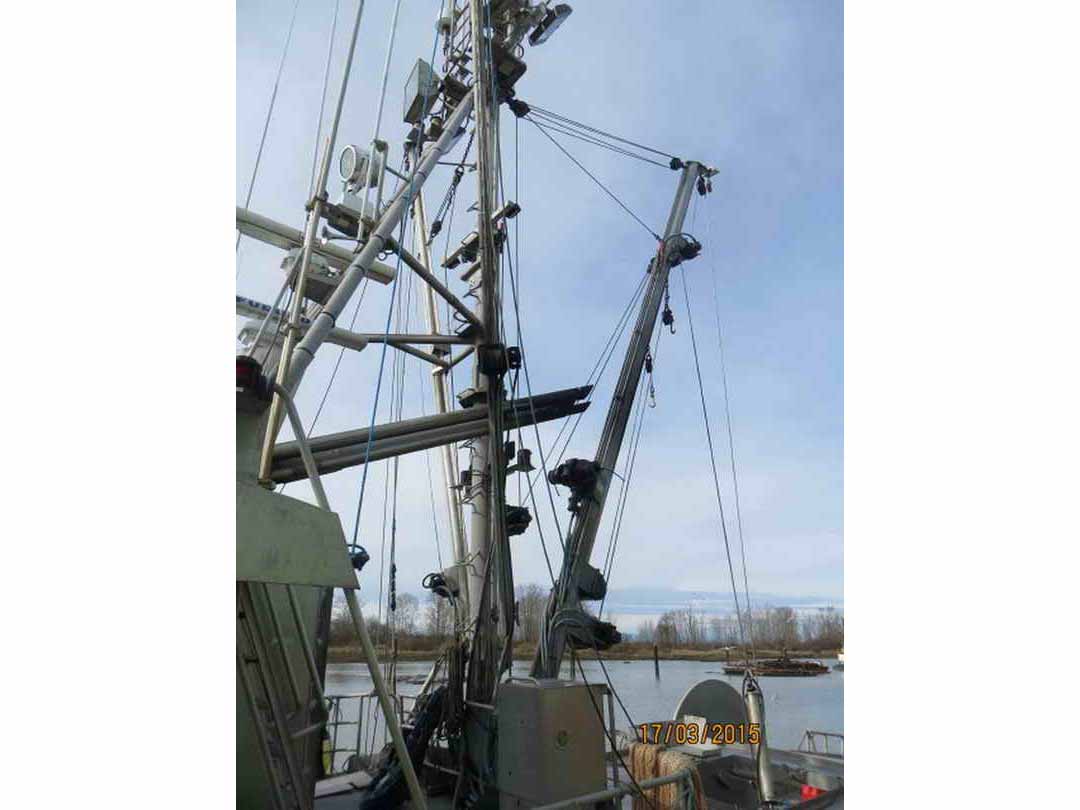

- Winches: Pullmaster, topping, single fall, vanging

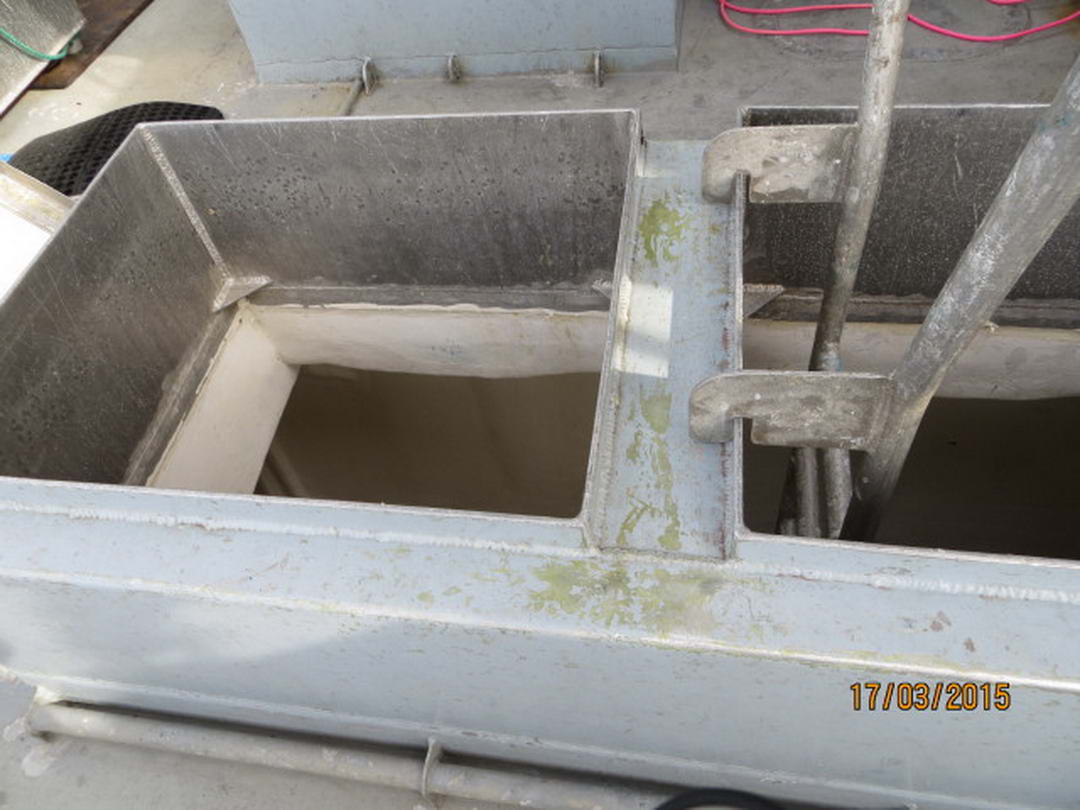

- Accessories: 10 inch sub pump, dewatering box and pipes, power block, deck winch
- Gear: Salmon nets

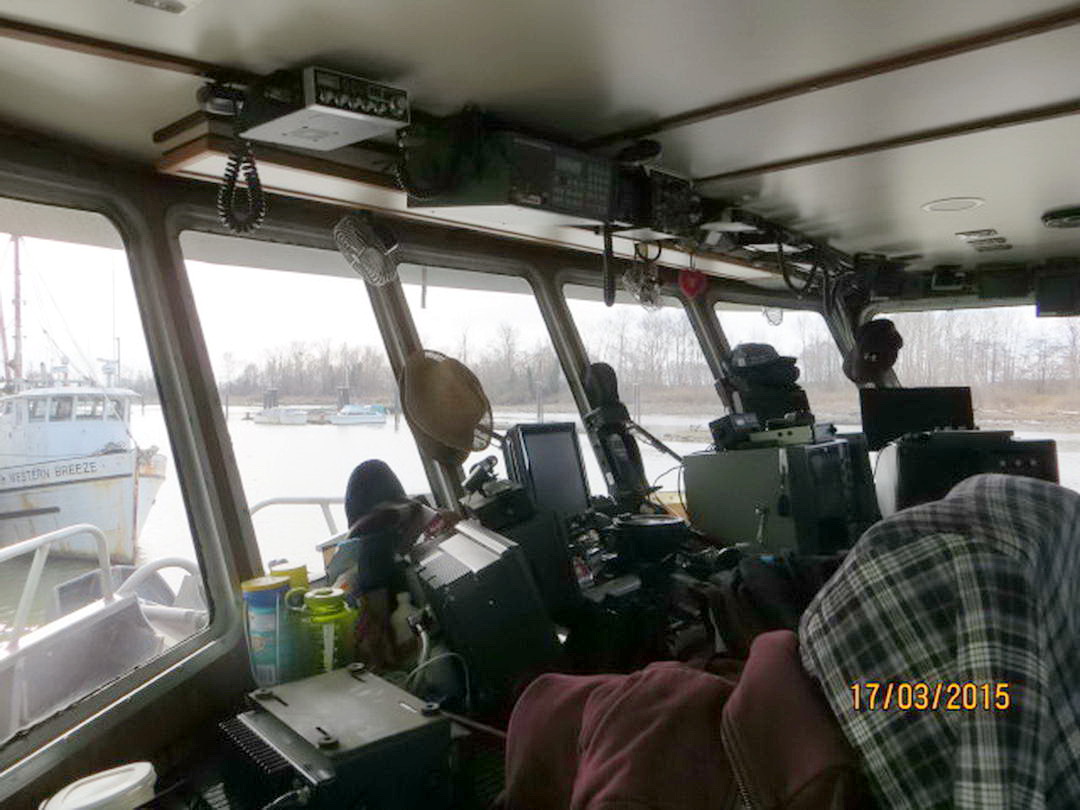

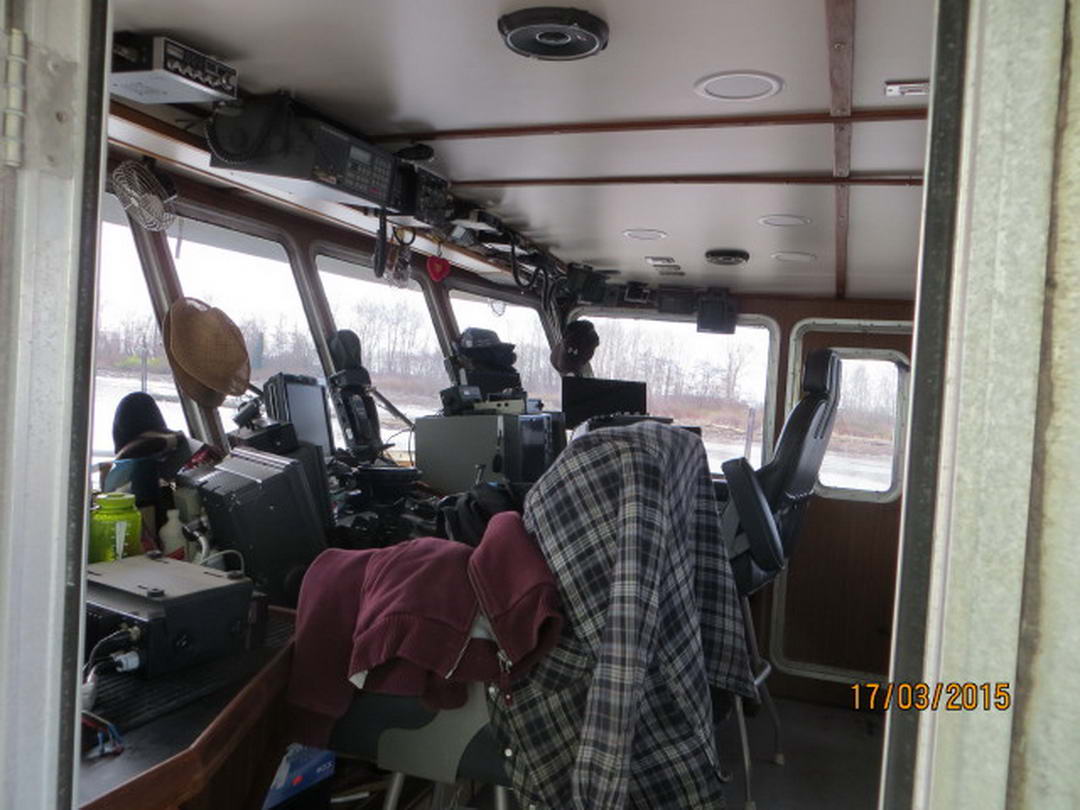

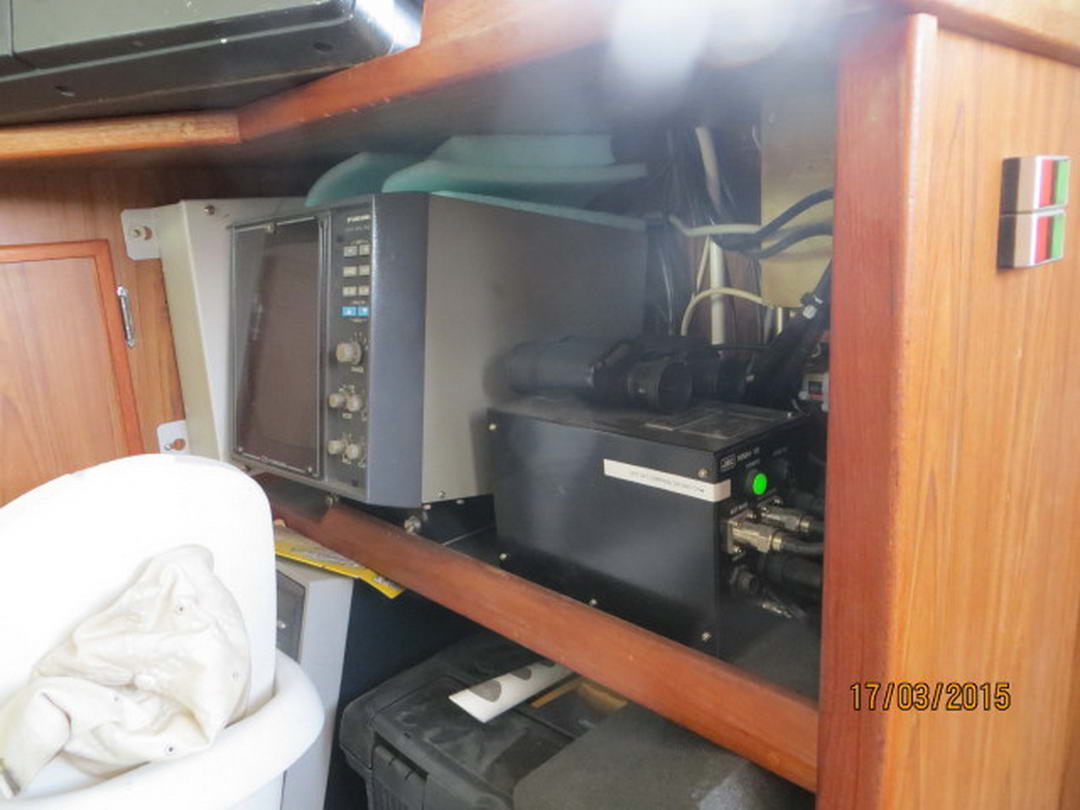

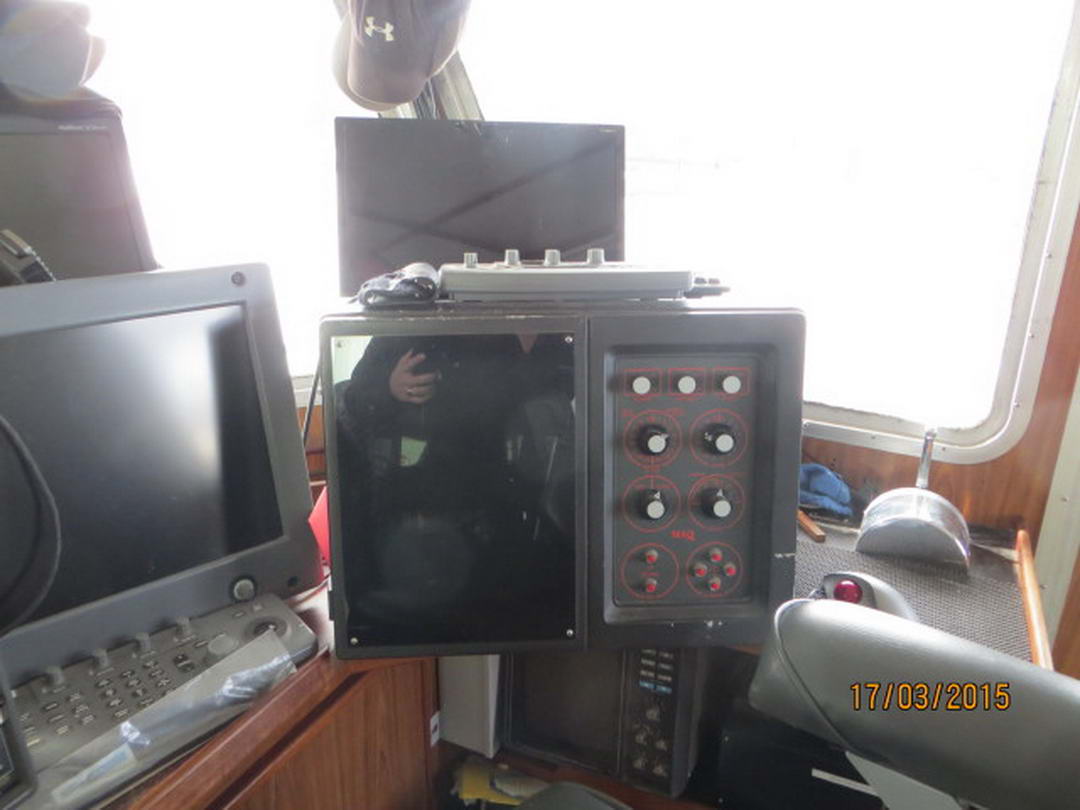

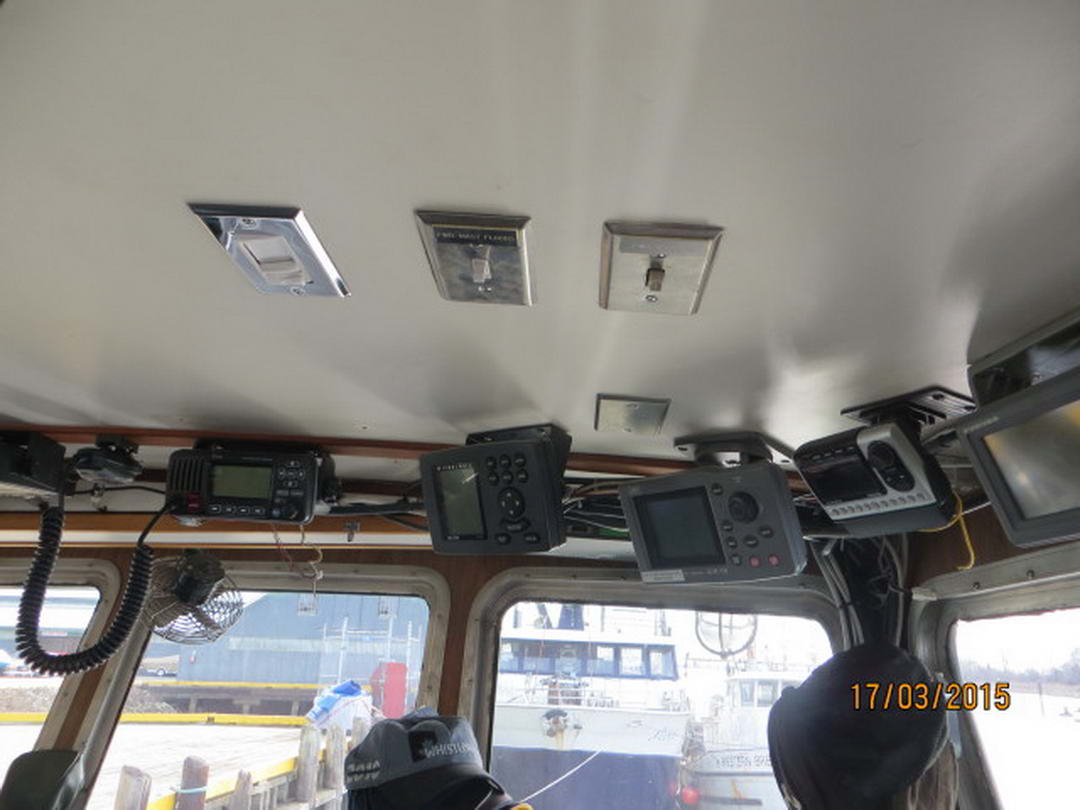

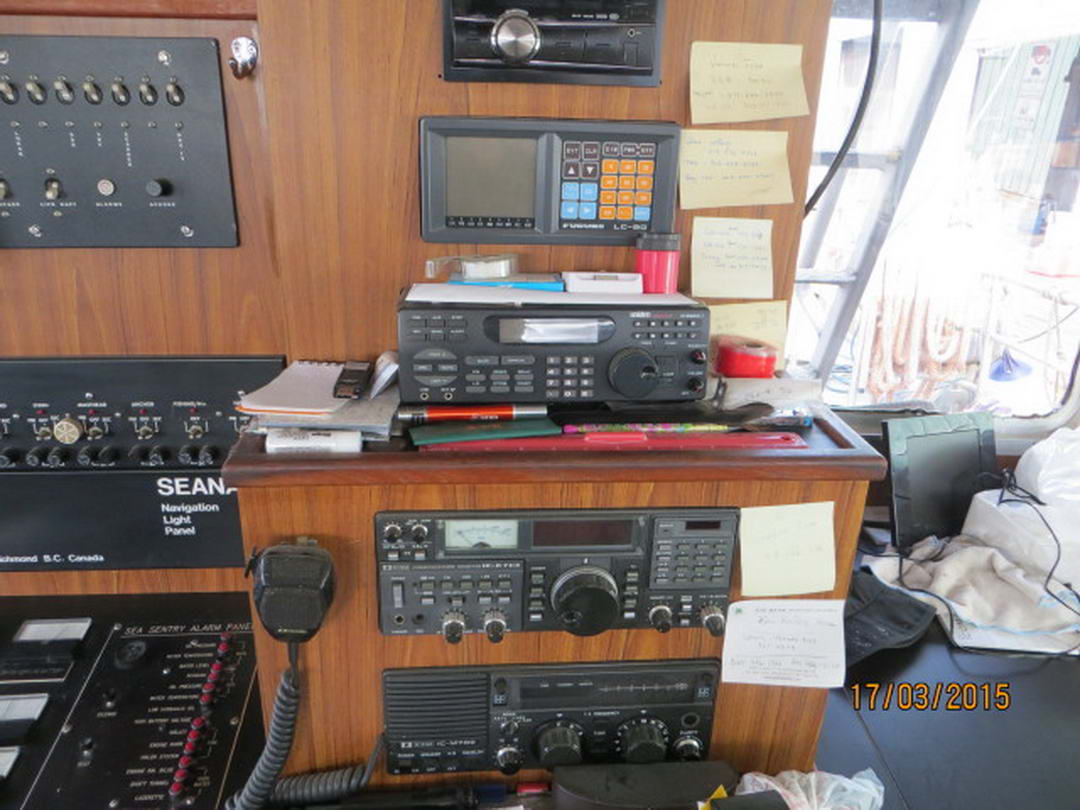

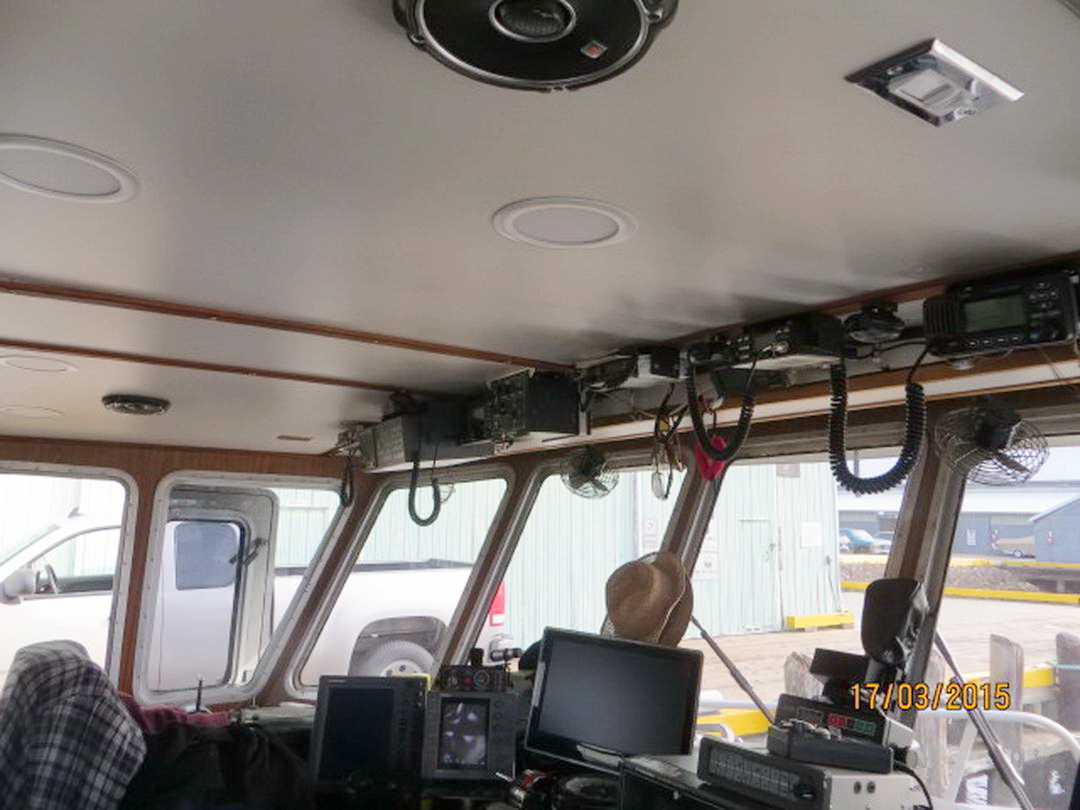

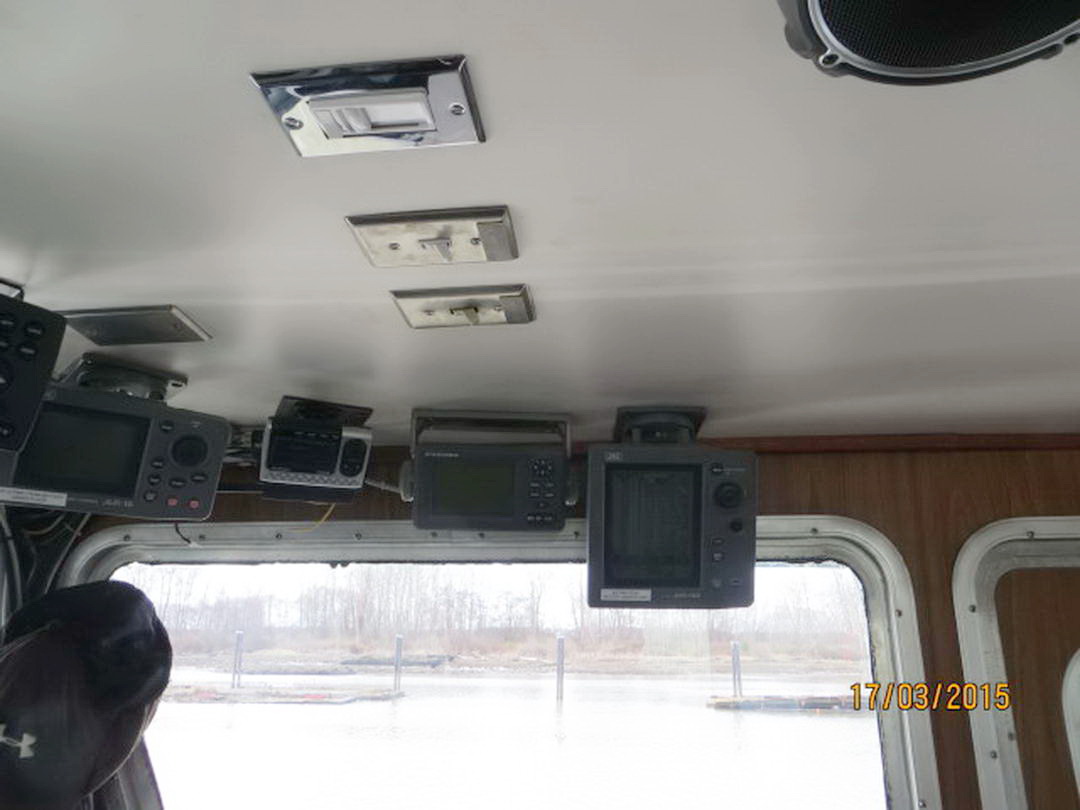

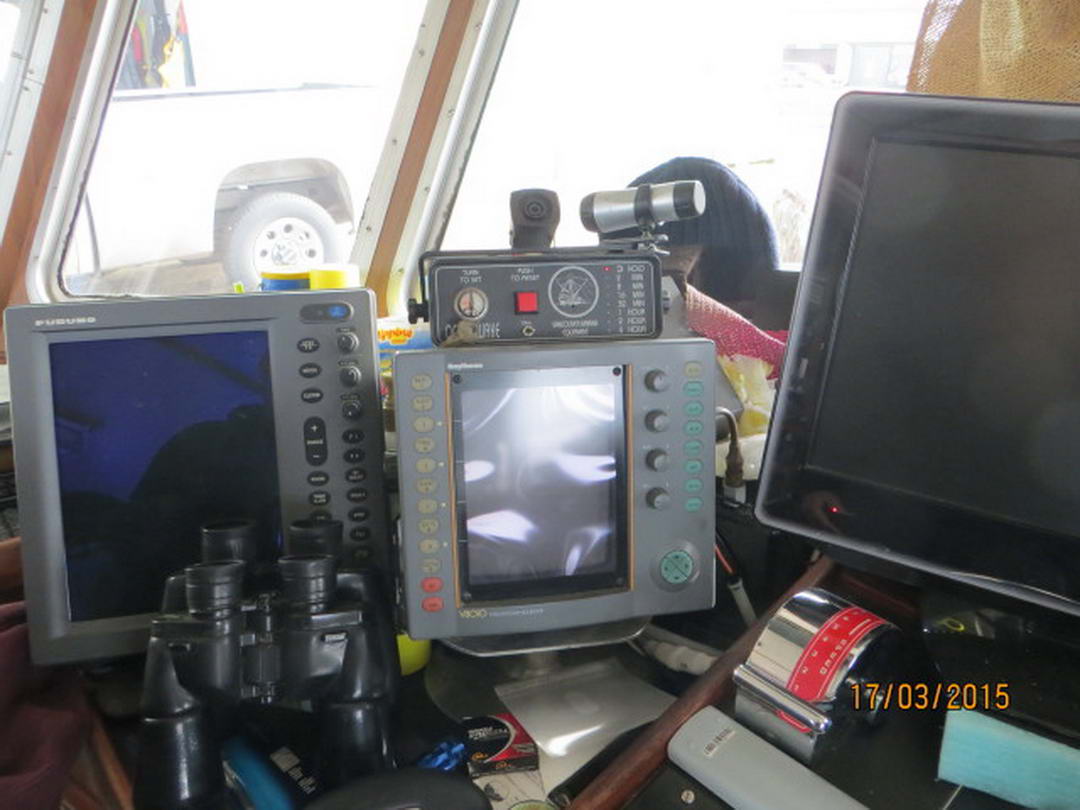

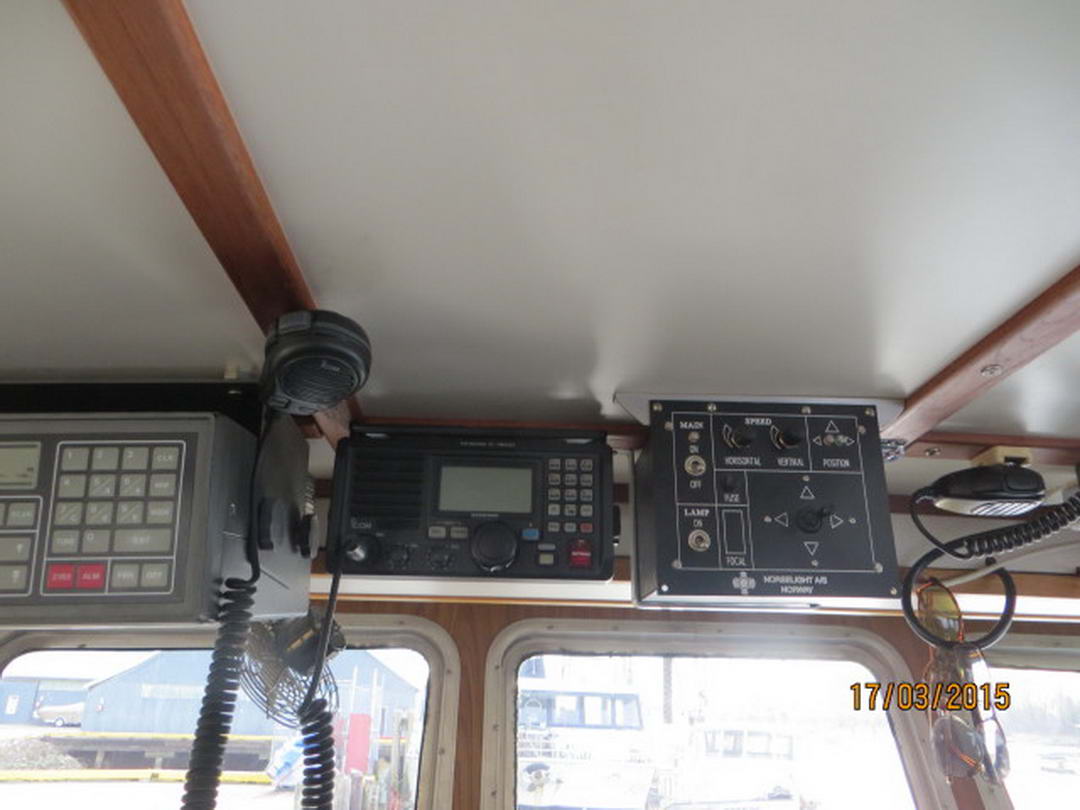

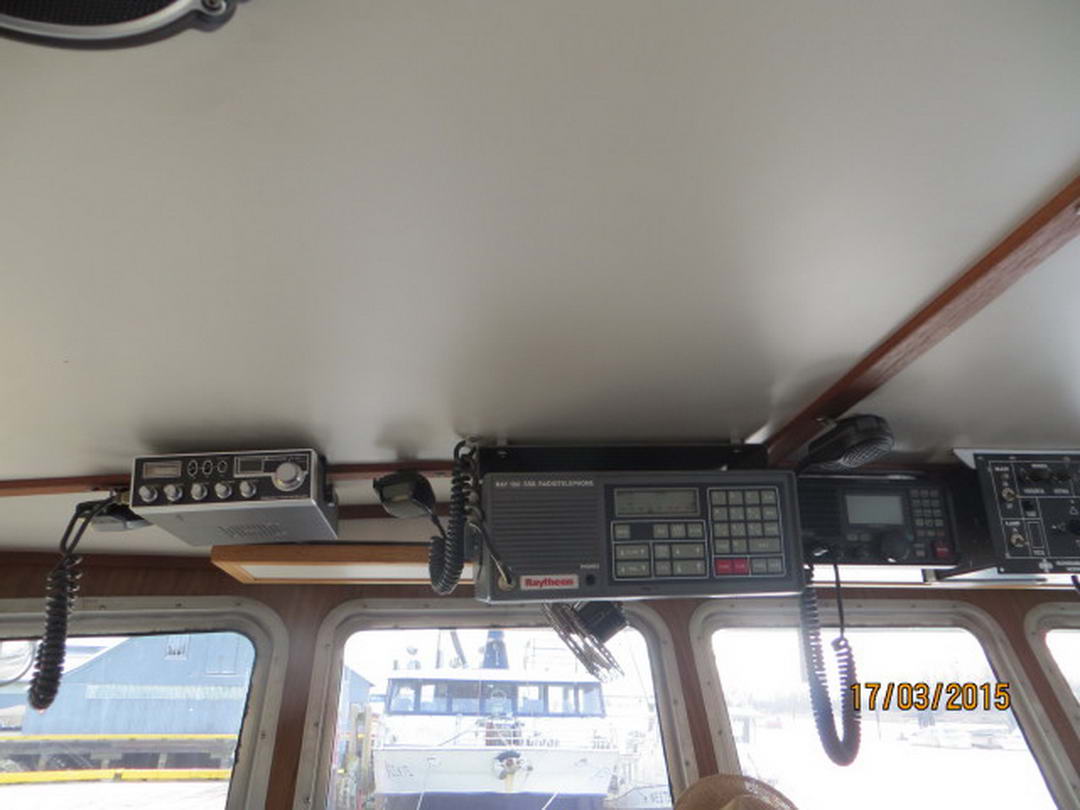

Electronics

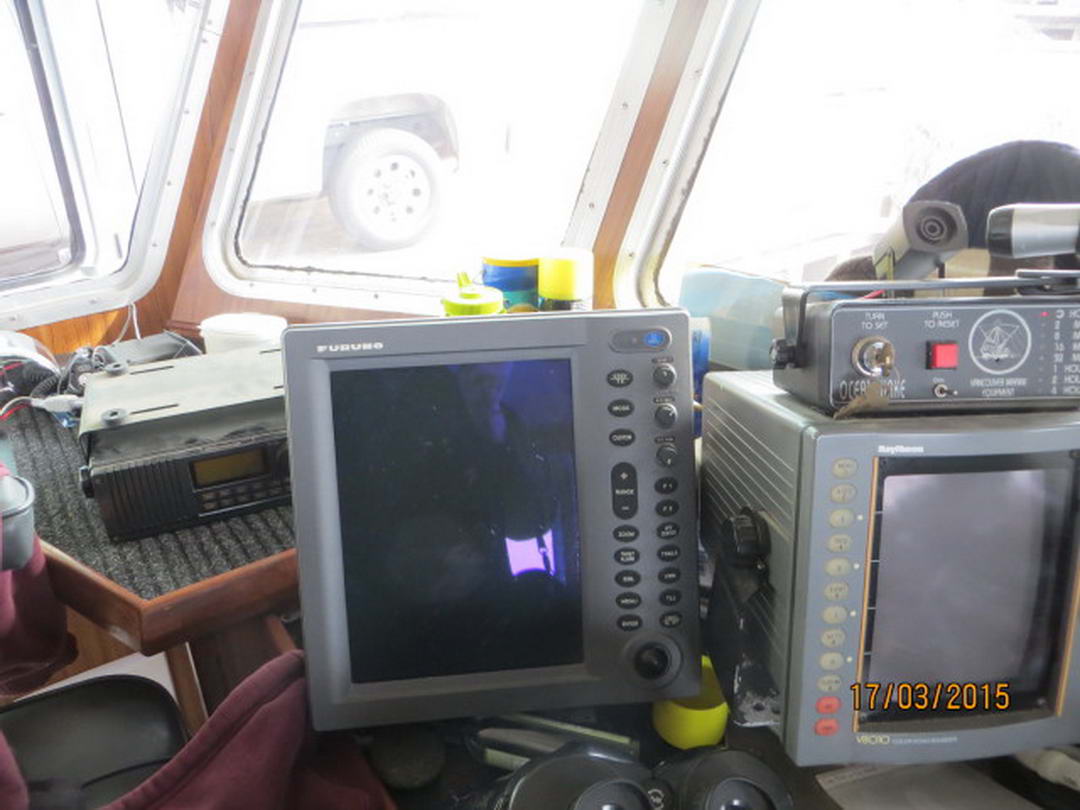

- GPS: Furuno
- VHF: Icom
- SSB: 2
- Computer: PC with navigation program and flat screens

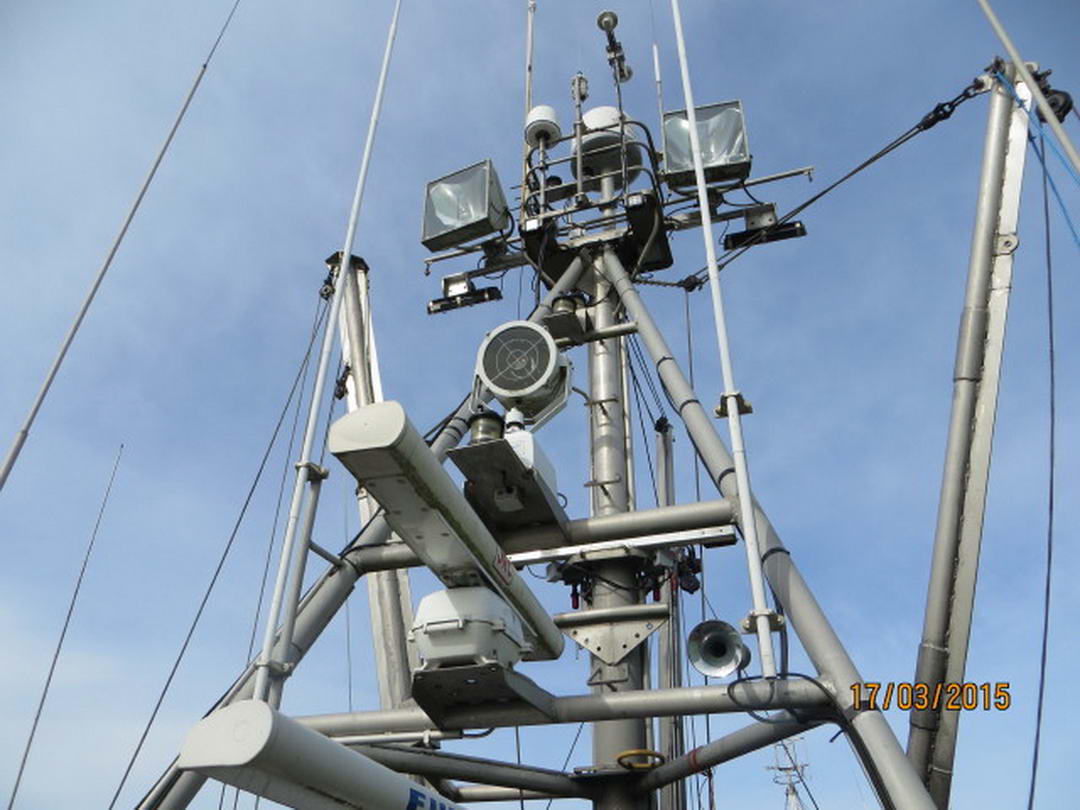

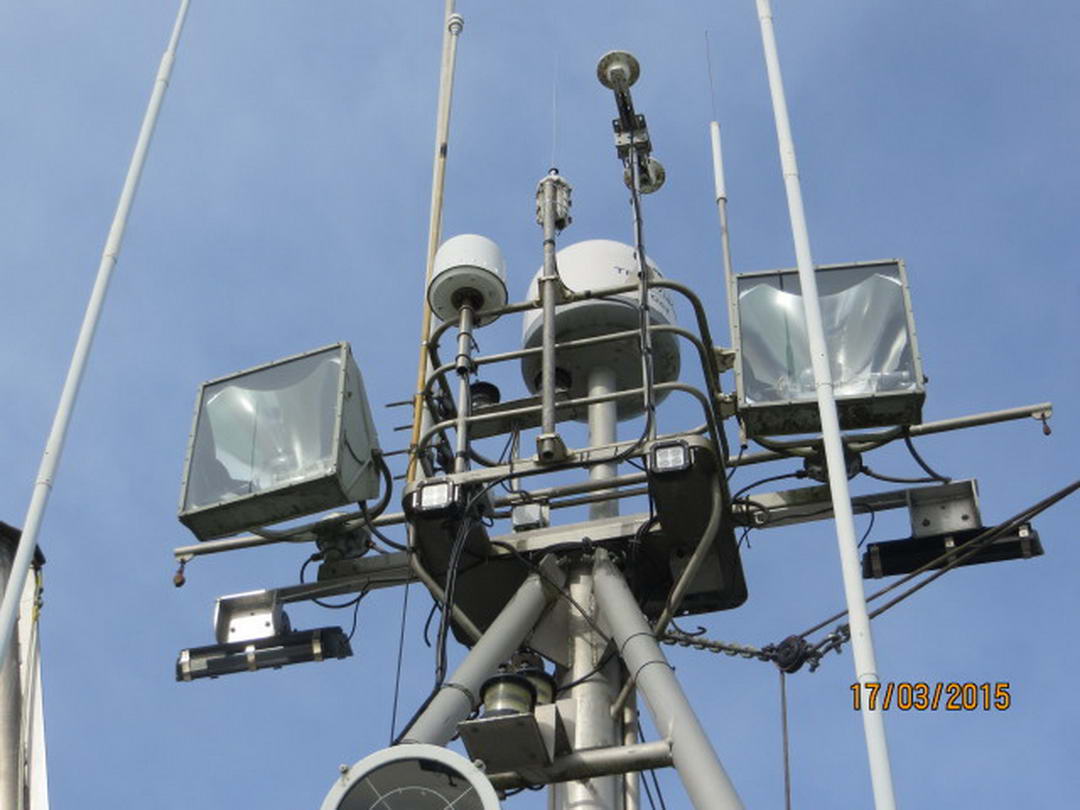

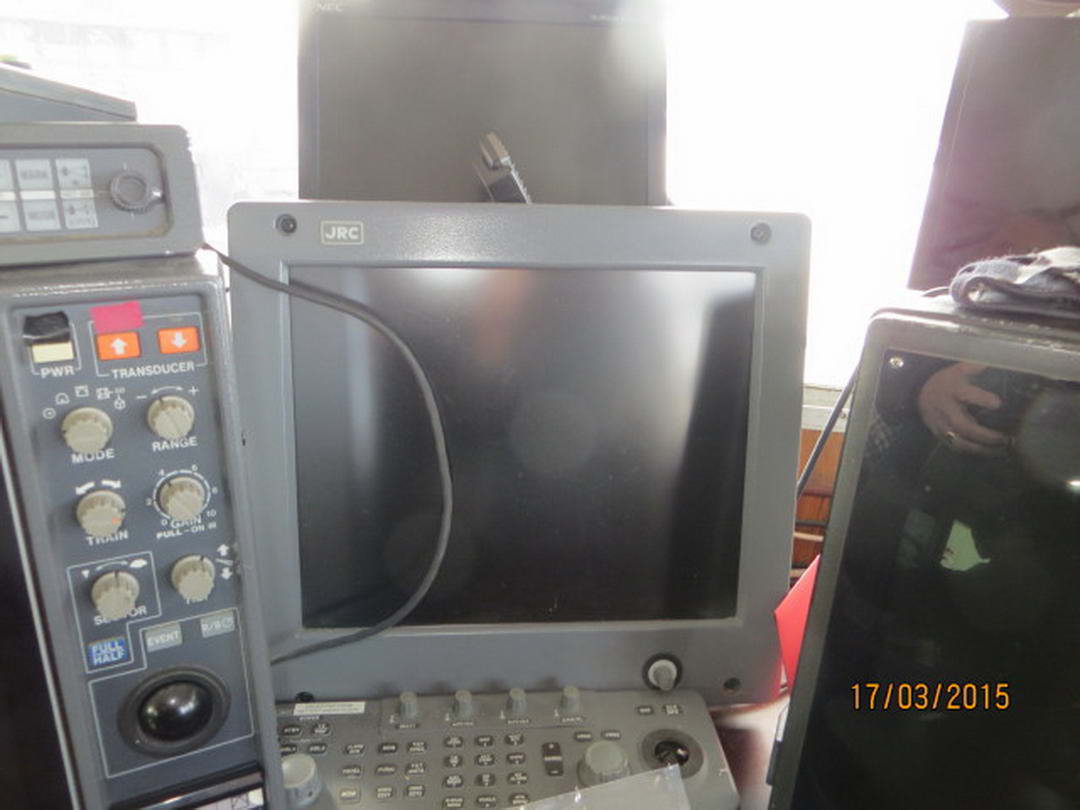

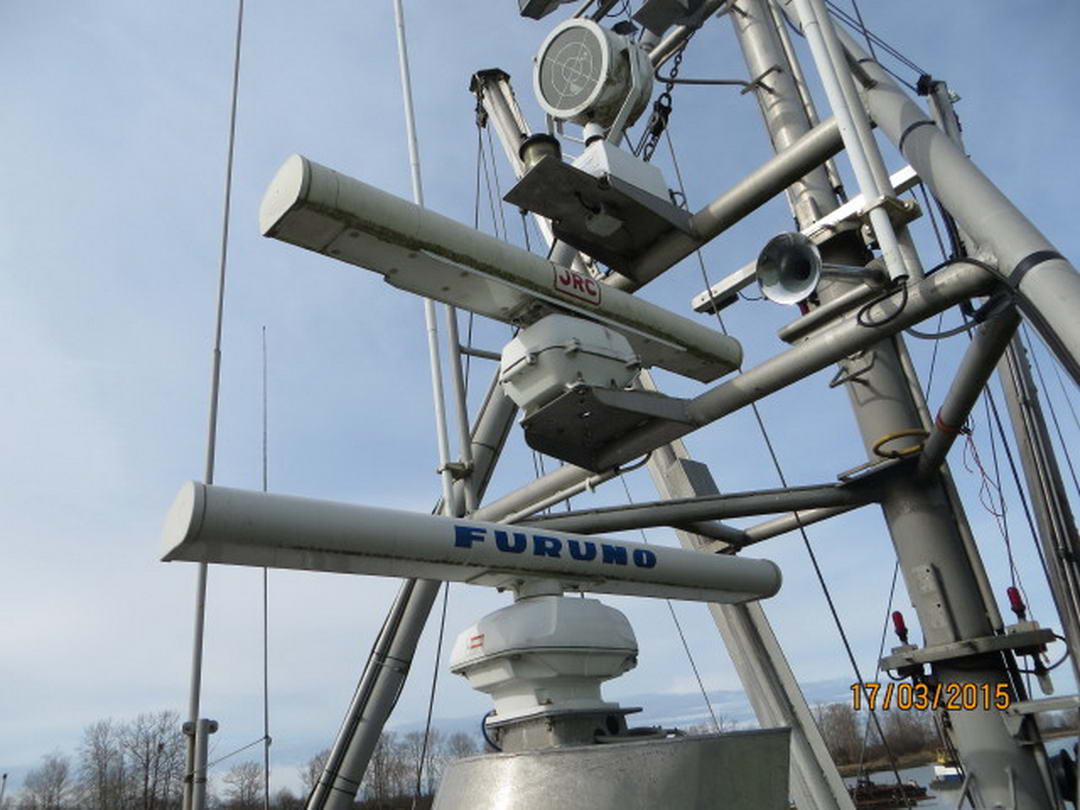

- Radars: Furuno and JRC

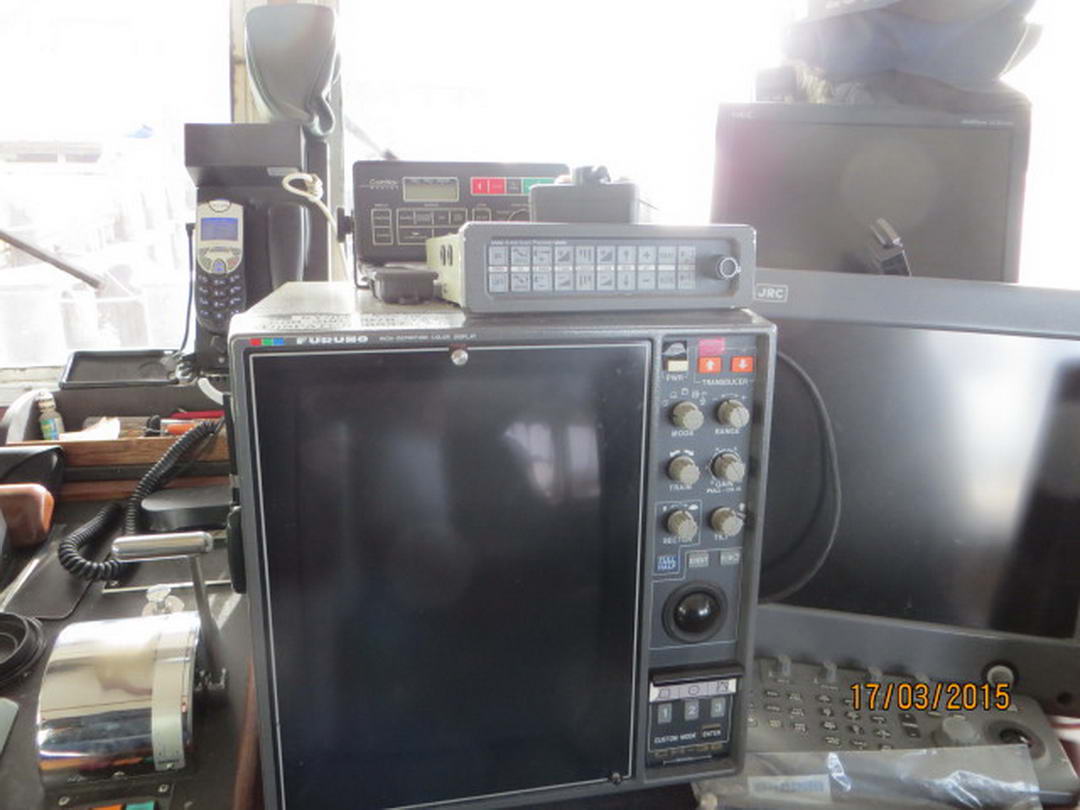

- Sounders: Furuno and Raytheon
- Sonar: Furuno
- Autopilot: ComNav
- Spot light: Halogen flood
- Compass

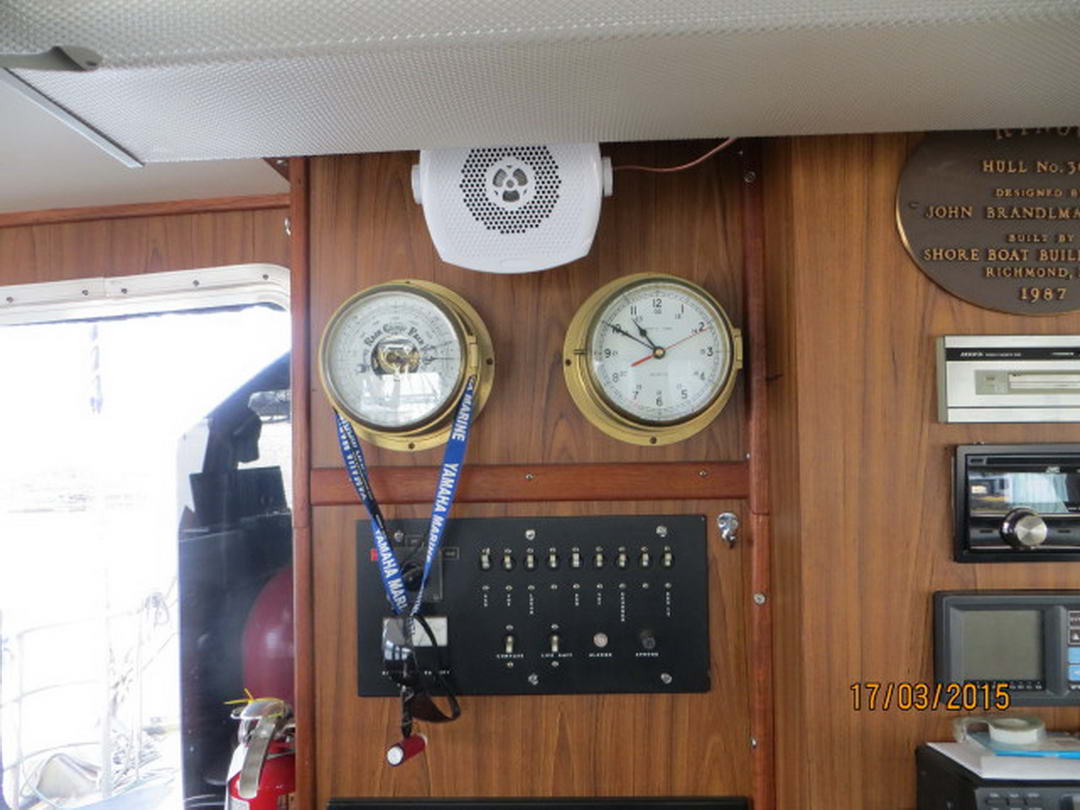

- Barometer
- Batteries: 3 banks with 8D's

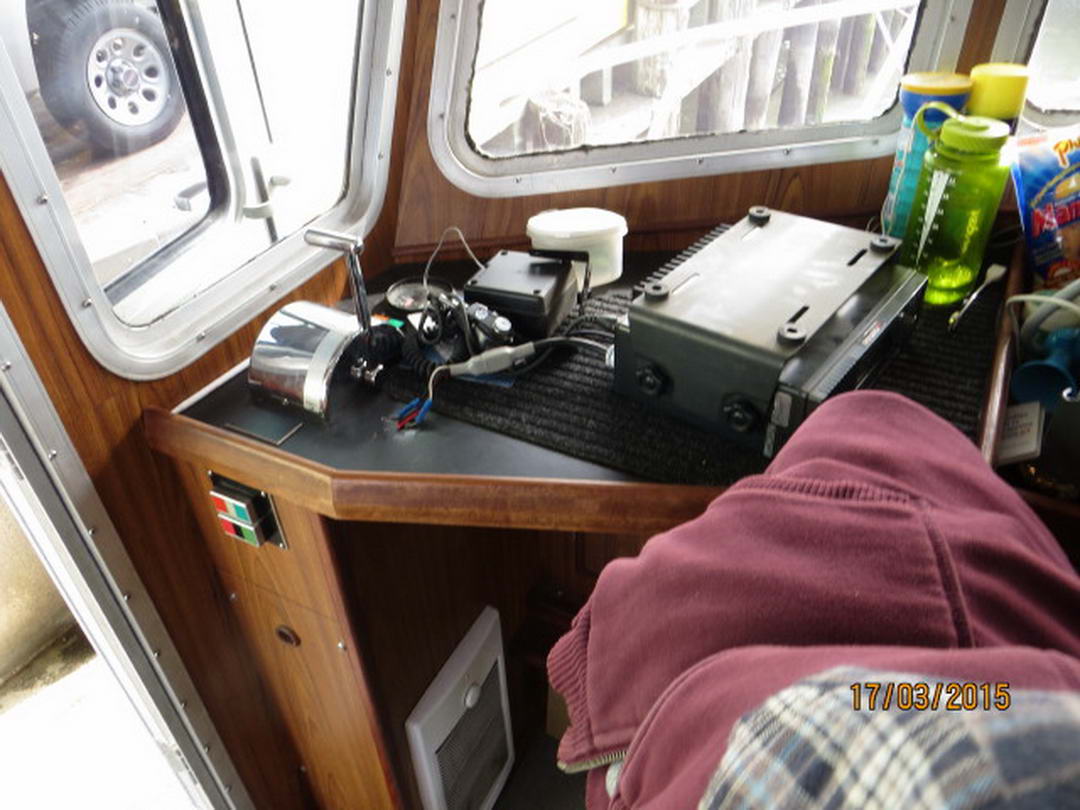

- Steering stations: 2 with jogs
- Controls: Kobelt

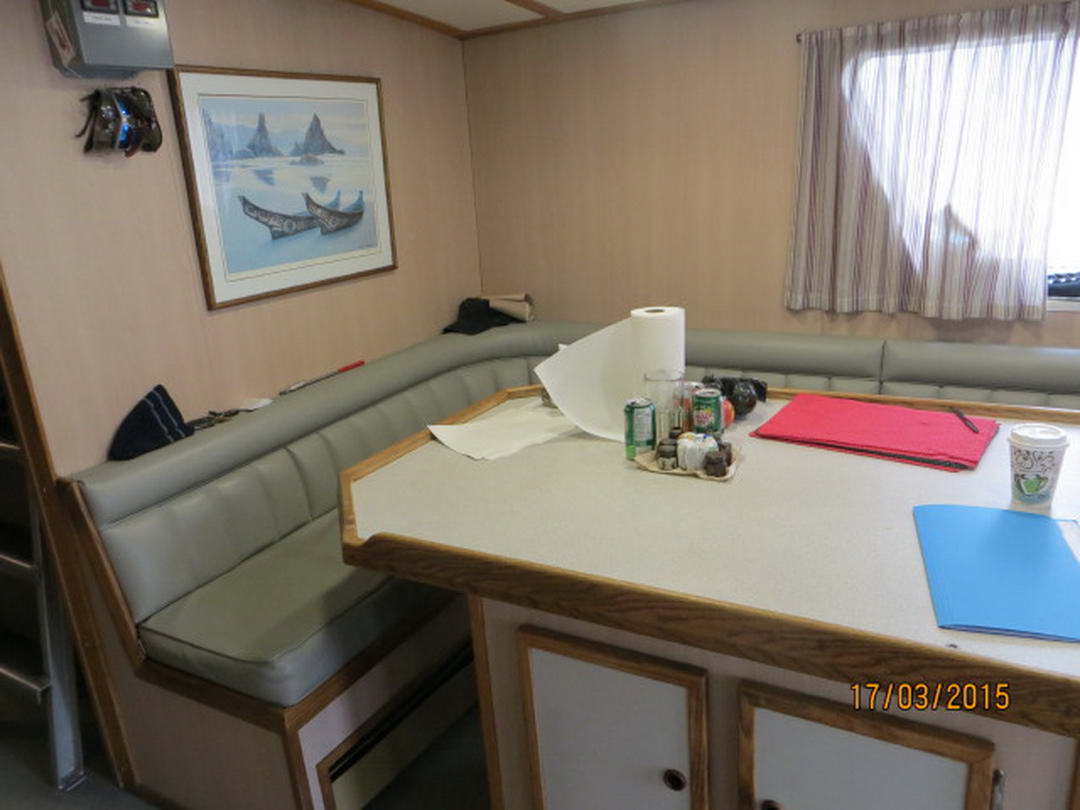

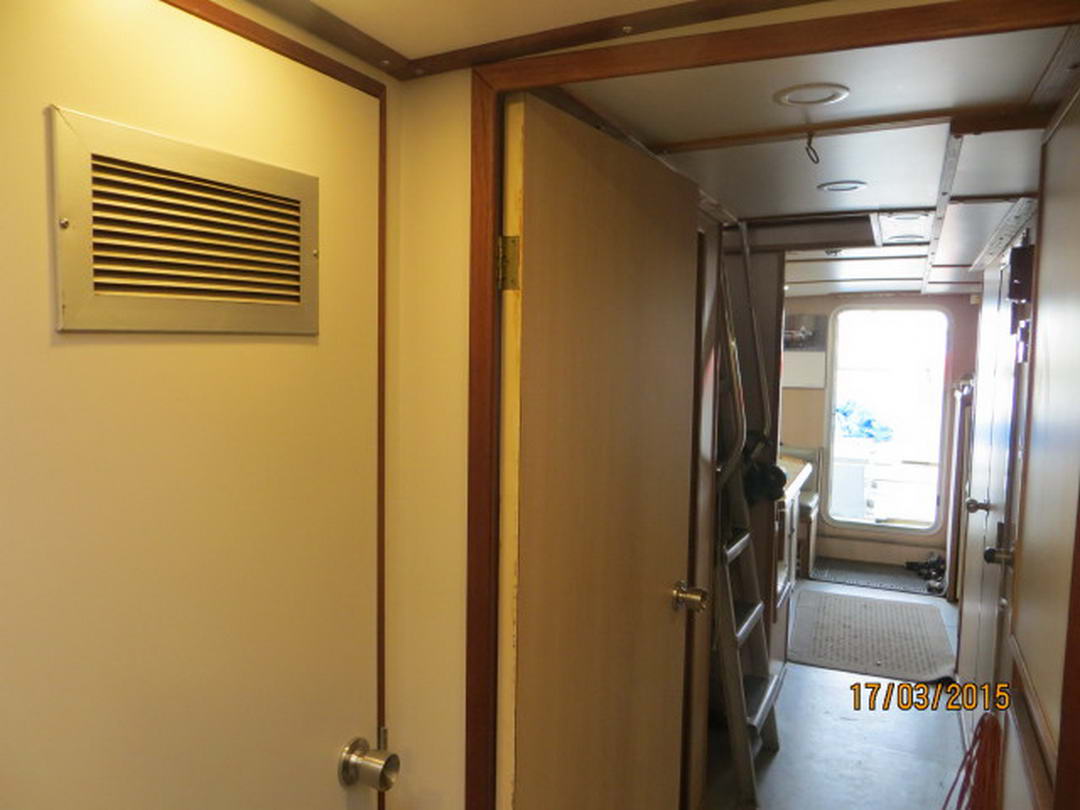

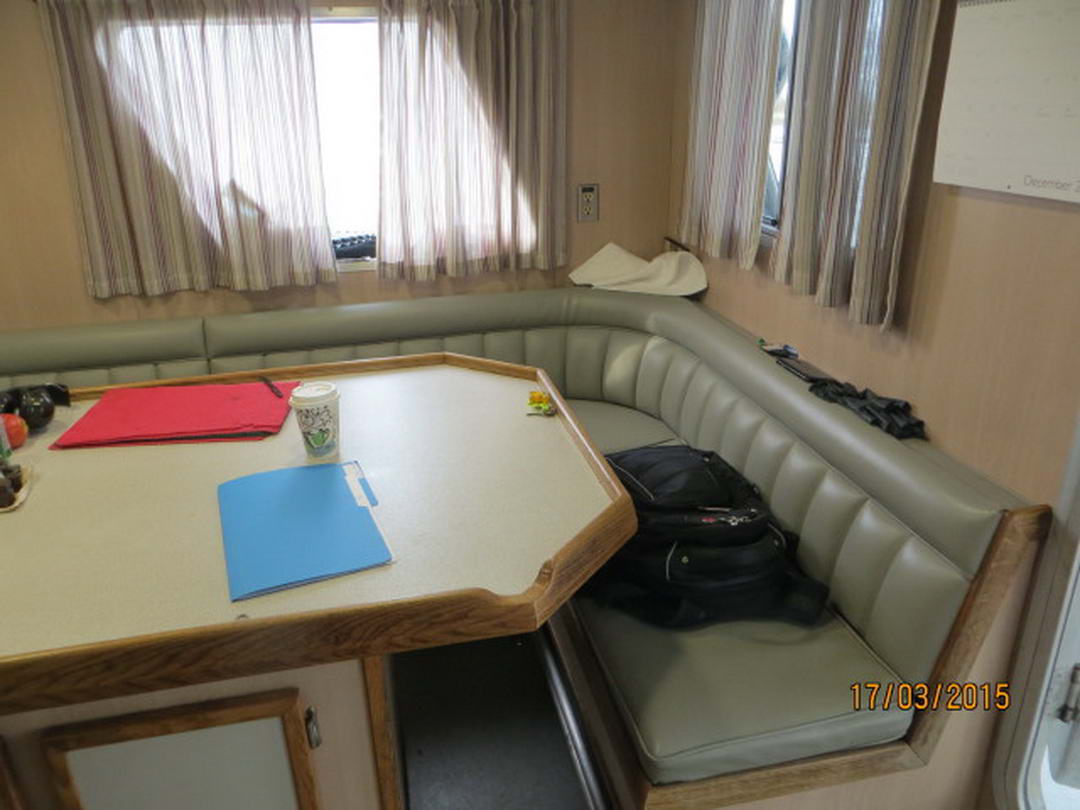

Accommodations

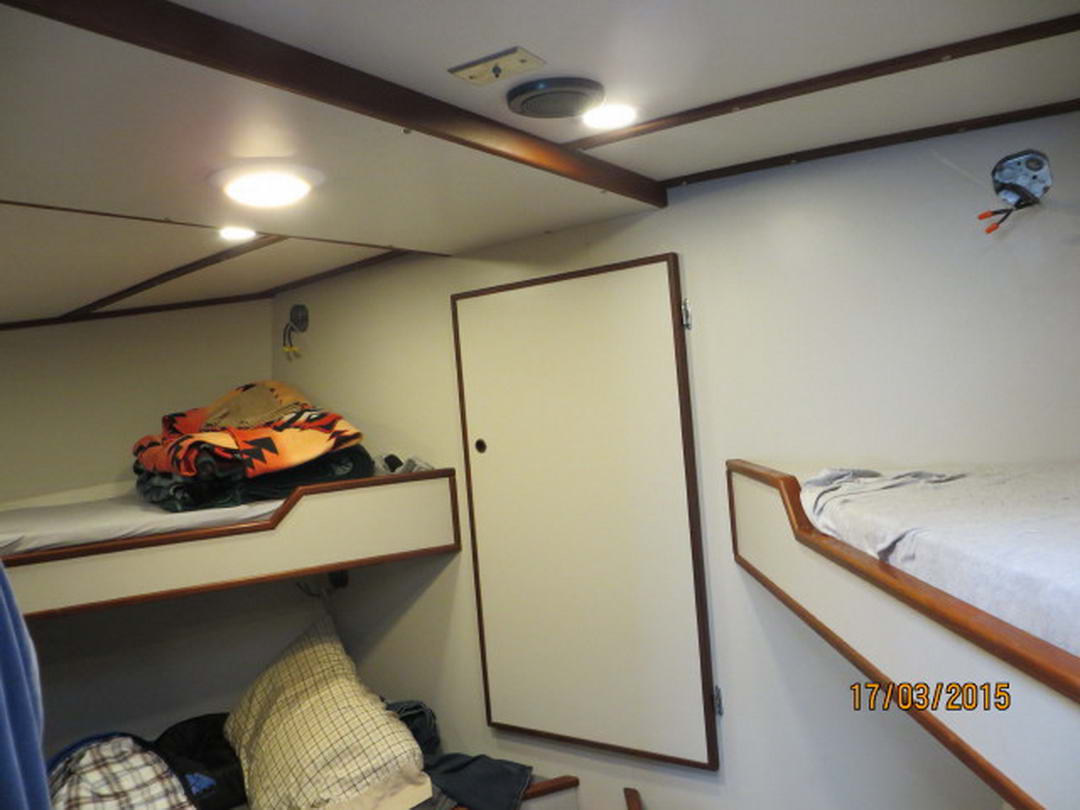

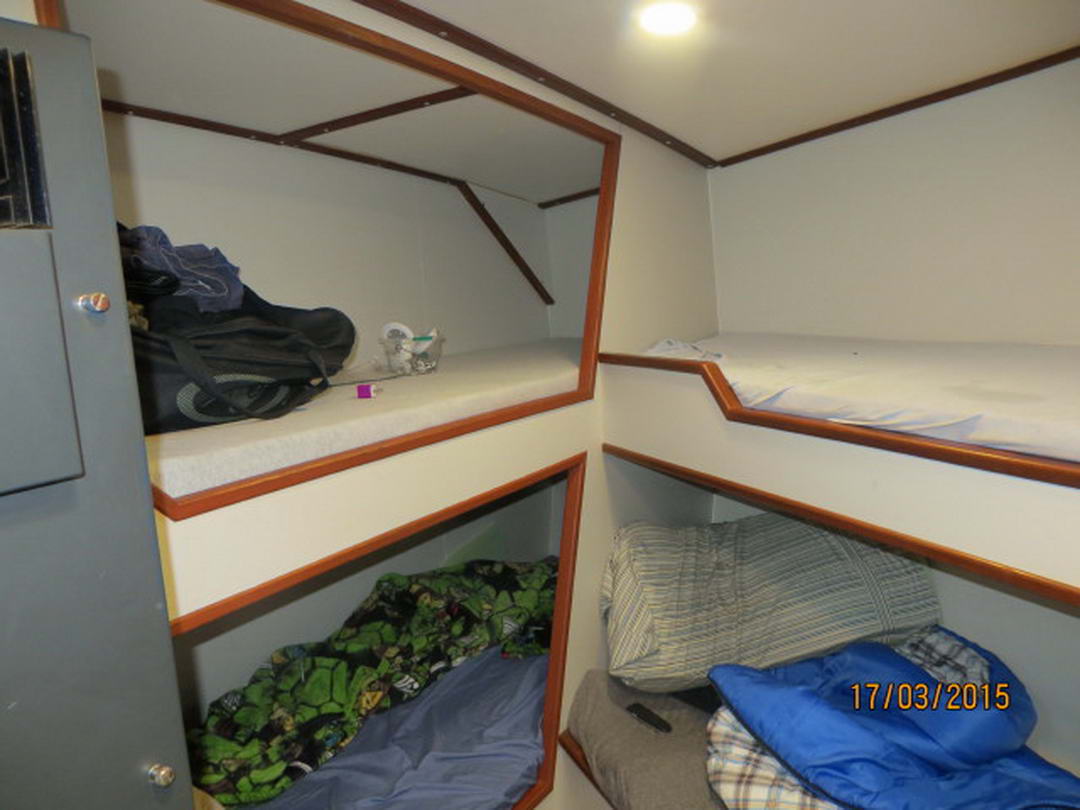

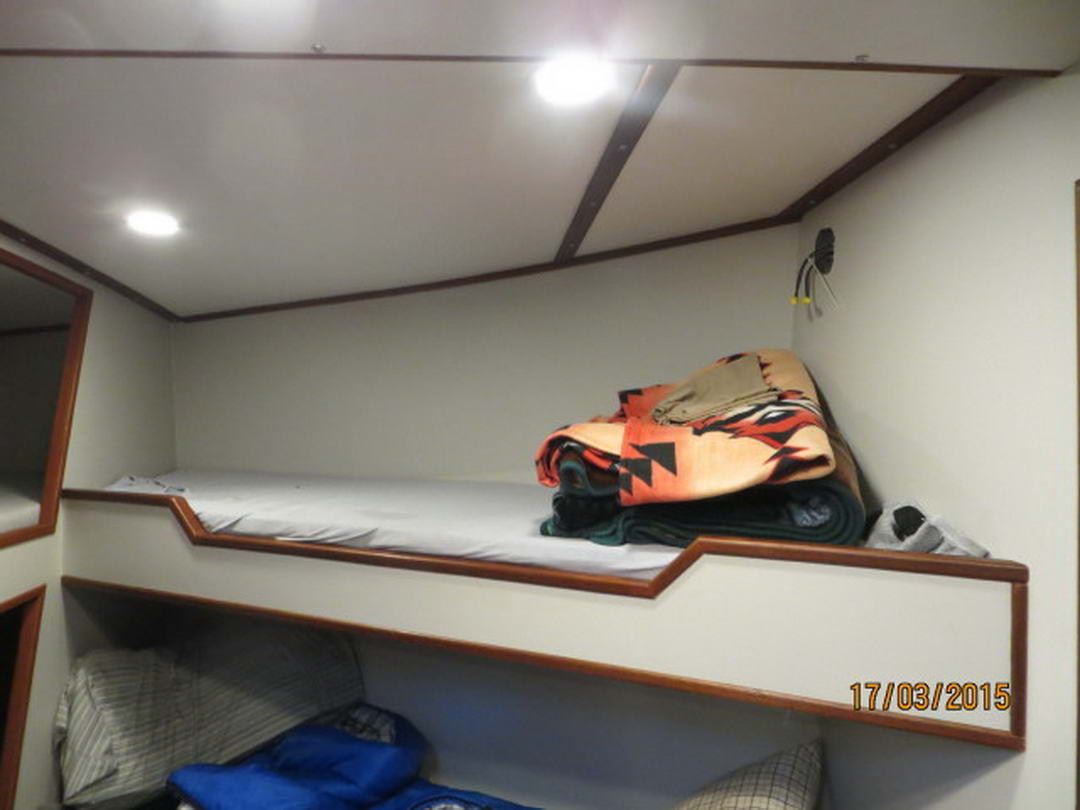

- Sleeps: 7

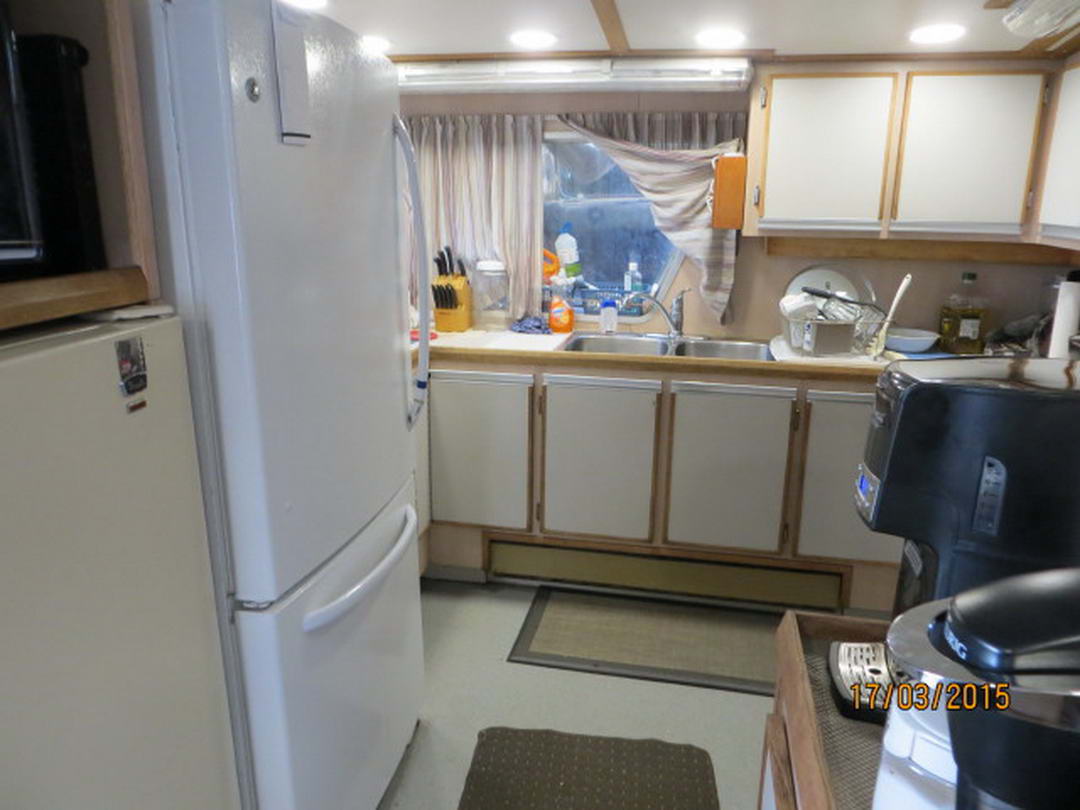

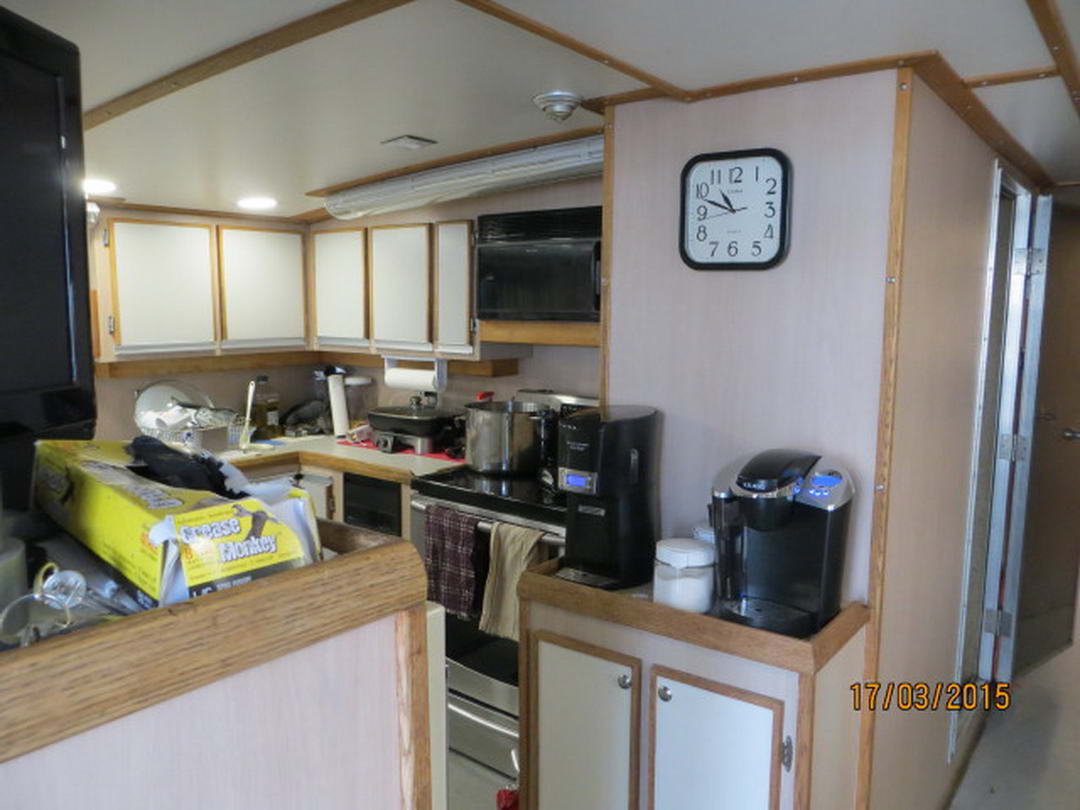

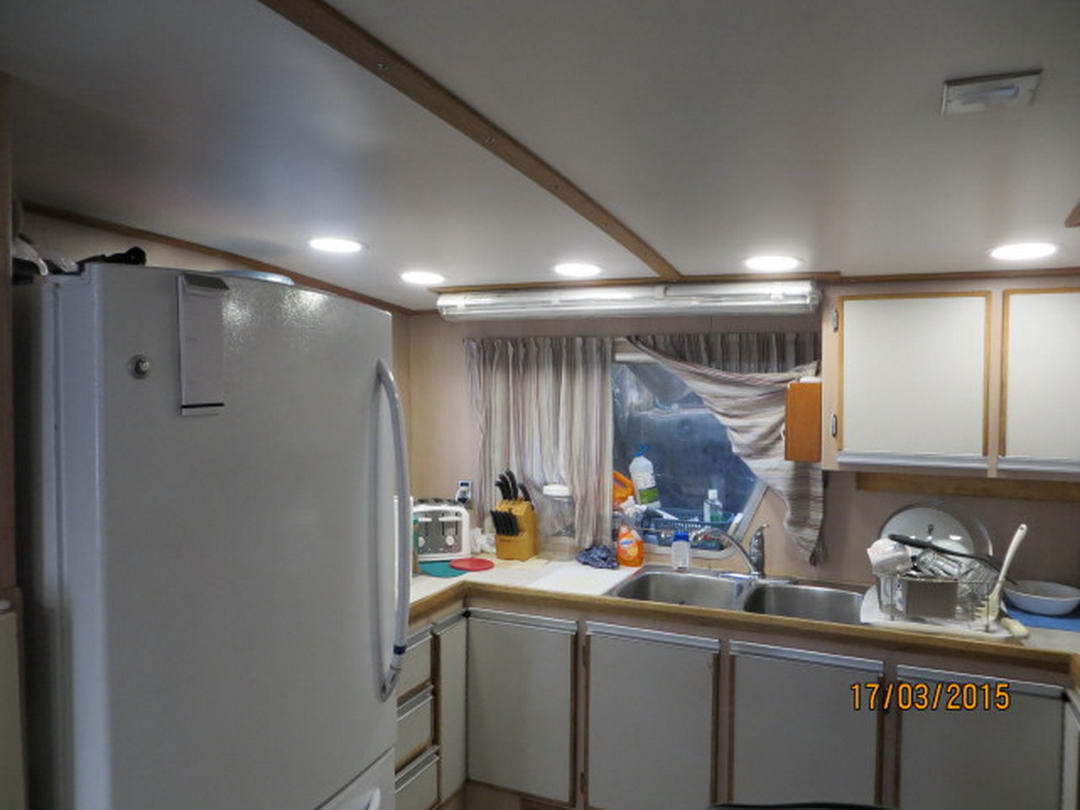

- Stove: Domestic electric
- Fridge/Freezer: Domestic
- Galley sink: Double stainless steel
- Water tanks: Aluminum, 2000 gallons total
- Head
- Shower
- Hot water: Electric
- Heating: Base forced air
