Discovery Dawn
Discovery DawnStock # LS5894
Vessel Only:
Reduced to $855,000(CAD)
Reduced to (USD)Licence Only (T) : $70,000(CAD)
Package Price:
Reduced to $925,000(CAD)Dimensions: 76' x 20'
Year: 1979
Manufacturer: John Manly
Engine: 520 hp 3412 CAT Inboard
Hull: Steel
Licence: T

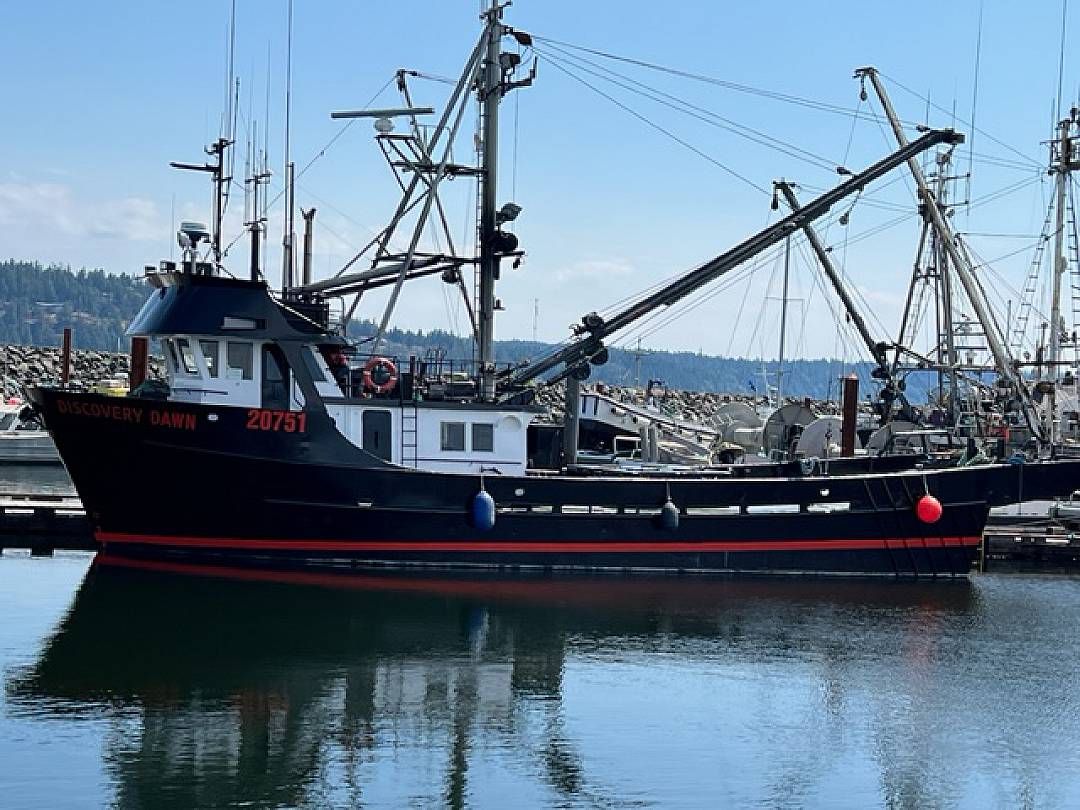

Built in 1979 by John Manly, this superbly maintained 76ft steel vessel offers versatility for various purposes. It serves as a multi-purpose RSW vessel suitable for roles such as Seiner, Tender/Packer, Crab, Longliner, or Trawler. With the existing 70 KW generator and dual compressors, it can be easily converted for Tuna fishery. Additionally, the vessel is well-equipped for the Squid and Sardine fishery. Optional gear, such as an Oxygen delivery and monitoring system, can be purchased separately to facilitate the transportation of live fish.
Currency data courtesy coinmill.com
Details
Overview
- Built by: John Manly in 1979
- Location: North Vancouver Island
- 76' x 20' x 9'
- Survey
- Licences: T - Trawl
Power
- Engine: 3412 CAT, 520 hp
- Main engine has 10,154 hours.
- Top end of main engine rebuilt - 1431 hours
- Reduction gear: TD MG 5202
- Ratio: 6 1:1
- Cruising speed: 10 knots
- Full speed: 12 Knots
- Fuel tanks: 4, steel, 4050 gallons, lube oil 50 gallons
- Engine alarms and gauges
- Keel cooled

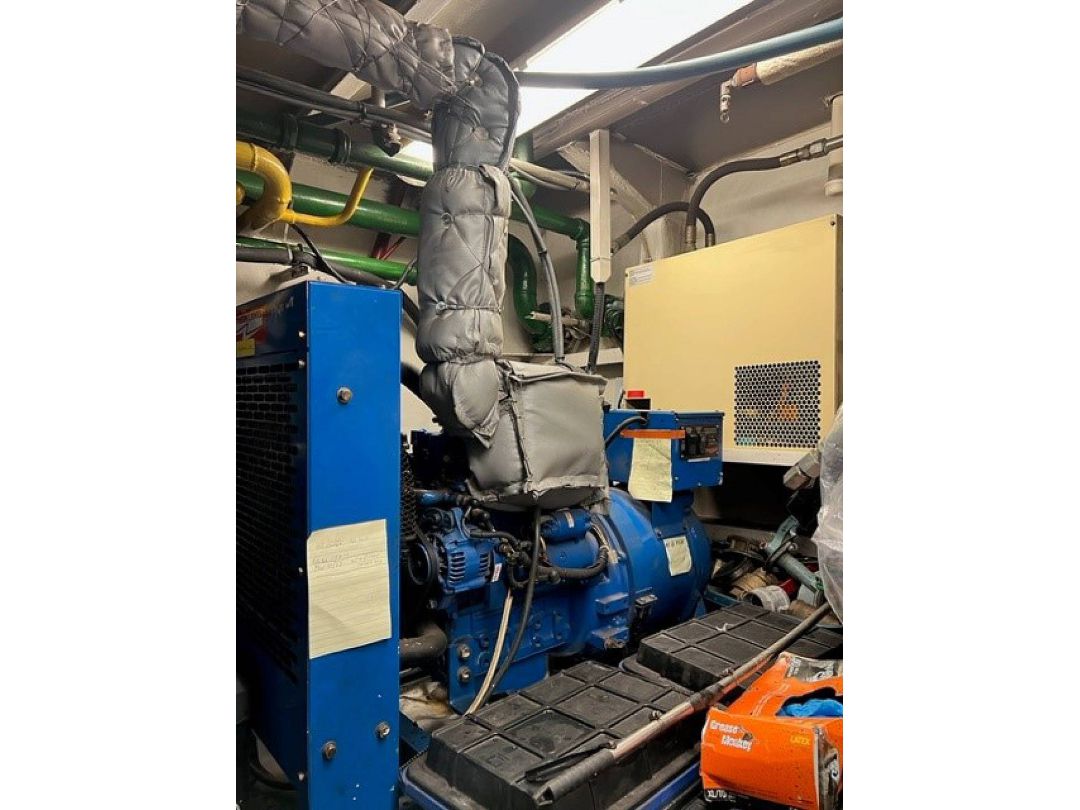

- Genset: 3 Cycle Northern Light 8 KW and Isuzu 4 Cycle 70 KW driving two Carlyle RSW compressors
- Hydraulic Pumps: PTO off main x 3 pumps with 2 hydraulic tanks 350 gallons
- Freezer: RSW, electric drive, x 2 compressors
- Ballast tanks (water) 2 aft 4700 gallons & 1 bow 1000 gallons
- Bilge Pumps
Structural
- Hull: Steel
- Decks: Steel
- Wheelhouse: Aluminum
- Mast: Aluminum
- Holds: Foamed and Fiberglass, capacity for 90 tons ( 2 Fwd + 2 Aft)
- Front hatches have 61 cu/m, back hatches have 52 cu/m, Total - 113 cu/m
- Bow thruster: Hydraulic 24"
- Anchor: Fjord 1 x 500lbs / 1 x 300lbs
- Anchor winches: Hydraulic 120' 3" Chain 480' 3/4 " wire rope
- Drums: large dual drives
- Drum Spooler: Hydraulic
- Winches: 5 winches (Pursing, Topping, Vanging)
Electronics
- GPS: Furuno GP 32 x 2
- VHF: x 4
- SSB: Furuno FS 500
- Computer: Asus with Nobeltec
- Radar: Furuno 70 mile & 24 mile
- Sounder: Furuno & Simard
- Autopilot: ComNav 2001, Auto-remote
- Spot Light
- Compass
- Batteries: 12 V & 32 V
- Inverter: Outback

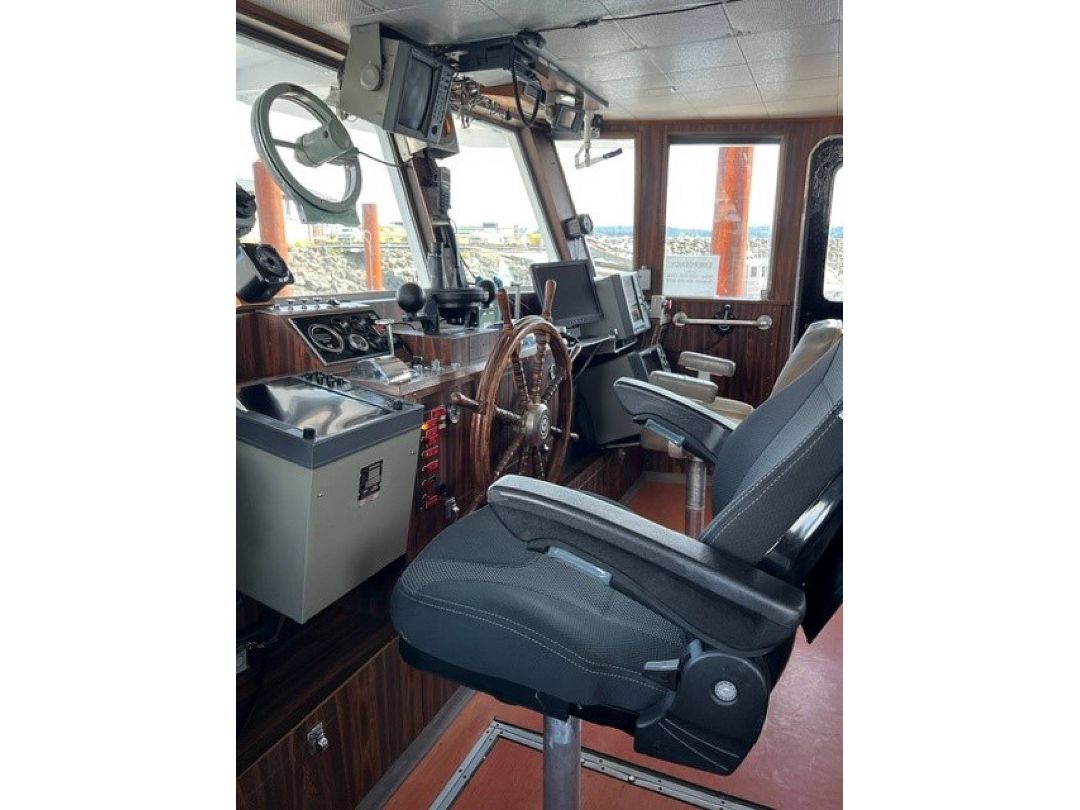

- Steering stations: 2
- Controls: Koblet wire over
